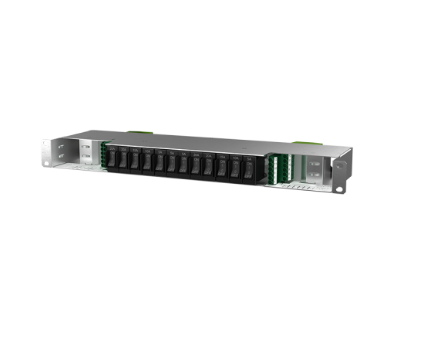

Delta D00001.018 1U 19-Inch 12-Way MCB Distribution Panel
The 1U distribution panel is a standalone unit designed to be used in all applications requiring negative distribution. The compact size and easy connectivity makes these units perfect for applications with limited space or where additional distribution is required. Pluggable breakers with ratings up to 30A ensure flexible, quick and easy output configuration.
Key Features of Delta D00001.018 1U 19-Inch 12-Way MCB Distribution Panel
- Models: 12-Way Distributions - provides twelve individual circuit paths for flexible routing
- Feed Configuration: Single feed - simplifies wiring by using one main supply line
- Part Number: D00001.018 - exact reference for ordering and documentation
- Maximum Voltage (Input): 60 VDC - safe for low-voltage DC applications
- Maximum Current (Input): 100 ADC - handles high current loads without overheating
- Connections: 25 mm² - robust busbars support heavy conductors
- Earth (PE): M6 stud - secure grounding point for safety compliance
- MCB Rating: 12 × B-frame 2-30 A - selectable breakers cover a wide range of current requirements
Specifications
|
𝗠𝗼𝗱𝗲𝗹 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻
|
|
|
Models
|
12-Way Distributions
|
|
Feed Configuration
|
Single feed
|
|
Part Number
|
D00001.018
|
|
𝗜𝗻𝗽𝘂𝘁 𝗗𝗮𝘁𝗮
|
|
|
Maximum Voltage
|
60 VDC
|
|
Maximum Current
|
100 ADC
|
|
Connections
|
25 mm²
|
|
Earth (PE)
|
M6 stud
|
|
𝗢𝘂𝘁𝗽𝘂𝘁 𝗗𝗮𝘁𝗮
|
|
|
Maximum Voltage
|
60 VDC
|
|
Maximum Current
|
100 ADC
|
|
MCB Rating
|
12 x B-frame 2-30 A
|
|
Load Alarm (Diode Matrix)
|
4 mm² screw terminal
|
|
Output Connections
|
4 mm² screw terminals (rear cable entry, front connection)
|
|
𝗢𝘁𝗵𝗲𝗿 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
|
|
|
Insulation
|
0.5 kVDC (output-earth)
|
|
Operating Temperature
|
-10°C to +50°C
|
|
Storage Temperature
|
-40°C to +85°C (long term 10°C to 30°C)
|
|
𝗗𝗲𝘀𝗶𝗴𝗻 𝗦𝘁𝗮𝗻𝗱𝗮𝗿𝗱𝘀
|
|
|
Electrical Safety
|
UL 60950-1, 2nd edition; EN 60950-1, 2nd edition
|
|
EMC
|
ETSI EN 300 386 v1.3.2; ETSI EN 300 386 v1.5.1; EN 61000-6-1 / -2 / -3 / -4; FCC Part 15 Subpart 109; IEC 61326-3-1
|
|
Mains Harmonics
|
EN 61000-3-2
|
|
Environment
|
ETSI EN 300 019-2-1 / -2 / -3
|
