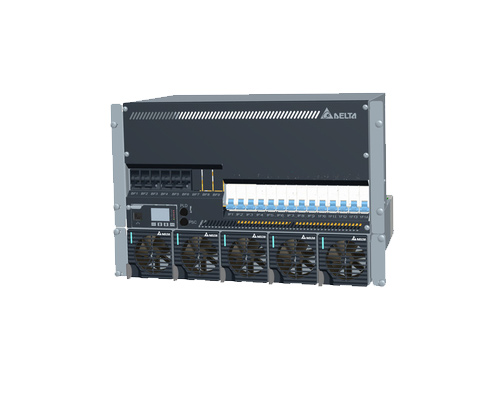

Delta (DPS 4000B-48-5 19IN) DC Power System with Delta
The DPS 4000B-48-5 19IN (CellD 600) belongs to the Delta CellD product series. This high power density system is ideal for space-critical applications. An integrated modular system allows flexible and adaptable installations. The system includes up to six rectifiers, AC and DC connections, battery connection and Delta controller. In addition, easy installation and expandability add to the success of the system. Delta is known for quality and product reliability, and to this solution has been added cost effectiveness.
Key Features
- Three-phase AC input 3 L + N + PE, 88-300 VRMS.
- Nominal output 48 VDC, adjustable 42-58 VDC.
- Maximum power 20 kW at nominal input.
- Multiple MCB options from 1 A to 63 A for flexibility.
- Battery MCB configurations up to 300 A for high-current storage.
- Altitude capability up to 3000 m.
- IP00 standard, optional IP20 for protected environments.
- Compliance with RoHS, IEC/EN 60950 safety, and EN 300 386 EMC standards.
- Low acoustic noise, less than 60 dBA measured at 1 m.
Specifications
| INPUT |
|
| AC Connection |
3L + N + PE |
| Nominal Voltage |
3 x 230VRMS (L-N) |
| Voltage Range |
88 - 300VRMS |
| Frequency Range |
45 - 66Hz |
| Current Nominal / Phase |
(one AC line for two rect. shelves) 37ARMS |
| OUTPUT |
|
| Voltage (nominal) |
54VDC |
| Voltage (default) |
48VDC |
| Voltage (adjustable range) |
42 to 58VDC |
| Maximum Power @ Nominal Input |
20kW |
| MCB |
1 - 14 x 1 - 63A |
| Battery MCB |
1 - 9 x 80 - 100A
1 - 4 x 125 - 200A
1 - 3 x 250 - 300A |
| MECHANICAL |
|
| ENVIRONMENTAL |
|
| Operating Temperature |
-25 to +45 ᵒC (-13 to +113 ᵒF) |
| Altitude |
0-3000m |
| Related Humidity |
95%, non-condensing |
| Acoustic Noise |
≤ 60dBA @ 1m |
| STANDARDS |
|
| Environment |
RoHS |
| Safety |
IEC/EN 60950 |
| EMC |
EN 300 386 |
| Protection |
IP00 or optional IP20 |
