Imagine a telecom site that never loses power, even when the grid flickers. The Delta DPS 6000 Series Three Phase Telecom Power System is built to keep your network alive 24/7. It takes three-phase input and delivers stable -48 VDC for all your equipment. If you have ever faced dropped calls or offline data because of an unstable power source, this system solves that problem and protects your investment.

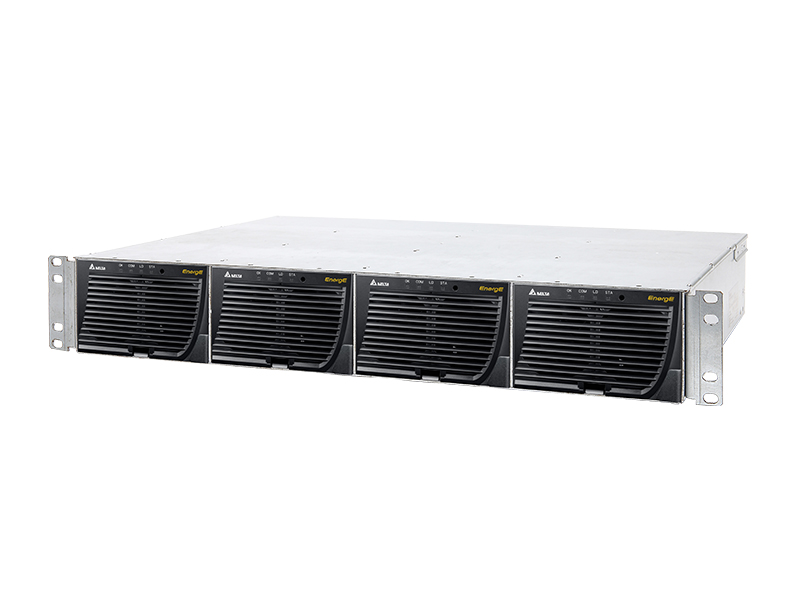

Delta DPS 6000 Series Three Phase Telecom Power System
Telecom operators need a power supply that can handle voltage swings, temperature extremes, and continuous load. Without reliable power, base stations fail, customers lose service, and revenue drops. The DPS 6000 series removes those worries by converting a wide input range (380-480 VAC) into a precise -48 VDC output, while providing up to 24 kW of power. Its robust design meets telecom standards and keeps your network running smoothly.
DPS 6000 series are power systems designed for telecom power or network power. The efficiency of rectifier is up to 96%. The systems monitor status alarms of rectifiers and control output voltage by Delta Controller. All parameters of system are controlled by Delta Controller.
The product is also designed to meet the requirements for usage in 23 in racks or 600 mm wide cabinets.
Key Features
- Three-phase input: 380 VAC L-L, 220 VAC L-N, 5 Wires (L1, L2, L3, N, PE).
- Input voltage range: 380-480 VAC, 50-60 Hz.
- Nominal output: -48 VDC, adjustable -42 to -58 VDC.
- Maximum power: 24 kW at nominal input.
- Dimensions: 529 mm 87.6 mm 400 mm (compact footprint).
- Humidity range: 5 %-95 % non-condensing.
- RoHS compliant, meeting environmental standards.
Specifications
| INPUT |
|
| Voltage (nominal) |
Three phase; VL-L: 380VAC; VL-N: 220VAC; 5W (L1, L2, L3, N, PE) |
| Voltage (range) |
380 - 480VAC |
| Frequency |
50 - 60Hz |
| OUTPUT |
|
| Voltage (nominal) |
-48VDC |
| Voltage (default) |
-53.5VDC |
| Voltage (adjustable range) |
-42 to -58VDC |
| Maximum Power @ nominal Input |
24kW |
| MECHANICAL |
|
| Dimensions (W x H x D) |
529 x 87.6 x 400mm (20.82 x 34.48 x 15.74in) |
| Weight |
approx. 30.6kg (67.46Ib) |
| ENVIRONMENTAL |
|
| Operating Temperature |
-25 to +65 ᵒC (+13 to +149 ᵒF) |
| Storage Temperature |
-25 to +55 ᵒC (-40 to +131 ᵒF), in packaging |
| Altitude |
-80 to +4000m |
| Related Humidity |
5 - 95%, non-condensing |
| STANDARDS |
|
| Environment |
RoHS |
