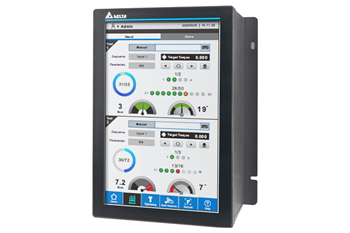

Delta Electronics ASD-SD3 Smart Screwdriving Controller

When you need to drive many screws quickly, manual tools become slow and cause fatigue. Inconsistent torque can lead to stripped heads or loose connections, which hurts product quality and raises rework costs. The Delta Electronics ASD-SD3 Smart Screwdriving Controller automates torque control, records each fastener, and lets you switch between two spindles without stopping the line.

Delta Electronics ASD-SD3 Smart Screwdriving Controller with Delta

Cut your assembly time in half with a controller that thinks like a skilled operator. This device is a compact, touchscreen-driven unit that manages one or two screwdriving tools at the same time. It is built for factories that need precise torque, fast data logging, and easy changeover between products. If you struggle with missed screws, uneven torque, or slow manual adjustments, this controller gives you a clear, reliable solution that keeps your line moving.

Key Features:

• Input voltage 100 ~ 240 VAC for flexible power sources.
• DC bus voltage 38 VDC ensures stable motor performance.
• Rated output current 3.7 A per axis for reliable torque delivery.
• Maximum instantaneous current 15 A for short-burst power needs.
• Power output 100 W (single axis) or 200 W (dual axis) for fast driving.

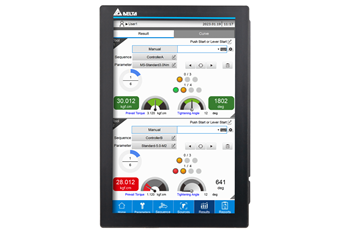

• 10.1-inch touchscreen displays both drivers simultaneously.
• Compact size 200 252 121 mm fits tight workstations.
• Dual-spindle control supports higher efficiency on busy lines.
• Tool alternation and synchronization keep two drivers in perfect step.
• Memory capacity stores up to 200,000 fastening results for full traceability.
