Imagine a factory line that stops because a single sensor cant talk to the controller fast enough. The Delta Electronics HMC-RIO3232RT5 Digital I/O Remote Control Module fixes that. It is a compact, 24 VDC I/O board that lets you read and switch signals from a distance, keeping your machines running smoothly. If you have ever lost production time due to noisy wiring or slow response, this module gives you the reliable link you need.

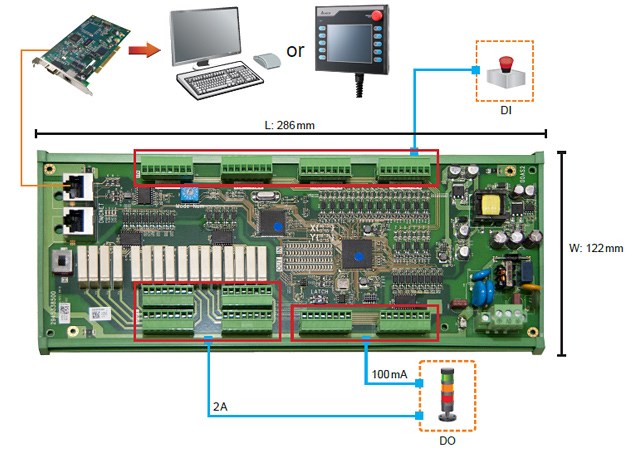

Delta Electronics HMC-RIO3232RT5 Digital I/O Remote Control Module
Industrial plants often struggle with signal loss, interference, and slow switching when they try to control equipment over long cables. Those problems cause downtime, higher maintenance costs, and frustrated operators. The HMC-RIO3232RT5 solves the issue by offering strong noise immunity, fast response times (as low as 0 ms to 3 ms), and both transistor and relay outputs. With a single 24 V supply it can drive up to 2 A on relay contacts, making it a clear, dependable solution for any remote I/O need.
Key Features
- 24 VDC supply with 15 %-20 % tolerance.
- Adjustable input response time from 0 to 3 ms.
- Input action levels: >16.5 V for ON, <5 V for OFF.
- Transistor output: 24 V, 100 mA; Relay output: 24 V, 2 A.
- Maximum switching frequency: 8 kHz for transistor, 1 Hz for relay.
- Output response: 12 s (ON) and 115 s (OFF) for transistor; 10 ms for relay.
- Noise immunity up to 10 V/m RF and 8 kV ESD.
- Vibration compliance to IEC 61131-2, 5 Hz-8.3 Hz continuous.
- Shock resistance up to 15 g for 11 ms in three axes.
- Compact weight of about 460 g for easy mounting.
Specifications
| Model |
HMC-RIO3232RT5 |
| Supply Voltage |
24VDC (15% ~ 20%) |
| Power Consumption |
1.2W |
| Noise Immunity |
RS: Frequency: 80MHz ~ 1GHz, 1.4GHz ~ 2.0GHz,
Test level 10V/m; ESD: Contact discharge ±8KV
Air discharge ±8KV; EFT: ±2KV (Power port), ±2KV (I/O line),
Surge: ±2KV (RIO power port)
|
| Temperature |
Operating: 0°C ~ 55°C (Temperature), 10 ~ 90% (Humidity);
Storage: -20°C ~ 60°C (Temperature), 10 ~ 90% (Humidity)
|
| Vibration |
IEC 61131-2 compliant 5Hz ~ 8.3Hz =
Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g
|
| Shock |
IEC 60068-2-27 compliant 15g peak for 11 ms duration X, Y, Z directions for 6 times |
| Weight |
Approx. 460g |
| Input Signal Type |
SINK / SOURCE |
| Input Signal Voltage |
24Vdc (5mA) |
| Input Response Time |
0 to 3ms, adjustable |
| Input Action Level |
(OFF -> ON): >16.5Vdc; (ON -> OFF): <5Vdc |
| Output Circuit Type |
Transistor / Relay |
| Output Voltage Specifications |
24Vdc (-10% ~ +15%) / <250Vac (Relay Only) |
| Output Current Specifications |
100mA / 1 Point (Transistor), 2A / 1 Point (Relay), Resistive Load |
| Maximum Switching Frequency |
8kHz (TR) / 1Hz (RELAY) |
| Output Response Time |
TR: (ON -> OFF): 115µs, (OFF -> ON): 12µs; RELAY: (ON -> OFF): 10ms, (OFF -> ON): 10ms |
