Looking for a reliable power source that fits tight spaces and never lets your device drop? The Delta Electronics PMC-05V015W1AA, 15W 3A Output Current, Power Supply is a compact panel-mount unit that delivers steady 5 V power to small electronics. If you have ever struggled with unstable voltage or overheating adapters, this supply solves those issues with efficient design and built-in protection.

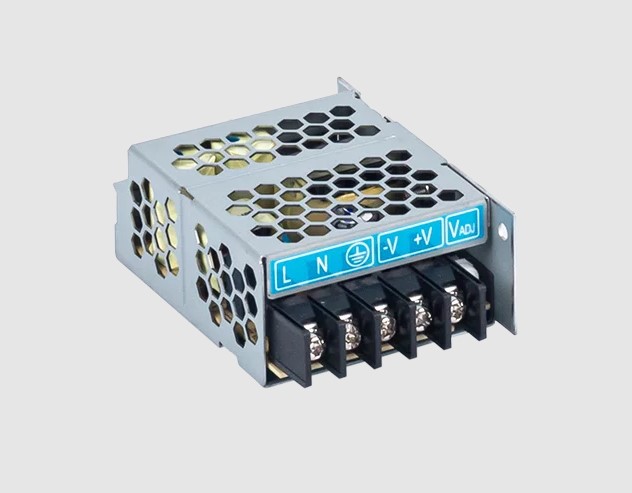

Delta Electronics PMC-05V015W1AA, 15W 3A Output Current, Power Supply
Many hobby projects and industrial panels need a low-profile, high-efficiency source that can handle 100-240 V input worldwide. Without a proper supply, circuits can flicker, overheat, or fail completely, causing downtime and extra cost. This Delta unit provides a fixed 5 V output with up to 3 A, keeping your devices stable while meeting safety standards. It is built for long life and easy mounting.
Key Features
- 15 W output power, 5 V 0.5 % regulation.
- Rated output current 3 A, adjustable 4.5-5.5 V.
- Input voltage 100-240 Vac, 85-264 Vac range.
- Efficiency >80% at full load, low standby loss.
- Overvoltage, overload, over-temperature, and short-circuit protection.
- Aluminum case with free-air convection cooling.
- Terminal block connection for easy wiring.
- MTBF over 700,000 hours for long-term reliability.
- Meets IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1 safety standards.
- Shock and vibration compliance (IEC 60068-2-27, -2-6).
- EMC Class B (EN 55032) and Class A (IEC/EN 61000-3-2).
Specifications
| General |
|
| Model |
PMC-05V015W1AA |
| Product Type |
Panel Mount Power Supply |
| Output Power |
15 W |
| Rated Output Voltage |
5 VDC |
| Rated Output Current |
3.0 A |
| Dimensions (L × W × H) |
77 × 51 × 28 mm (3.03 × 2.01 × 1.10 in) |
| Unit Weight |
0.16 kg (0.35 lb) |
| Input Ratings / Characteristics |
|
| Nominal Input Voltage |
100–240 Vac |
| Input Voltage Range |
85–264 Vac |
| Nominal Input Frequency |
50–60 Hz |
| Input Frequency Range |
47–63 Hz |
| Nominal DC Input Voltage |
125–250 Vdc |
| DC Input Voltage Range |
125–375 Vdc |
| Input Current |
<0.4 A @ 115 Vac, <0.22 A @ 230 Vac |
| Efficiency at 100% Load |
>80% @ 115 Vac & 230 Vac |
| Max Power Dissipation |
<0.3 W @ 0% load, <3.7 W @ 100% load |
| Max Inrush Current |
<30 A @ 115 Vac, <65 A @ 230 Vac |
| Leakage Current |
<1 mA @ 240 Vac |
| Output Ratings / Characteristics |
|
| Output Voltage Adjustment |
4.5–5.5 V |
| Line Regulation |
±0.5% |
| Load Regulation |
±1.0% |
| Ripple & Noise |
<100 mV |
| Hold-up Time |
>20 ms @ 115 Vac, full load |
| Rise Time |
<50 ms |
| Start-up Time |
<1000 ms |
| Overvoltage Protection |
5.75–6.75 V |
| Overload Protection |
105–160%, Auto Recovery |
| Over Temperature Protection |
Yes |
| Short Circuit Protection |
Continuous, Auto Recovery |
| Mechanical |
|
| Case Material |
Aluminum |
| Cooling Method |
Free Air Convection |
| Connection |
Terminal Block |
| Environmental |
|
| Operating Temperature |
-10 °C to +70 °C |
| Storage Temperature |
-25 °C to +85 °C |
| Operating Humidity |
5–95% RH (Non-condensing) |
| Shock |
IEC 60068-2-27 |
| Vibration |
IEC 60068-2-6 |
| Safety & Compliance |
|
| Safety Standards |
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 |
| EMC |
EN 55032 Class B, IEC/EN 61000-3-2 Class A |
| MTBF |
>700,000 hours (Telcordia SR-332) |
