Many industrial and automation projects need a steady 24 V supply that can handle up to 10 A without flicker or shutdown. When the power source is weak, equipment can stop, data can be lost and repair costs rise. You need a power supply that stays stable, protects against spikes and fits neatly into a control panel. The Delta Electronics PMF-24V240WCGB, 240W 10A Output Current Power Supply gives you exactly that reliable, compact solution.

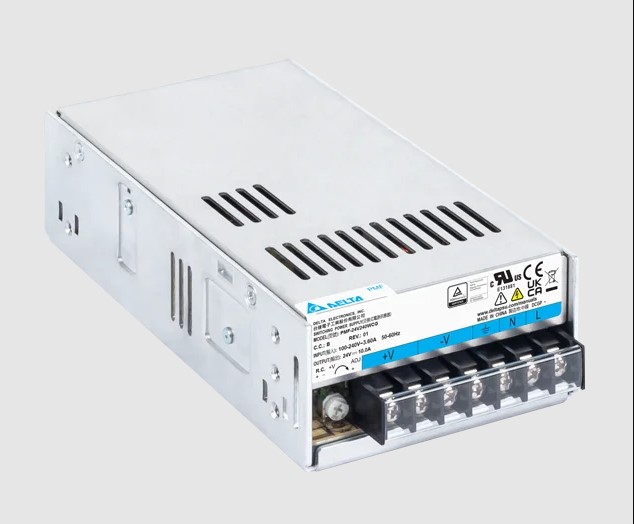

Delta Electronics PMF-24V240WCGB, 240W 10A Output Current Power Supply with Delta
Get power you can trust. This unit is a 240 W, 24 V DC panel-mount supply made by Delta, a name known for industrial quality. It delivers up to 10 A, so your PLCs, drives, sensors and lighting stay on even when the load changes quickly. If you have ever faced unexpected resets because of poor voltage, this supply solves the problem with tight regulation, built-in protection and a clear green LED that tells you everything is OK.
Key Features
- 240 W output power with adjustable 21.6-26.4 V range.
- 10 A continuous output current for demanding loads.
- Wide input voltage 85-264 VAC, suitable for global use.
- Forced-air cooling keeps temperature low in tight panels.
- Over-voltage, overload, over-temperature and short-circuit protection.
- Remote ON/OFF control via CN102 terminal.
- High reliability with MTBF over 700,000 hours.
- Class I safety design with protective earth.
- Compliance with EN/IEC/UL, CE, UL/cUL and other major standards.
- Operating temperature from -10 C to +70 C, shock and vibration resistant.
Specifications
| General |
|
| Model |
PMF-24V240WCGB |
| Product Type |
Panel Mount Power Supply |
| Output Power |
240 W |
| Output Voltage |
24 VDC (Adjustable: 21.6–26.4 VDC) |
| Output Current |
10 A |
| Dimensions (L × W × H) |
190 × 93 × 50 mm |
| Weight |
0.66 kg |
| Housing |
Aluminium |
| Cooling |
Forced air cooling |
| Status Indicator |
Green LED (DC OK) |
| Input |
|
| Input Voltage |
85–264 VAC (100–240 VAC nominal) |
| Input Frequency |
47–63 Hz (50–60 Hz nominal) |
| Input Current |
<3.60 A @ 115 VAC, <1.80 A @ 230 VAC |
| Power Factor |
>0.99 @ 115 VAC, >0.95 @ 230 VAC |
| Efficiency |
87.0% (typical @ 230 VAC, full load) |
| Inrush Current |
<35 A @ 115 VAC, <60 A @ 230 VAC |
| Leakage Current |
<0.6 mA @ 240 VAC |
| Output Performance |
|
| Line Regulation |
±0.5% (typical) |
| Load Regulation |
±0.5% (typical) |
| Ripple & Noise (PARD) |
<150 mVpp @ 25 °C, <300 mVpp @ -10 °C |
| Start-up Time |
1200 ms (typical) |
| Hold-up Time |
20 ms (typical) |
| Rise Time |
50 ms (typical) |
| Dynamic Response |
±5% @ 0–100% load |
| Capacitive Load |
Up to 8,000 µF |
| Remote ON/OFF |
Supported (CN102) |
| Protection |
|
| Overvoltage Protection |
27.6–32.4 V (Latch mode) |
| Overload Protection |
105–150%, Auto-recovery (Hiccup mode) |
| Over Temperature Protection |
Auto-recovery (Hiccup mode) |
| Short Circuit Protection |
Auto-recovery (Hiccup mode) |
| Protection Class |
Class I (Protective Earth) |
| Environmental |
|
| Operating Temperature |
-10 °C to +70 °C (Cold start: -20 °C) |
| Storage Temperature |
-25 °C to +85 °C |
| Operating Humidity |
10–95% RH (Non-condensing) |
| Operating Altitude |
Up to 5,000 m |
| Power Derating |
Above 50 °C: 2.5%/°C; Below 100 VAC: 1.33%/V |
| Shock Resistance |
IEC 60068-2-27, 50 G, 11 ms |
| Vibration Resistance |
IEC 60068-2-6, 5–500 Hz, 2.09 Grms |
| Pollution Degree |
2 |
| Reliability |
|
| MTBF |
>700,000 hours (Telcordia SR-332) |
| Expected Capacitor Life |
10 years (50% load @ 40 °C) |
| Safety & Compliance |
|
| Safety Standards |
EN/IEC/UL 60950-1, EN/IEC/UL 62368-1, CSA C22.2, BIS, CCC |
| EMC Standards |
CISPR 32 Class B, EN 55032 Class B, FCC Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 |
| Isolation Voltage |
Input–Output: 3.0 kVAC · Input–Ground: 2.0 kVAC · Output–Ground: 0.5 kVAC |
| Certifications |
CE, UKCA, TÜV, UL/cUL, CB, BIS, CCC |
