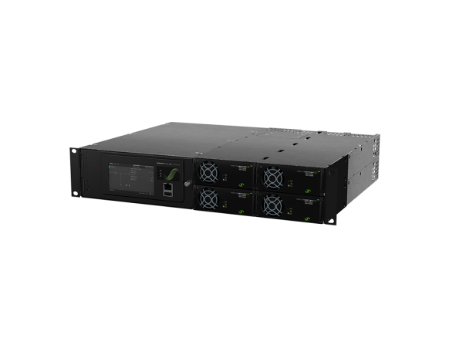

𝗠𝗼𝗱𝗲𝗹 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻
|
|
|
Models
|
8 kW, 230 VAC
|
|
Product Family
|
CIOR0402.1xxx
|
|
𝗔𝗖 𝗢𝘂𝘁𝗽𝘂𝘁 𝗗𝗮𝘁𝗮
|
|
|
Voltage (Default) / (Adjustable Range)
|
230 VAC / 200-240 VAC; 115 VAC / 100-127 VAC
|
|
Frequency (Inverter Mode, Default)
|
50 Hz (adaptive);
|
|
Frequency (Inverter Mode, Settable)
|
50 Hz, 60 Hz or last synced 50 / 60 Hz (adaptive)
|
|
Power Maximum (Continuous / Overload <15s)
|
4800 W (6000 VA) / 8000 VA
|
|
Current Maximum (Continuous / Overload <15s)
|
26 ARMS / 34,8 ARMS
|
|
Current Maximum Quick Trip (20 ms)
|
128 A (6 x nominal)
|
|
Hold Up (Voltage Dips Before Switching to Battery)
|
5 ms
|
|
THD
|
< 1,5 % at resistive load
|
|
Protection
|
Fuse in L, Hot pluggable, Varistor
|
|
𝗗𝗖 𝗢𝘂𝘁𝗽𝘂𝘁 𝗗𝗮𝘁𝗮
|
|
|
Voltage (Default) / (Adjustable Range)
|
245 VDC / 194-290 VDC
|
|
Power (Maximum at Nominal Input)
|
4800 W
|
|
Current (Maximum at VOUT ≤ 108 VDC)
|
22,2 A
|
|
Current Sharing (10-100% Load)
|
±5 % of maximum current from 10 to 100 % load
|
|
Protection
|
Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse
|
|
𝗜𝗻𝗽𝘂𝘁 𝗗𝗮𝘁𝗮
|
|
|
AC Mains Input Voltage (Range / LV Disconnect)
|
185-275 VAC / 170 VAC
|
|
AC Current (Maximum, Depends on Module Type)
|
32,8-46 ARMS
|
|
Frequency (Default, Sync Range)
|
47-53 & 57-63 Hz
|
|
Frequency (Settable, Sync Range)
|
47-53 Hz, 57-63 Hz or both (adaptive)
|
|
Power Factor / THD
|
> 0,99 at 50% load or more / < 3,5 %
|
|
DC Voltage (Nominal / Extended Range) ⁴
|
204-290 VDC / 180-204 VDC
|
|
DC Current (Maximum)
|
26,7 A / 36 A during overload (15 s)
|
|
Input Features
|
Fuse in L and N, Hot pluggable, Varistor
|
|
AC Input Connection
|
Individual screw terminals, 4 mm² for L, N & PE (4x single phase)
|
|
𝗢𝗽𝘁𝗶𝗼𝗻𝘀
|
|
|
Control and Monitoring (Master Unit)
|
Smartpack2 Touch
|
|
Control and Monitoring (Basic Unit)
|
Smartpack2 Basic Industrial
|
|
Controller
|
CAN node Fleximonitor (with Relay box)
|
|
AC Distribution
|
AC output individual screw terminals, 10 mm² for L, N & PE (1x single phase)
|
|
DC Distribution
|
DC bulk connection on 2x M6 bolt
|
|
𝗢𝘁𝗵𝗲𝗿 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
|
|
|
Efficiency
|
> 96 % (mains mode), > 95 % (inverter mode)
|
|
Operating Temperature
|
-40 to +55 °C (-40 to +131 °F), humidity 5-95 % RH non-condensing
|
|
Storage Temperature
|
-40 to +85 °C (-40 to +185 °F), humidity 0-99 % RH non-condensing
|
|
Dimensions (W x D x H)
|
482 x 440 x 89 mm (2U) (19 x 17,3 x 3,5 inch)
|
|
Weight
|
9,9 kg (21,8 lbs)
|
|
𝗗𝗲𝘀𝗶𝗴𝗻 𝗦𝘁𝗮𝗻𝗱𝗮𝗿𝗱𝘀
|
|
|
Electrical Safety
|
EN 60950-1, EN 62040-1 UPS safety
|
|
EMC
|
ETSI EN 300 386 V2.1.1, FCC CFR 47 Part 15; EN 62040-2; EN 61000-6-1/-2/-3/-4/-5
|
|
Environment
|
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)
|
|
Normal Operating Conditions
|
As per IEC 62040-3:2011 clause 4.2. Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised
|
|
Environmental Compliance
|
RoHS 3 (2015/863/EU) and WEEE (2008/98/EC) compliant
|
