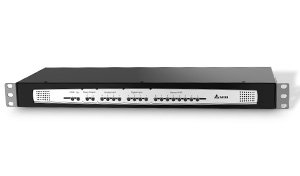

Delta EMS2000 Environment Management System Data Center Unit
Delta’s Environment Management System (EMS) monitors the environment and conditions in the data center, including temperature, humidity, water leakage, and alarms for fire, smoke, and unauthorized entry. The EMS offers IT managers an integrated platform for more convenient monitoring of today’s data center.
EnviroStation integrates the monitoring of the data center’s environment and other conditions, and sends the data to a central manager via network. User-defined alarms ensure the data center’s security.
Benefits & Features
Easy to Manage
Assess and collect key data center information for enhanced management
Real-time notification provides faster management response and more effective operations
Setting manager password for higher security
SNMP allows easy integration with any enterprise management system
Convenience
Monitoring via internet browser
InfraSuite Manager remote monitoring software provides prompt handling of any data center situation
Graphical interface and historical data records for more effective management
Real-time alarm notifications shortens management response time
Flexibility
Supports SNMP communication protocol
Sets each alarm value based on actual requirements
Specifications
| Model |
EMS2000 |
| Input Power |
100~240 Vac, 50/60 Hz |
| Digital Input |
Wet Contact Signal, Alarm Voltage 5~24 Vdc, 1-9 mA |
| Digital Input |
Dry Contact Signal, Normal: Off (open circuit), Alarm: On (short circuit) |
| Analog Input |
Voltage: 0~10 Vdc, Current: 4~20 mA |
| RTD Range |
0~50°C |
| RTD Accuracy |
± 1°C with 3-wire PT100 |
| Resistance Temperature Detection |
x1, Support 2-wire or 3-wire resistance |
| Leakage Detection |
Voltage < 1 V (alarm signal with S-1 FP leak sensor) |
| Sensor HUB |
For connection with sensor devices, such as smoke detectors, fire detectors, or door sensors, etc. |
| Sensor HUB Output |
+12 V, 0.8 A (max), +24 V, 1.0 A (max) |
| Sensor HUB One Port Limit |
0.6 A |
| Delta Bus |
+12 V, 0.8 A (max) |
| Relay Output |
26 Vdc (max), 0.8 A (max) |
| Warning Light |
x1, Included in the package and can connect to EMS2000 via a Sensor Hub converter through Port 1 or Port 2 |
| Network Connection |
RJ45 (x1), 10/100 Base-T |
| RS485 |
x2, Standard ModBus |
| Console |
x1, Connect to PC via RJ-45 to DB9 cable, cable included |
| Console Configuration Port |
Available for console mode |
| Operating Temperature |
0~45°C |
| Storage Temperature |
-20~60°C |
| Operating Humidity |
0~90% RH (non-condensing) |
| Product Dimensions |
440 x 157 x 44 mm |
| Package Dimensions |
510 x 410 x 150 mm |
| Product Weight |
2.4 kg |
