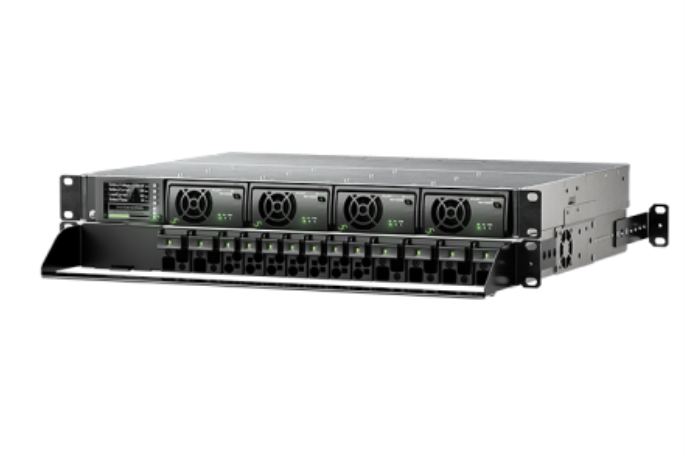

Delta Flatpack D 19'' 12KW Small Power System
The power system provides power density of 12kW within 1U 19” power shelf. The combination with 1U distribution design, power density and reliability makes the Flatpack D Small a product family that stands out and provides unparalleled network availability and power output.
The 1U distribution is designed to meet the demand for compact and flexible DC power solutions. Its highly configurable design is based on building blocks and offers a variety of configurations. The front connection battery and load breakers ensures easy configurability as well as “in field” replacement. Elevate efficiency with our complete system featuring the Orion E or Smartpack S controller, ultra high efficiency rectifiers, and hot-pluggable modules. This compact powerhouse ensures reliable and flexible power solutions, delivering advanced control for streamlined operations.
Key Features
- 12 kW maximum output power.
- -48 VDC output at up to 200 A.
- Input voltage 80-300 VAC, 50/60 Hz.
- Four 30 mm battery breaker positions, up to 250 A LVBD.
- Up to ten 20 mm load breaker positions for flexible distribution.
- Flatpack D rectifier with 98 % efficiency.
- ORION E or Smartpack S control unit with colour display.
- Ethernet remote monitoring via web browser.
- Compliant with IEC/EN 62368-1 safety and EN 300 386 EMC standards.
Specifications
| GENERAL |
|
| Model |
Flatpack D Small 12kW |
| INPUT DATA |
|
| Voltage (range) |
80-300 VAC |
| Mains Frequency |
50 / 60 Hz |
| Mains configuration |
Single input: 1x 3p400 VAC TN / 1x 3p230 VAC IT / 3x 1p230VAC TN |
| OUTPUT DATA |
|
| Voltage |
-48 VDC |
| Load Current (maximum) |
200 A |
| Output Power (maximum) |
12kW |
| BATTERY DISTRIBUTION |
|
| Number of breaker positions |
Up to 4x 30 mm |
| LVBD |
250 A (default) |
| Battery breaker type |
80 – 125 A (30 mm) - Front connection, plug-in type |
| POWER MODULE |
|
| Flatpack D rectifier |
Flatpack D 48/3000 SHE+ 98% |
| LOAD DISTRIBUTION |
|
| Number of breaker positions |
Up to 10x 20 mm or 4x 30 mm + 4x 20 mm |
| PLD |
150 A (optional) |
| Load breaker type |
80 – 125 A (30 mm) and 6 - 63 A (20 mm) - Front connection, plug-in type |
| CONTROL AND MONITORING |
|
| Control and Monitoring unit |
ORION E or Smartpack S |
| Local operation |
Self-explanatory menu guided operation via touch-pad and graphical colour display |
| Remote operation |
Ethernet for remote/local monitoring and control via WEB Browser |
| OTHER SPECIFICATIONS |
|
| Operating temperature |
-40 to +55 °C [-40 to +131 °F] |
| Storage temperature |
-40 to +85 °C [-40 to +185 °F] |
| Relative humidity |
95 %, non-condensing |
| DESIGN STANDARDS |
|
| Electrical safety |
IEC/EN 62368-1:2020/AC:2020/A11:2020 |
| EMC |
EN 300 386 V2.2.1:2020 |
| ENVIRONMENT |
|
| Environment |
ETSI EN 300 019-2-1 (Class 1.2) /-2 (Class 2.3) /-3 (Class 3.2) |
