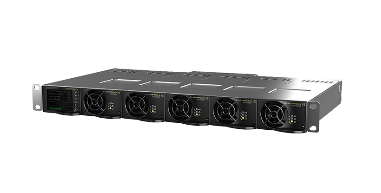

Delta Flatpack S1U Rectifier Power Shelf
The Flatpack S 1U Power Shelves are designed for integration into a power system. It can be used with all Flatpack S rectifiers and meets the markets demand for flexible and expandable power solutions. The combination of power density, efficiency, and reliability makes the Flatpack S family a perfect choice for telecom and industrial applications.
Features
- Compact HE power shelves
- Hot pluggable rectifiers
- FPS 24/1000 HE
- FPS 24/1000 HE SIL3
- FPS 48/1000 HE
- FPS 48/1800 HE
- 270 mm depth
- 1U height
- Flush or mid mount
- AC or DC input
- Floating output: 48 Vdc; 24 Vdc
- Advanced control and monitoring
Specifications
|
𝗜𝗻𝗽𝘂𝘁
|
|
|
Voltage (Nominal)
|
185 - 305 VAC/DC
|
|
Maximum Current (Per Feed)
|
21 Arms
|
|
Maximum Input AC Voltage
|
305 VAC
|
|
Mains Configuration
|
3 × single phase
|
|
𝗗𝗖 𝗢𝘂𝘁𝗽𝘂𝘁
|
|
|
Maximum Current
|
225 ADC
|
|
Maximum Voltage
|
60 VDC
|
|
Connection
|
M6 insert nuts
|
|
𝗢𝘁𝗵𝗲𝗿𝘀
|
|
|
Operating Temperature
|
-40 to 85°C
|
|
Mounting
|
Flush mount or mid mount
|
|
𝗗𝗶𝗺𝗲𝗻𝘀𝗶𝗼𝗻𝘀
|
|
|
Dimensions (W / H / D)
|
19” / 1U / 270 mm
|
|
𝗖𝗲𝗿𝘁𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
|
|
|
Electrical Safety
|
UL 60950-1 2ed, EN 60950-1 2ed
|
|
EMC
|
ETSI EN 300 386 V.1.6.1
EN 61000-6-1 (immunity, light industry)
EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
|
