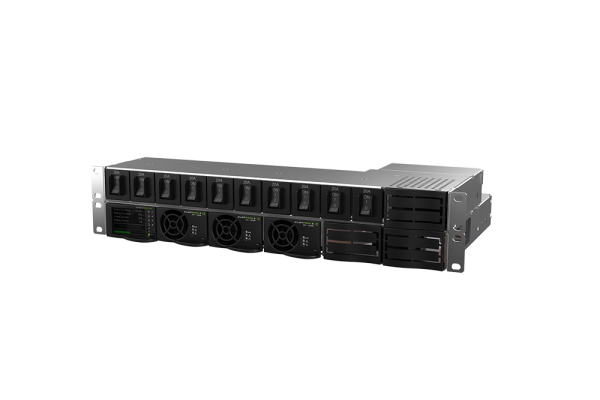

Delta Flatpack S 24V 2U 3R 2-Pole Power System
This small power dense system is purely based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifiers and Smartpack S controller ensures safe, reliable and environmental friendly operation.
With its shallow depth and flexibility the Flatpack S 2U 2-pole system fits most cabinets and is thereby excellent as replacement unit.
Key Features
- Complete system
- Smartpack S controller hot pluggable
- High efficiency rectifiers hot pluggable
- 2-pole battery distribution
- Pluggable breakers
- Optional LVBD
- 2-pole load distribution
- 10x 20A MCB positions
- Pluggable breakers
- Adv. control and monitoring
- Embedded ethernet port
- 260 mm system depth
- Perfect as replacment unit
- 2U height
- Including distribution
- 19” wide
- Fit standard racks and cabinets
- Global approvals
Specifications
| INPUT |
|
| Max Input AC Voltage |
305 VAC |
| Max Input DC Voltage |
300 VDC |
| Mains Configuration |
230 VAC Single phase; 230 VAC 3 phase (Δ); 230/400 VAC 3 phase (Y) |
| OUTPUT |
|
| Current (maximum) |
125 ADC |
| Max Voltage |
24 VDC |
| Max Power |
3 kW |
| BATTERY DISTRIBUTION |
|
| Breaker Positions Up to |
1 |
| Breaker Rating Up to |
100 A |
| LVBD |
Yes |
| LOAD DISTRIBUTION |
|
| Number of Breakers |
10 |
| Breaker Rating Up to |
20 A |
| OTHERS |
|
| Operating Temperature |
-40 to 65°C |
| DIMENSIONS |
|
| Dimensions (W x H x D) |
482.5 x 89 x 250 mm [19 x 3.5 x 9.84 inch] |
| Weight |
7 kg |
| DESIGN STANDARDS |
|
| Ingress Protection (IP) |
20 |
