| GENERAL |
|
| Model |

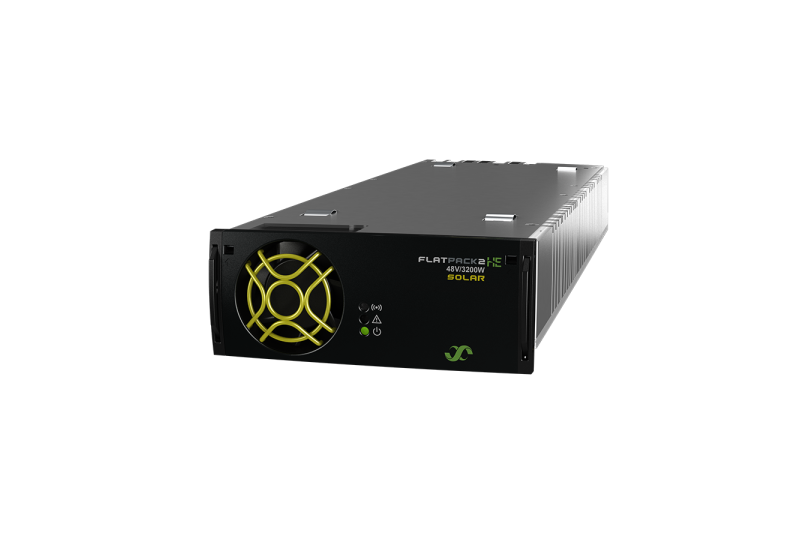

48/3200 HE SOLAR |
| Part number |
241119.650 |
| INPUT DATA |
|
| Voltage (MPPT range) |
100 - 380 VDC |
| Voltage (operating range) |
85 - 430 VDC |
| Voltage (start-up) |
150 VDC |
| Maximum current |
20.3 ADC |
| Protection |
Fuse, varistor for transient protection, reversed polarity, shutdown when Vin is too low, earth fault check during start-up |
| OUTPUT DATA |
|
| Voltage (default) |
53.5 VDC |
| Voltage (adjustable range) |
42 - 57.6 VDC |
| Max power, VIN ≥ 170 VDC |
3200 W |
| Max power, de-rated @VIN = 85 VDC |
1500 W |
| Max current, @VOUT = 48 VDC |
66.7 A |
| Current sharing |
Passive to optimize power available from each string of solar panels |
| Static voltage regulation |
±0.5% from 10 - 100% load and supplied power not limited by PV panels |
| Dynamic voltage regulation |
±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms |
| Ripple |
< 250 mVPP, 30 MHz bandwidth |
| Protection |
Fuse, Overvoltage shutdown, short circuit proof, high temperature, hot plug-in, inrush current limiting |
| OTHER SPECIFICATIONS |
|
| Peak Efficiency |
97 % |
| Isolation |
4.2 kVDC, input and output
2.5 kVDC, input earth
0.5 kVDC, output earth |
| Alarms (Red LED) |
High and low temperature shutdown, Converter Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings (Yellow LED) |
Low input voltage, Converter in power derate mode, Remote current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (Green LED) |
Input and output ok |
| MTBF (Telcordia SR-332 Iss.3 Method II Case L1) |
1 440 000 (@ Tambient: 25°C) |
| Operating temperature |
-40 - 75°C [-40 - 167°F], 5 - 95% RH non-cond. |
| Max output power de-rates above temp / to 45°C |
[+113°F] / 2400 W |
| Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions [W x H x D] / Weight |
109 x 41.0 x 327mm [4.25 x 1.61 x 13”] / < 2 kg [4.4lbs] |
| DESIGN STANDARDS |
|
| Electrical safety |
IEC/EN 62109-1:2010/-2:2011, EN 62368-1:2020+A11:2020, IEC 62368-1:2018UL 62368-1:2019, IEC 60950-1:2013 |
| EMC |
EN 61000-6-1:2016, -6-2:2016, -6-3:2007 + A1:2011, -6-4:2007 + A1:2011IEC 61000-6-5:2015, EN 300 386:v2.1.1, FCC CFR 47 Part 15:2013 |
