| Input Ratings / Characteristics |
|
| Nominal Input Voltage |
100–240 Vac |
| Input Voltage Range |
90–264 Vac |
| Nominal Input Frequency |
50–60 Hz |
| Input Frequency Range |
47–63 Hz |
| Input Current (max) |
6 A |
| Input Surge Voltage (max) |
300 Vac for 100 ms |
| Full load Efficiency (typ.) |
82% @ 115 Vac / 60 Hz
85% @ 230 Vac / 50 Hz |
| Inrush Current (max) |
No damage, cold start |
| Leakage Current (max) |
0.1 mA @ NC0.3 mA @ SFC |
| Output-PE (protective earth) Leakage current for BF application (max) |
0.1 mA @ NC, 0.5 mA @ SFC |
| Power Factor (min) |
0.90 @ 115 V / 50 Hz, 230 V / 50 Hz, full load |
| Output Ratings / Characteristics |
|
| Nominal Output Voltage (V rated) |
+12 V1, +12 V2, +5 V, +3.3 V, +5 Vsb, -5 V, -12 V |
| Output Power |
350W |
| Line Regulation (max) |
±0.5% |
| Start-up Time (max) (Remote On_Off @ TTL Low, then AC applied) |
1000 ms @ 115 Vac |
| Hold-up Time (min) |
17 ms @ 115 Vac / 60 Hz |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) |
±10% @ 50–100% load |
| Rise Time (max) |
20 ms |
| Remote On_Off/INHIBIT |
TTL Active Low: Output Enable
TTL Active High: Output Disable |

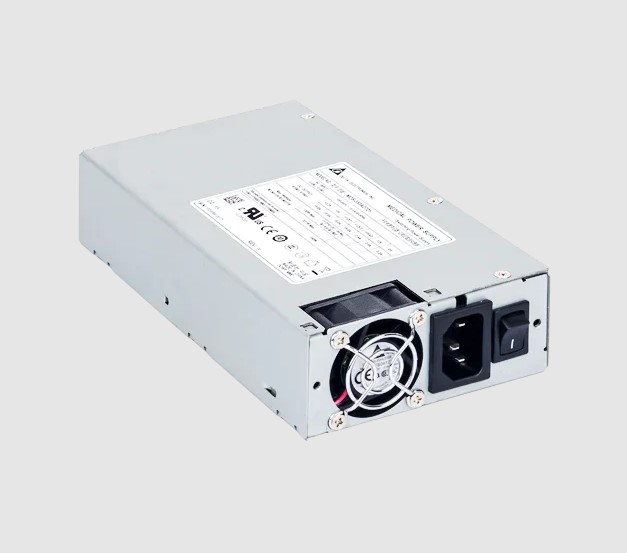

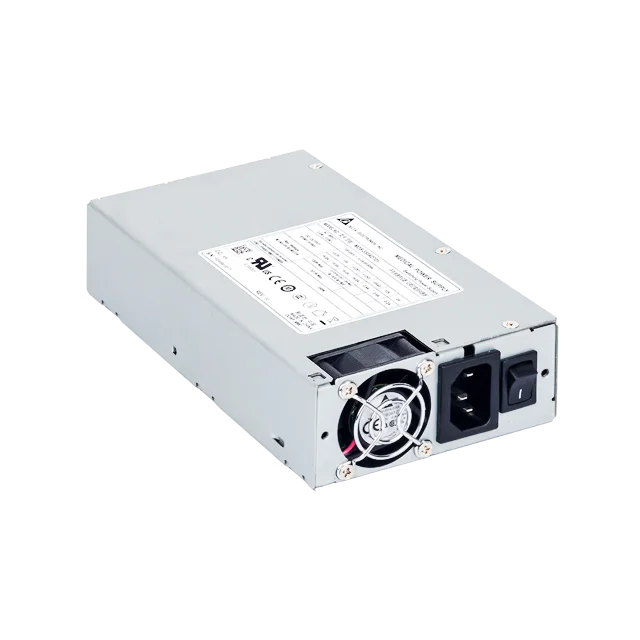

| Mechanical |
|
| Case Chassis |
SECC (Steel, Electrogalvanized, Cold Rolled, Coil) |
| Case Cover |
SECC (Steel, Electrogalvanized, Cold Rolled, Coil) |
| Dimensions (L × W × H) |
194 × 100 × 40.5 mm (7.64 × 3.94 × 1.59 inch) |
| Unit Weight (typ.) |
1.2 kg (2.6 lb) |
| Cooling System |
Forced Cooling |
| Environment |
|
| Surrounding Air Temperature |
Operating: 0 °C to +50 °C
Storage: -40 °C to +85 °C |
| Operating Humidity |
5–95% RH (Non-Condensing) |
| Operating Altitude |
5,000 meters (16,400 feet) |
| Shock Test (Non-Operating) |
50 G, 11 ms, 3 shocks for each direction |
| Vibration (Operating) |
5–500 Hz, 2 Grms, 15 minutes for each of three axes |
| Protections |
|
| Overvoltage |
For +3.3V output, Maximum voltage < 4.8V
For +5V output, Maximum voltage < 7V
For +12V1 & +12V2 outputs, Maximum voltage < 16V
Protection Method: Latch Mode
For +5Vsb output, Maximum voltage < 10V
Protection Method: Latch Mode |
| Overload / Overcurrent |
For +3.3V output, Maximum current < 25A
For +5V output, Maximum current < 25A
For +12V1/+12V2 output, Maximum current < 25A
Protection Method: Latch Mode
For +5Vsb output, Maximum current < 5A
Protection Method: Auto-recovery Mode |
| Over Temperature |
Protection Method: Latch Mode |
| Short Circuit |
+3.3V, +5V, +12V1 and +12V2, Protection Method: Latch Mode+5Vsb
Protection Method: Auto-recovery |
| Reliability |
|
| MTBF |
500 K hrs based on Telecordia SR-332 |
| Expected Cap Life Time |
26,280 hrs |
| Safety |
|
| Electrical Safety |
IEC60950-1 (Ed.2,2005) & IEC 62368-1 CB report |
| CE |
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015 |
| Medical Safety |
IEC 60601-1
EN60601-1
CAN/CSA-C22.2 No. 60601-1
ANSI/AAMI ES60601-1 |
| Galvanic Isolation |
Input to Output (2XMOPP): 4000 Vac
Input to/Ground (1XMOPP): 1500 Vac
Output to/Ground (1XMOPP): 1500 Vac (Type BF application rated) |
| UKCA |
In conformance with Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
Medical Devices Regulations 2002 (UK MDR 2002) |
| EMC |
|
| Emission |
EN/BS EN 55011 & Compliant with EN/BS EN 55032, FCC Title 47: Class B |
| Harmonic Current Emissions |
IEC 61000-3-2: Meet Class D limit |
| Voltage Fluctuation and Flicker |
IEC 61000-3-3 |
| ESD Immunity |
IEC 61000-4-2 |
| Radiated Immunity |
IEC 61000-4-3
IEC 60601-1-2 |
| EFT |
IEC 61000-4-4 |
| Surge |
IEC 61000-4-5 |
| Conducted Immunity |
IEC 61000-4-6 |
| Magnetic Field |
IEC 61000-4-8 |
| Voltage Dips |
IEC 60601-1-2
IEC 61000-4-11 |
