Imagine losing power from your solar panels just when you need it most. The Delta PVC 3000B RenE Photovoltaic Battery Converter stops that worry. It takes the energy your panels create and turns it into steady, usable power for your batteries. If you have ever seen a solar system shut down because of voltage spikes or mismatched battery charge, this converter is the fix you need.

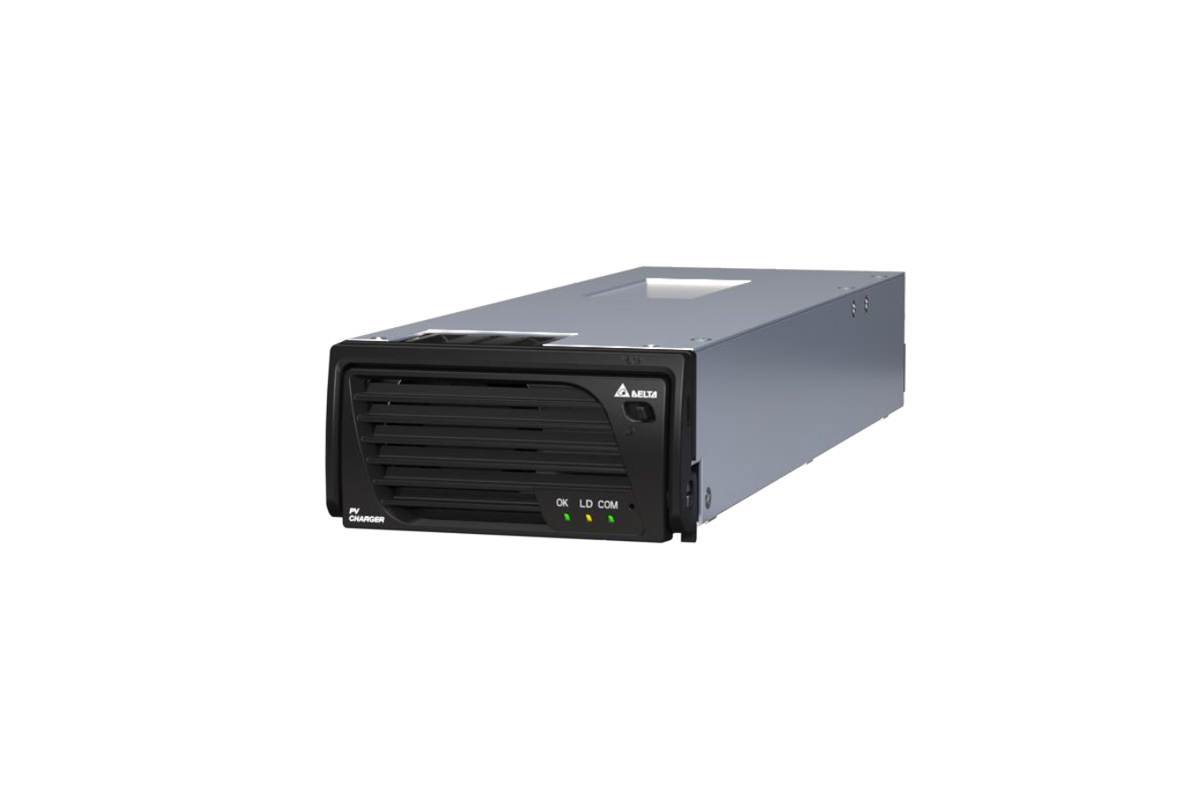

Delta PVC 3000B RenE Photovoltaic Battery Converter
PVC 3000B RenE is the photovoltaic battery converter, and it can help convert the solar energy to -48V power system. PVC 3000B RenE can fit in standalone application and the hybrid power applications, such as genset supply, AC grid, wind energy and fuel cell supply. With the modularity, PVC 3000B RenE can be embed in the power system really easy, not only about the installation, but also the commissioning and the maintenance.
Due to the high efficient MPPT, the operators can reduce CAPEX on solar panel configuration. Furthermore, the wide input voltage range makes the arrangement of panel more flexible. These gorgeous features help operators to reduce the emission of CO₂, and to make the contribution to the environmental protection.
Key Features
- Nominal input voltage 324 VDC, range 50-440 VDC.
- Maximum input current 16.7 A.
- Output voltage adjustable from -42 to -58 VDC.
- Output current 55.05 A at default voltage.
- Static MPPT efficiency 99%
- Load regulation within 300 mV.
- Ripple 200 mV for clean power.
- EN 61000-4-5 lightning protection up to 4 kV line-to-ground.
Specifications
| Model |
PVC3000B |
| P/N |
DCS-48/60A A . 3000W PV Charger |
| INPUT |
|
| Voltage (nominal) |
324 VDC |
| Voltage Range |
50 – 440 VDC (operation)200 – 440 VDC (full power) |
| Max Input Current |
16.7 A |
| Protection |
Lightning EN 61000-4-5, 4kV Line-to-Ground / 2kV Line-to-Line
Reverse polarity connection |
| OUTPUT |
|
| Voltage (default) |
-54.5 VDC |
| Voltage (adjustable range) |
-42 to -58 VDC |
| Output Current |
55.05 A @ default voltage |
| Maximum Power @ nominal Input |
3000 W |
| Power Density |
56.8 W/in³ |
| Static MPPT Efficiency |
≥ 99% (CEC Efficiency)≥ 99% (European Efficiency) |
| Load Regulation |
≤ ± 300 mV |
| Ripple |
≤ 200 mV |
| Protection |
EN 61000-4-5, 2kV Line-to-Line |
| USER INTERFACE |
|
| Alarm and Signaling |
CANbus to System Controller |
| Indications |
OK: Green, Normal Operation
LD: Yellow, Output current < 5%
COM: Green, Communication Status |
| MECHANICAL |
|
| Dimensions (W x H x D) |
84 x 41 x 265 mm (3.30 x 1.61 x 10.43 in) |
| Weight |
1.3 kg (3.0 lb) |
| ENVIRONMENTAL |
|
| Operating Temperature |
-40 to +80ᵒC (40 to +176ᵒF); De-rating above +55ᵒC (131ᵒF) |
| Storage Temperature |
-40 to +80ᵒC (40 to +176ᵒF) |
| Altitude |
0 to +4000 m |
| Related Humidity |
0 – 95% RH non-condensing |
| Acoustic Noise |
≤ 58 dBA |
| STANDARDS |
|
| Safety |
IEC 62109-1 |
| EMC |
EN 55032 DC input Class A and DC output Class A |
| Environment |
RoHS |
| MTBF |
400k hours @25ᵒC (77ᵒF), Telcordia SR-332 |
| Conversion Efficiency |
≥ 96% @ 30% to 90% load |
