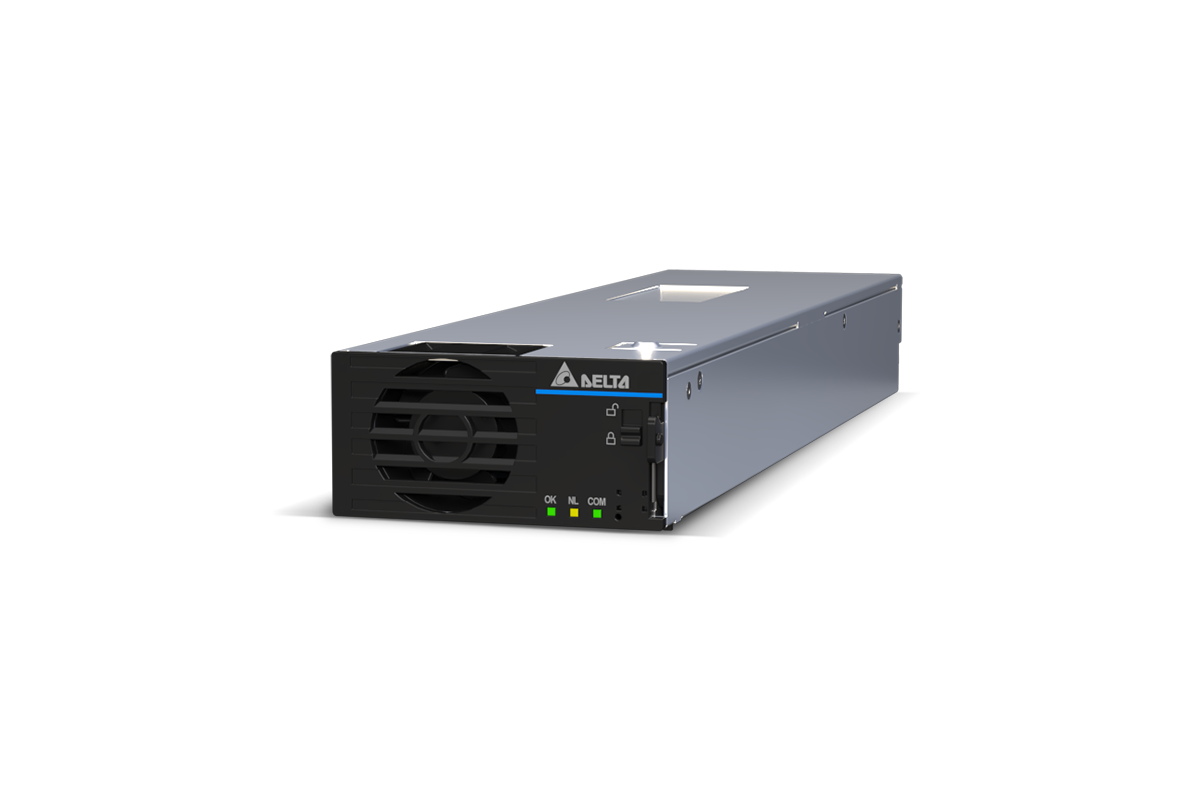

Delta Technology API 2400B-220 Telecom Inverter
Delta's technology leading telecom inverter API 2400B provides the industrial leading efficiency of 95%. The single phase, hot pluggable fan cooled inverter provides the 34.05 W/in³ outstanding power density. Integrated with the high efficiency inverter API 2400B, Delta power solution provides an energy saving solution for network base stations, wireless applications, fixed line applications and data communications.
Key Features
- Input voltage range: 40-58 VDC, nominal 53.5 VDC.
- Maximum output power: 3,000 VA at 45-58 VDC input.
- Adjustable output voltage: 208, 220, 230, or 240 VAC.
- Frequency selection: 50 Hz or 60 Hz.
- Peak efficiency greater than 95 %.
- Overload capacity up to 150 % for short periods.
- Built-in protection: short circuit, over-voltage, high temperature, fan fault.
- Compliance with EN/IEC/UL 62368-1, CE, UKCA, RCM and EMC standards.
Specifications
| INPUT |
|
| Voltage (nominal) |
53.5 VDC |
| Voltage (range) |
40 – 58 VDC |
| Current (normal) |
48 A |
| Current (maximum) |
85 A |
| Input Peak to Peak Ripple Voltage |
≤ 500 mV |
| Input Current Ripple |
≤15% at maximum power |
| DC Offset |
≤ ±100 mV |
| Reverse Polarity Protection |
No damaged |
| Protection |
Internal fuse (100 A) |
| OUTPUT |
|
| Voltage (default) |
220 VAC |
| Voltage (adjustable range) |
208/220/230/240 VAC |
| Frequency |
50/60 Hz |
| Output Current |
10.9 A@ default voltage, Linear load |
| Maximum Power @ nominal Input |
208/220/230 VAC:
2,400 W / 3,000 VA @45 – 58 VDC; 2,000 W / 2,500 VA @40 – 45 VDC
240 VAC:
2,400 W / 3,000 VA @48 – 58 VDC; 2,000 W / 2500 VA @45 – 48 VDC; 1,000 W / 1250 VA @40 – 45 VDC |
| Power Density |
34.05 W/in³ |
| Peak Efficiency |
> 95.0% |
| Crest Factor |
3:1 |
| Total Harmonic Distortion |
Linear Load < 5%; Non-linear Load < 8% |
| Load Regulation |
2.5% |
| Overload Capacity |
105% ~ 125%: 1min; 125% ~ 150%: 10 sec; > 150%: < 1 sec |
| Protection |
Short Circuit; High Temperature; Over Voltage; Overload; Fan Fault |
| Output Voltage Regulation |
±2.5% |
| Output Voltage Drift |
≤ 1% |
| Dynamic Response |
0% ~ 100% ~ 0% R load, recover to 90% of Vout_Nom within 60ms |
| Startup Time |
≤ 30sec |
| USER INTERFACE |
|
| Alarm and Signaling |
CANbus to System Controller |
| Indications |
OK: Green/Red, Normal Operation/Failure alarm
NL: Yellow, Load Status
COM: Green, Communication Status |
| MECHANICAL |
|
| Dimensions (W x H x D) |
85.5 x 41.0 x 330 mm (3.37 x 1.61 x 12.99 inch) |
| Weight |
Approx. 1.6 kg (3.53 lb) |
| ENVIRONMENTAL |
|
| Operating Temperature |
-20 to +75ᵒC (-4 to +167ᵒF) |
| Storage Temperature |
-20 to +80ᵒC (-4 to +176ᵒF) |
| Altitude |
0 to +4000 m |
| Related Humidity |
0 – 95% RH, non-condensing |
| IP Protection |
IP20 |
| STANDARDS |
|
| Safety |
EN/IEC/UL 62368-1, CE, UKCA, RCM |
| EMC |
EN 300 386; EN 55032; EN 55035; CISPR 32 |
| Environment |
RoHS |
| MTBF |
300k hours @ 25ᵒC (+77ᵒF) |
