Tired of overheating equipment and costly downtime? The Delta THD0924HEP6 92mm 24VDC PWM Industrial DC Fan gives you reliable cooling that keeps machines running smooth and safe. This fan is built for industrial gear, power supplies, and enclosures that need strong airflow without sacrificing energy efficiency. If you have struggled with fans that stall, make noise, or fail in harsh environments, this Delta fan solves those problems with robust design and precise PWM control.

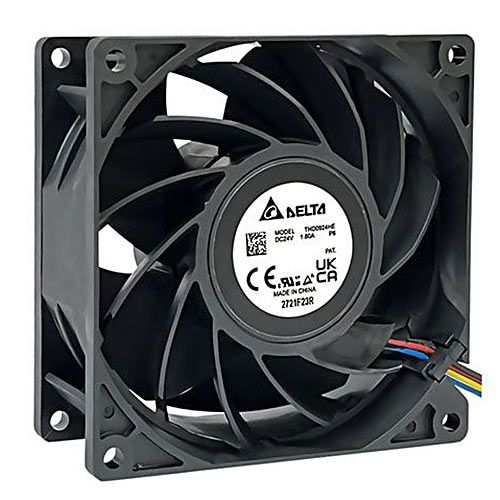

Delta THD0924HEP6 92mm 24VDC PWM Industrial DC Fan
The Delta THD0924HEP6 is a high‑performance IP68 industrial DC fan featuring PWM speed control and an advanced bionic blade design inspired by the flight of an osprey. Engineered for demanding environments, this fan delivers high airflow, and exceptional heat dissipation while maintaining industry‑leading efficiency and reliability.
Built to withstand dust, water immersion, humidity, vibration, and extreme temperatures, the THD0924HEP6 is ideal for telecom equipment, servers, heat exchangers, air conditioning systems, and other mission‑critical industrial applications.
Key Features
- 24 VDC voltage rating for industrial power systems.
- 92 mm square frame, 38 mm width, lightweight 255 g design.
- PWM control with 4-lead wiring for precise speed management.
- Speed sensor (tach) for real-time monitoring.
- Ball bearing for smooth, quiet operation at 10,700 RPM.
- 64 dB(A) noise level, suitable for noise-sensitive environments.
- Power consumption 27.6 W, current rating 1.15 A.
- Operating temperature range -10 °C to +70 °C.
- IP68 protection against dust and water ingress.
- Plastic frame and blades for corrosion resistance.
Specifications
| Series |
THD |
| Part Status |
Active |
| Voltage Rated |
24 VDC |
| Size / Dimension |
Square-92mm L X 92mm H |
| Width |
38.00mm |
| Air Flow |
145.54 CFM (4.121 m3/min) |
| Static Pressure |
2.334 inchH2O (59.283 mmH2O) |
| Bearing Type |
Ball |
| Fan Type |
Axial |
| Features |
PWM Control, Speed Sensor (Tach) |
| Noise |
64.0 dB(A) |
| Power (Watts) |
27.60 W |
| RPM |
10700 RPM |
| Termination |
4 lead wires |
| Ingress Protection |
IP68 |
| Operating Temperature |
-10~+70⁰C |
| Weight |
255 g |
| Current Rating |
1.15 A |
| Material Frame |
Plastic |
| Material Blade |
Plastic |
| Lifetime @ Temp |
70000 Hrs @ 40°C |
