Imagine you need to program a robot and the screen is dim, the buttons are hard to reach, and you waste time stopping the line to fix errors. The Denso TP-RC7/8 Teaching pendant is a handheld controller that lets you teach, test and adjust industrial robots with clear visuals and easy keys. It removes the frustration of slow set-up and unclear feedback, so you can keep production moving without costly delays.

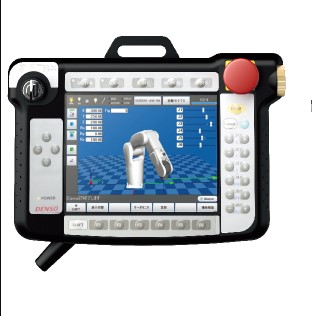

Denso TP-RC7/8 Teaching pendant
Many factories struggle with programming robots because the interface is confusing or the emergency stop is not immediate. This problem can cause safety risks and lost time. The Denso pendant solves it by offering a bright 7.5 inch color LCD, dedicated safety keys and a simple mode switch. You get instant visual feedback, quick access to emergency functions and a smooth workflow that matches the speed of your line.
Benefits
- Clear 640 480 color screen lets you see robot data at a glance, reducing mistakes.
- Emergency stop and dead-man switch are always within reach, improving safety for operators.
- All essential functions are on dedicated keys, so you can teach or adjust the robot without hunting for controls.
- IP65 protection keeps the pendant safe from dust and splashes in harsh shop floors.
- Lightweight design (under 1.3 kg) lets you move the device easily between workstations.
Usages
Use the pendant to program pick-and-place robots on assembly lines, to fine-tune welding arms in automotive plants, or to teach collaborative robots that work side by side with humans. It works in clean rooms, in paint shops, and in any environment where temperature stays between 0 C and 40 C. The flexible cable lengths (4 m, 8 m, 12 m) let you reach the controller even in large cells.
Key Features
- DC24V power supplied directly from the robot controller.
- 7.5 inch TFT color LCD with backlight for easy reading.
- Three status LEDs (POWER, MOTOR, LOCK) for quick visual checks.
- Emergency stop button with 4-circuit output for reliable shutdown.
- Dead-man switch (ON-OFF-ON) that prevents accidental motion.
- Mode switch with keys for AUTO, MANUAL and TEACH-CHECK operations.
- Touch-panel capability using the LCD screen.
- Comprehensive key set: jog dial, speed key, motion mode key, cursor keys, and more.
- IP65 rating protects against dust and water spray.
- Cable options of 4 m, 8 m or 12 m to match your installation needs.
Specification
| Category |
Industrial Robot Accessories |
| Sub-Category |
Teaching Pendant |
| General Information |
|
| Item |
Teaching pendant |
| Type |
TP-RC7/8 |
| Power supply |
DC24V (supplied by the controller) |
| Display |
|
| LCD |
Liquid crystal display with back light |
| LCD |
7.5" TFT Color LCD, 640x480 pixels |
| LED |
3 LEDs (POWER, MOTOR, LOCK) |
| Operation |
|
| Switch & Key |
Emergency stop button, deadman switch, jog dial, operating mode switch,
motor key, lock key, robot selection key, motion mode key, speed key,
cursor key, stop key, OK key, cancel key, moving direction key, shift key function key
|
| Touch Panel |
Use LCD screen as touch panel |
| Emergency stop button |
4B contact point, 4-circuit output (forced separation type) |
| Deadman switch (Enable switch) |
3-position type (OFF-ON-OFF), 2-circuit output |
| Operating mode switch |
3-position switching with keys (AUTO, MANUAL, and TEACHCHECK)
Note: Mode can be switched only with keys
|
| Installation Conditions |
|
| Temperature |
0 to 40 degree C |
| Humidity |
90% RH or less (dew condensation is not allowed) |
| Degree of protection |
IP65 |
| Physical Specifications |
|
| Weight |
1.3kg or less |
| Cable length |
4m, 8m, 12m |
