Looking for a tiny computer that never overheats and can survive a rough factory floor? The DFI VC230-BT3051-454, Intel Atom E3845, 4GB DDR3L Fanless Industrial PC is built for exactly that. It runs your HMI, data logger or edge AI without a fan, so you avoid costly downtime caused by dust or heat. If you need reliable performance in a small space, this unit is the answer.

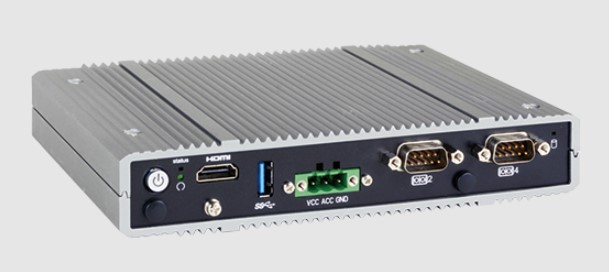

DFI VC230-BT3051-454, Intel Atom E3845, 4GB DDR3L Fanless Industrial PC
Many industrial users struggle with computers that fail when the temperature rises or when vibration is high. That problem can stop a production line and cost money. This DFI model solves the issue by using a fanless design, a rugged aluminum case and a low-power Atom processor. The result is a stable system that keeps working even in harsh environments, while still offering enough power for graphics, networking and storage.
Key Features
- Intel Atom E3845 quad-core processor, 1.91 GHz, 10 W.
- 4 GB ECC DDR3L memory on board, single channel 1333 MHz.
- Intel HD Graphics with VGA and HDMI outputs for dual display.
- Two full-size Mini PCIe slots, one half-size slot for flexible expansion.
- One SIM slot for cellular backup or remote monitoring.
- Two RS-232/422/485 serial ports, one supports DIO or CAN-Bus.
- USB 3.0 Type-A for fast peripheral connection.
- Power input 9-36 V DC with ignition on/off control.
- Operating temperature -20 C to 60 C, storage -40 C to 85 C.
- CE, FCC Class A, RoHS and E-Mark certifications for global compliance.
Specifications
| System |
|
| CPU |
Intel Atom E3845, Quad-Core, 2MB Cache, 1.91GHz, 10W |
| BIOS |
AMI SPI 64Mbit |
| Memory |
|
| Memory |
4GB ECC onboard DDR3L memory |
| Memory Technology |
Single Channel DDR3L 1333MHz |
| Graphics |
|
| Graphics Controller |
Intel® HD Graphics |
| Display Outputs |
1 × VGA, 1 × HDMI |
| HDMI Resolution |
Up to 1920 × 1080 @ 60Hz |
| VGA Resolution |
24-bit, up to 2560 × 1600 @ 60Hz |
| Multi-Display Support |
Dual Displays (VGA + HDMI) |
| Expansion |
|
| Mini PCIe Slots |
1 × Full-size Mini PCIe (PCIe/USB/3G/GPRS/CAN-Bus), 1 × Full-size Mini PCIe (SATA),
1 × Half-size Mini PCIe (PCIe/USB/LPC)
|
| SIM Slot |
1 × SIM |
| Ethernet |
|
| Ethernet Controller |
2 × Intel® I210AT PCIe Gigabit Ethernet Controllers |
| Ethernet Ports |
2 × 10/100/1000 Mbps RJ-45 |
| LED Indicators |
|
| LEDs |
1 × Status LED, 1 × HDD LED |

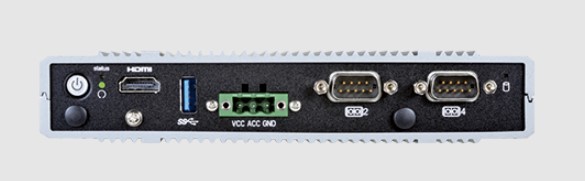

| Front I/O |
|
| Serial Ports |
2 × RS-232/422/485 (DB-9), one supports 8-bit DIO or CAN-Bus |
| USB |
1 × USB 3.0 Type-A |
| Display |
1 × HDMI |
| Buttons |
1 × Power Button, 1 × Reset Button |
| Wi-Fi Antenna |
2 × Wi-Fi Module Antenna Holes |

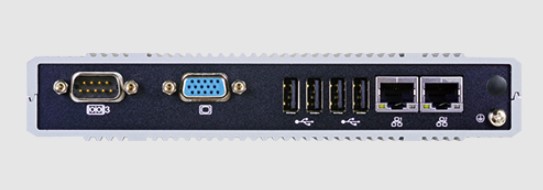

| Rear I/O |
|
| Ethernet |
2 × Gigabit Ethernet (RJ-45) |
| Serial Port |
1 × RS-232/422/485 (DB-9) |
| USB |
4 × USB 2.0 Type-A |
| Display |
1 × VGA |
| Wi-Fi Antenna |
1 × Wi-Fi Module Antenna Hole |
| Watchdog Timer |
|
| Watchdog |
System Reset, programmable from 1 to 255 seconds |
| Power |
|
| Input Voltage |
Wide Range 9 ~ 36V DC |
| Power Management |
Ignition On/Off and System On/Off Delay Time Control |
| Power Connector |
3-pin Terminal Block (VCC/IGN/GND) |
| Operating System Support |
|
| Windows |
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Windows 8.1 |
| Mechanical |
|
| Construction |
Aluminum + Metal Aluminum |
| Mounting |
Wall / VESA / DIN Rail Mount (available upon request) |
| Dimensions (W × H × D) |
180 × 33 × 121.2 mm |
| Weight |
800 g |
| Environmental |
|
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Standards & Certifications |
|
| Shock |
Half Sine Wave, 15G, 11 ms, 3 shocks per axis |
| Vibration |
MIL-STD-810G Method 514.5C-II |
| Certifications |
CE, FCC Class A, RoHS, E-Mark (E13) |
