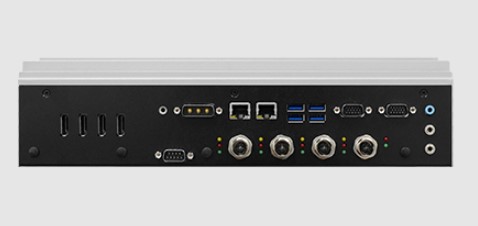

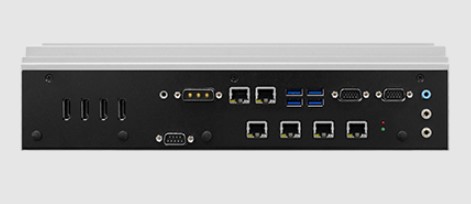

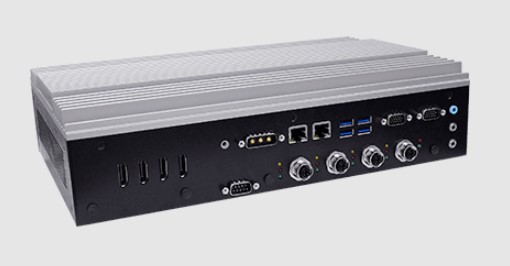

DFI VC500-CMS-A1000-POE-Q-i70, Intel Core™ i7-10700TE, 3W3 Edge AI System

Imagine a factory line that stops because a single computer cannot keep up with video analytics. The DFI VC500-CMS-A1000-POE-Q-i70, Intel Core i7-10700TE, 3W3 Edge AI System is built to stop that. It is a compact edge-AI box that runs heavy AI models, streams video, and manages devices right at the source. If you need real-time insight without sending data to a distant server, this system gives you the power and the ports you need.

DFI VC500-CMS-A1000-POE-Q-i70, Intel Core i7-10700TE, 3W3 Edge AI System

Many edge projects fail because the hardware cannot handle multiple video streams and AI inference at the same time. That problem creates lag, missed detections, and extra cost for cloud processing. The DFI system solves it by pairing an Intel Core i7-10700TE processor with an NVIDIA RTX A1000 graphics module, giving you eight CPU cores and a dedicated GPU in a fan-less chassis. The result is smooth AI performance, reliable PoE power, and a ready-to-connect package that fits into any rack.

Key Features

• Intel Core i7-10700TE processor with 8 cores, 35 W TDP.
• NVIDIA RTX A1000 MXM graphics module for GPU-accelerated AI.
• Four DisplayPort outputs from the MXM slot for multi-screen setups.
• Two HDMI/DP combo ports on the CPU side for flexible video connections.
• Two 2.5-inch SATA bays with lock, supporting RAID 0/1.
• One M.2 2280 slot (PCIe x4 & SATA) for fast boot storage.
• Dual Intel i219LM and i210IT LAN controllers with iAMT support.
• Four IEEE 802.3af PoE ports (RJ45 or M12) delivering up to 15.4 W each.
• Four USB 3.1 Gen2 ports for high-speed peripherals.
• Isolated digital I/O (8-bit DI + 8-bit DO) for sensor integration.
• Three accessible SIM slots for cellular backup or LTE connectivity.
• Passive cooling design eliminates moving parts and reduces maintenance.

Specifications
