Many factories and field stations need a computer that can run nonstop, stay cool without a fan, and survive dust, vibration, and temperature swings. When a device overheats or fails, production stops and costs rise. The DFI VP070-M8M gives you a sturdy, fan-less panel PC that works in tough places, so you keep your lines moving and your data safe.

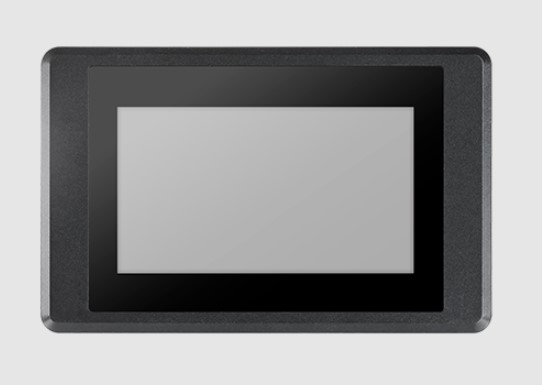

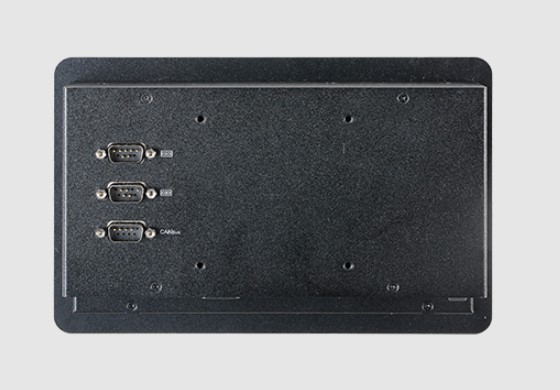

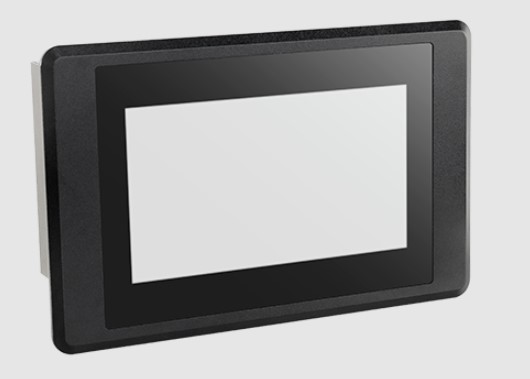

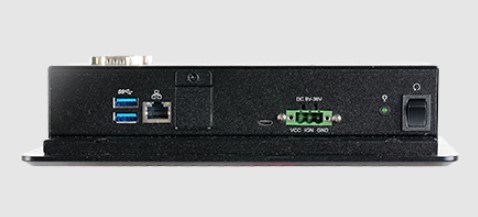

DFI VP070-M8M, NXP i.MX 8M Quad Cortex A53, 4GB/16GB Fan-less 7" Panel PC with DFI
This is a compact 7-inch industrial computer built by DFI. It runs on an NXP i.MX 8M Quad Cortex-A53 processor, offers 4 GB RAM and 16 GB eMMC storage, and has a bright 1024 600 touchscreen. It is perfect for machines that need a reliable human-machine interface without the noise and maintenance of a fan. If you are struggling with overheating panels or unreliable connections, this unit solves those problems with a sealed, fan-less design and robust I/O.
Usages
The panel PC fits well in factory control panels, vending machines, and outdoor kiosks. It can be mounted on a production line to display real-time metrics, used in transportation for driver information displays, or installed in a warehouse for inventory scanning stations. Its IP65 front protects it from water and dust, making it suitable for harsh outdoor signage or agricultural equipment.
Benefits
- Fan-less cooling means no dust buildup and silent operation.
- Rugged aluminum housing and IP65 rating protect against water and dust.
- Fast Quad-core processor handles multiple apps without lag.
- Multiple I/O ports let you connect sensors, cameras, and industrial networks.
- Wide temperature range keeps the system running from cold warehouses to hot factories.
Key Features
- Quad-core NXP i.MX 8M Cortex-A53 up to 1.3 GHz.
- 4 GB LPDDR4 RAM and 16 GB eMMC storage.
- 7" PCAP TFT touchscreen, 425 cd/m brightness.
- Gigabit Ethernet with AR8035 controller.
- Two USB 3.1 Gen1 ports, one Micro USB OTG.
- RS-232/422/485 serial, CAN bus, and reset switch.
- Micro-SD slot and dual M.2 slots for extra storage or cellular.
- 6-axis IMU sensor for motion detection.
- Power input 9-36 V DC with ACC/IGN control.
- Operating temperature -20 C to 70 C, storage -30 C to 80 C.
Specifications
| System |
|
| Processor |
NXP i.MX 8M Quad Cortex-A53 |
| Max. Speed |
1.3 GHz |
| Memory |
|
| Memory Technology |
On-board 4GB LPDDR4 Single Channel LPDDR4 up to 3200 MHz |
| Display & Touch Screen |
|
| Display Type |
7" PCAP TFT |
| Maximum Resolution |
1024 × 600 |
| Brightness |
425 cd/m² |
| Storage |
|
| Internal Storage |
eMMC 5.1, 16GB onboard (default) |
| External Storage |
Micro SD card slot |
| Expansion |
|
| M.2 Slots |
1 × M.2 2242/3042 B Key (USB 3.1 Gen1) with Nano SIM support, 1 × M.2 2230 E Key (PCIe x1/USB 2.0) |
| Audio |
|
| Audio Codec |
SGTL5000 |
| Audio Support |
Amplifier for optional 2W speaker, 1 × Line-out, 1 × Mic-in (internal header) |
| Ethernet |
|
| Ethernet Controller |
AR8035 |
| Ethernet Port |
1 × Gigabit Ethernet |
| Sensors |
|
| Sensor |
6-axis IMU (3-axis Accelerometer + 3-axis Gyroscope) |
| LED Indicators |
|
| LED |
Power LED |
| I/O Interfaces |
|
| Ethernet |
1 × GbE |
| Serial Ports |
1 × RS-232/422/485, 1 × RS-232 |
| CAN Bus |
1 × CAN Bus |
| USB |
2 × USB 3.1 Gen1, 1 × Micro USB OTG |
| Buttons |
1 × Reset switch |
| Power |
|
| Input Power |
9 ~ 36V DC with ACC/IGN control |
| Software Support |
|
| Linux |
Yocto 2.5 (Optional) |
| Android |
Android 9.0 (Default) |
| Mechanical |
|
| Construction |
Aluminum + SGCC |
| IP Rating |
IP65 Front Panel Protection |
| Mounting |
Panel Mount / VESA Mount |
| Dimensions |
235 × 150 × 54 mm |
| Weight |
2.9 kg |
| Environmental |
|
| Operating Temperature |
-20°C to 70°C |
| Storage Temperature |
-30°C to 80°C |
| Relative Humidity |
10% to 90% RH (Non-condensing) |
| Standards & Certifications |
|
| Shock |
Operating: Half-sine, 3G @ 11 ms; Non-operating: Half-sine, 5G @ 11 ms |
| Vibration |
Operating: Random, 1 Grms @ 5–500 Hz, 30 min;
Non-operating: Sweep sine, 3 Grms @ 10–500 Hz, 30 min
|
| Certifications |
CE, FCC, E-Mark (E24), RoHS, UKCA |
