| System |
|
| CPU |
Intel® Atom™ E3845, Quad-Core, 2MB Cache, 1.91GHz, 10W |
| BIOS |
AMI SPI 64Mbit |
| Memory |
|
| Memory |
4GB ECC Memory Down |
| Memory Technology |
Single Channel DDR3L 1333MHz |

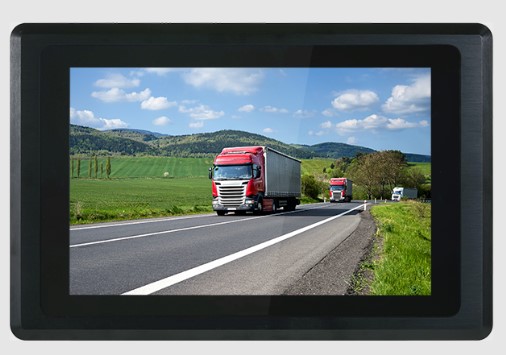

| Display & Touch Screen |
|
| Display |
10.1" TFT LCD with Capacitive Touch Screen |
| Resolution |
1280 × 800 |
| Brightness |
500 cd/m² |
| Contrast Ratio |
800:1 |
| Backlight Lifetime |
50,000 hours |
| Graphics |
|
| Graphics Controller |
Intel® HD Graphics |
| Graphics Features |
DirectX 11, OpenCL 1.2, OpenGL 4.0, H.264, MPEG2, MVC, VC-1,
WMV9, VP8 (OS-dependent support)
|
| Display Outputs |
1 × HDMI, 1 × VGA |
| HDMI Resolution |
Up to 1920 × 1080 @ 60Hz |
| Storage |
|
| Drive Bay |
1 × 2.5" SATA 2.0 Drive Bay |
| microSD |
1 × microSD (available upon request) |
| Onboard Storage |
eMMC (available upon request) |
| Expansion |
|
| Mini PCIe Slots |
1 × Full-size Mini PCIe (PCIe/USB), 1 × Full-size Mini PCIe (mSATA),
1 × Half-size Mini PCIe (PCIe/USB/LPC)
|
| SIM Socket |
1 × SIM Socket |
| Audio |
|
| Audio Codec |
Realtek ALC886 5.1-channel |
| Ethernet |
|
| Ethernet Controller |
2 × Intel® I210AT PCIe Gigabit Ethernet Controllers |
| Ethernet Ports |
2 × 10/100/1000 Mbps RJ-45 |
| LED Indicators |
|
| LEDs |
1 × Power LED, 1 × HDD LED |

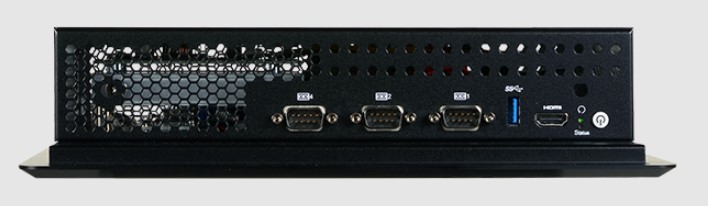

| Top I/O |
|
| Serial Ports |
3 × RS-232/422/485 (DB-9), one supports 8-bit DIO |
| USB |
1 × USB 3.0 Type-A |
| Display |
1 × HDMI |
| Buttons |
1 × Power Button, 1 × Reset Button |
| Antenna |
2 × Antenna Holes |

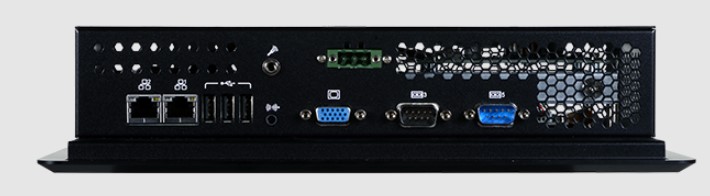

| Bottom I/O |
|
| Ethernet |
2 × GbE RJ-45 (10/100/1000 Mbps) |
| Serial Ports |
1 × RS-232/422/485 (DB-9), 1 × RS-232 (DB-9) |
| USB |
3 × USB 2.0 Type-A |
| Audio |
1 × Line-out, 1 × Mic-in |
| Watchdog Timer |
|
| Watchdog |
System Reset, programmable via software from 1 to 255 seconds |
| Power |
|
| Input Voltage |
Wide Range 9 ~ 36V DC |
| In-Vehicle Power Management |
Ignition On/Off and System On/Off Delay Time Control |
| Power Connector |
3-pin Terminal Block (VCC/ACC/GND) |
| Operating System Support |
|
| Windows |
Windows 7 (32-bit/64-bit), Windows 10 IoT Enterprise (32-bit/64-bit) |
| Linux |
Supported |
| Mechanical |
|
| Construction |
Aluminum Front Bezel |
| IP Rating |
IP65 Front Panel Protection |

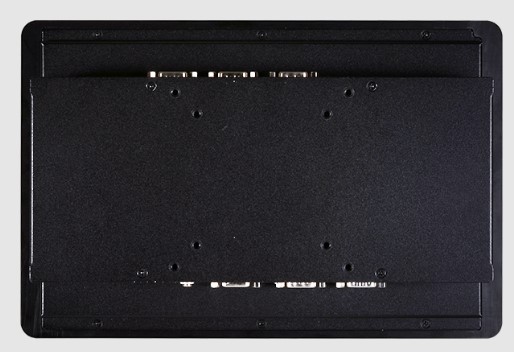

| Mounting |
Panel Mount / VESA Mount |
| Dimensions (W × H × D) |
294 × 193 × 65 mm |
| Weight |
1.7 kg |
| Environmental |
|
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-30°C to 80°C |
| Relative Humidity |
5% to 85% RH (Non-condensing) |
| Standards & Certifications |
|
| Shock |
Operating: Half-sine, 3G @ 11 ms; Non-operating: Half-sine, 5G @ 11 ms |
| Vibration |
Operating: Random, 1 Grms @ 5–500 Hz, 30 min;
Non-operating: Sweep sine, 3 Grms @ 10–500 Hz, 30 min
|
| Certifications |
CE, FCC Class A, E-Mark (E13) |
