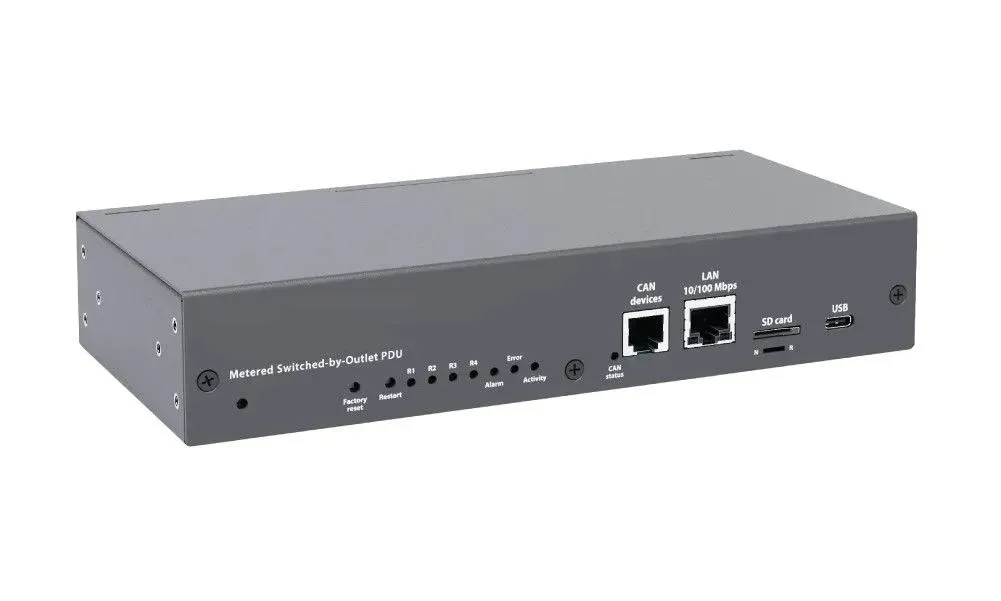

Didactum DI12008 PDU-4M Power Distribution Unit
The Didactum PDU-4M is a network-enabled Power Distribution Unit with four individually switchable and individually monitored IEC-320-C13 outlets. Each outlet can be switched on or off independently, reset, or toggled, while providing precise measurements for voltage, current, power, frequency, and active and apparent energy. This makes the PDU-4M ideal for server racks, network cabinets, and technical installations where individual loads need to be monitored and remotely controlled.
In addition to power distribution, the PDU-4M includes a CAN bus port for connecting environmental sensors, allowing climate values to be recorded directly at the power distribution unit. Control is available via the integrated web interface, a mobile app, or common M2M protocols such as REST API and SNMP.
Key Features of Didactum DI12008 PDU-4M Power Distribution Unit
- Number of Outlets: 4 Outlets - provides enough connections for most rack setups.
- Outlet Voltage: 110-240 V AC, 50/60 Hz - works with global mains standards.
- Outlet Management: Managed, Switched, Individually Metered - gives you full control over each socket.
- Measured Values: Voltage (V), Frequency (Hz), Current (A), Power (W), Active Power (W), Real Energy (Wh) - comprehensive power analytics at a glance.
- USB Camera Support: JPEG Notifications - lets you attach a camera for visual monitoring and receive image alerts.
- USB Hub Support: Supported - adds extra USB ports for peripherals without extra hardware.
- Log Storage: USB Stick and SD Card - store up to 500 GB of historical data for audit trails.
- Firmware Upgrade: Via USB - keep the unit up-to-date with a simple plug-in.
- Ethernet Interface: 10/100 Base-T - reliable network connection for remote access.
- Network Functions: PING, Modbus TCP, MJPEG IP Camera Surveillance - integrates smoothly with existing automation protocols.
Specifications
|
Number of Outlets
|
4 Outlets
|
|
Outlet Voltage
|
110–240 V AC, 50/60 Hz
|
|
Outlet Management
|
Managed, Switched, Individually Metered
|
|
Measured Values
|
Voltage (V), Frequency (Hz), Current (A), Power (W), Active Power (W), Real Energy (Wh)
|
|
USB Camera Support
|
JPEG Notifications
|
|
USB Hub Support
|
Supported
|
|
Log Storage
|
USB Stick and SD Card
|
|
Firmware Upgrade
|
Via USB
|
|
SD Card
|
Not Included
|
|
Log Storage Capacity
|
Up to 500 GB
|
|
Ethernet Interface
|
10/100 Base-T
|
|
Device Connection
|
Via IP Address
|
|
Network Functions
|
PING, Modbus TCP, MJPEG IP Camera Surveillance
|
|
Notifications
|
Email, SNMP Traps, HTTP Requests, Web-to-SMS
|
|
Network Features
|
RADIUS, NTP, OpenVPN Client/Server, Routing, DynDNS, SSL Certificate
|
|
Log Transfer
|
FTP Server, Email
|
|
Sensor Connectivity
|
Digital CAN Sensors Connected in Series
|
|

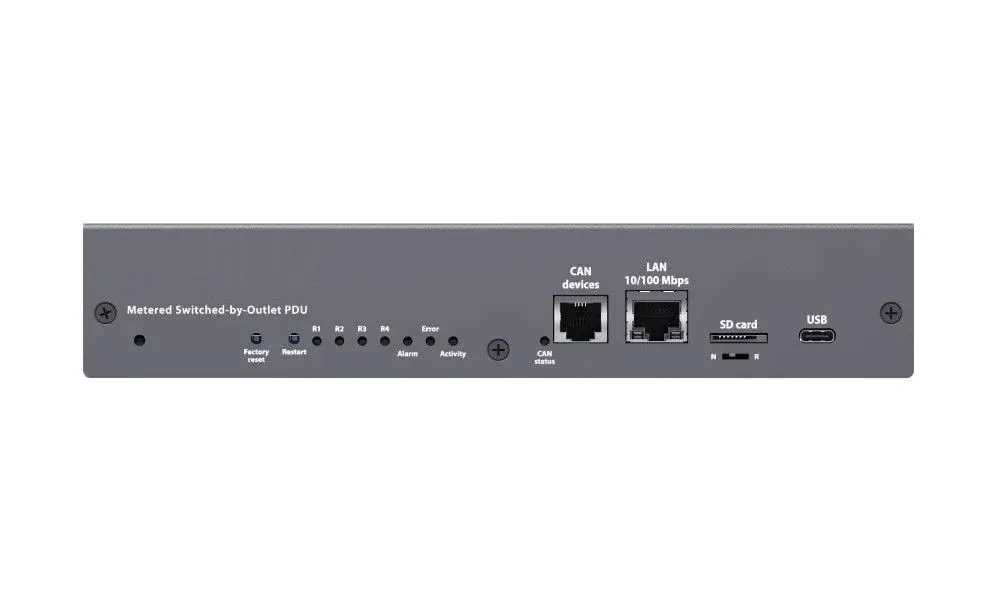

LED Indicators
|
Activity, Error, Alarm, Outlets 1–4, CAN
|
|
Controls
|
Restart Button, Factory Reset, N-R Switch
|
|
Integrated Temperature Sensor
|
±1°C Accuracy
|
|
DC Voltage Monitoring
|
12 V DC, 1% Accuracy
|
|

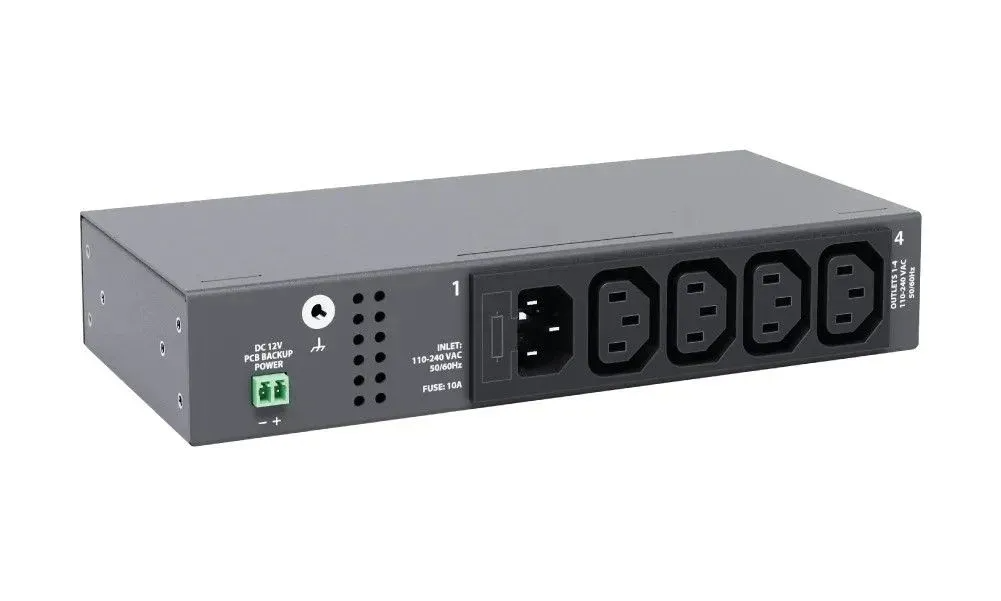

Power Input Connector
|
C14
|
|
Input Voltage
|
110–240 V AC, 50/60 Hz
|
|
Fuse Rating
|
10 A, 5 × 20 mm
|
