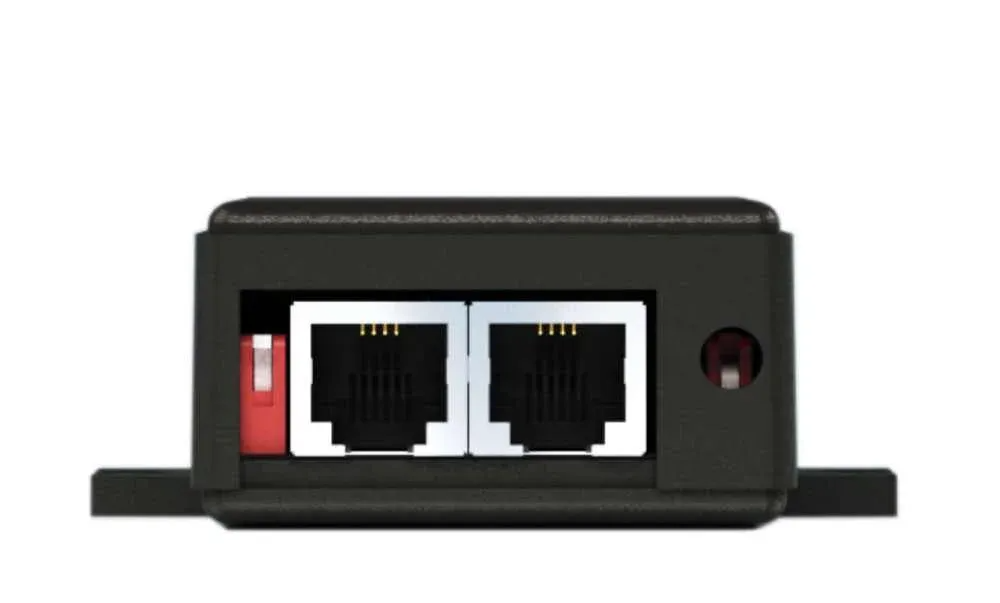

Didactum DI14000 Combination Sensor for Temperature and Humidity

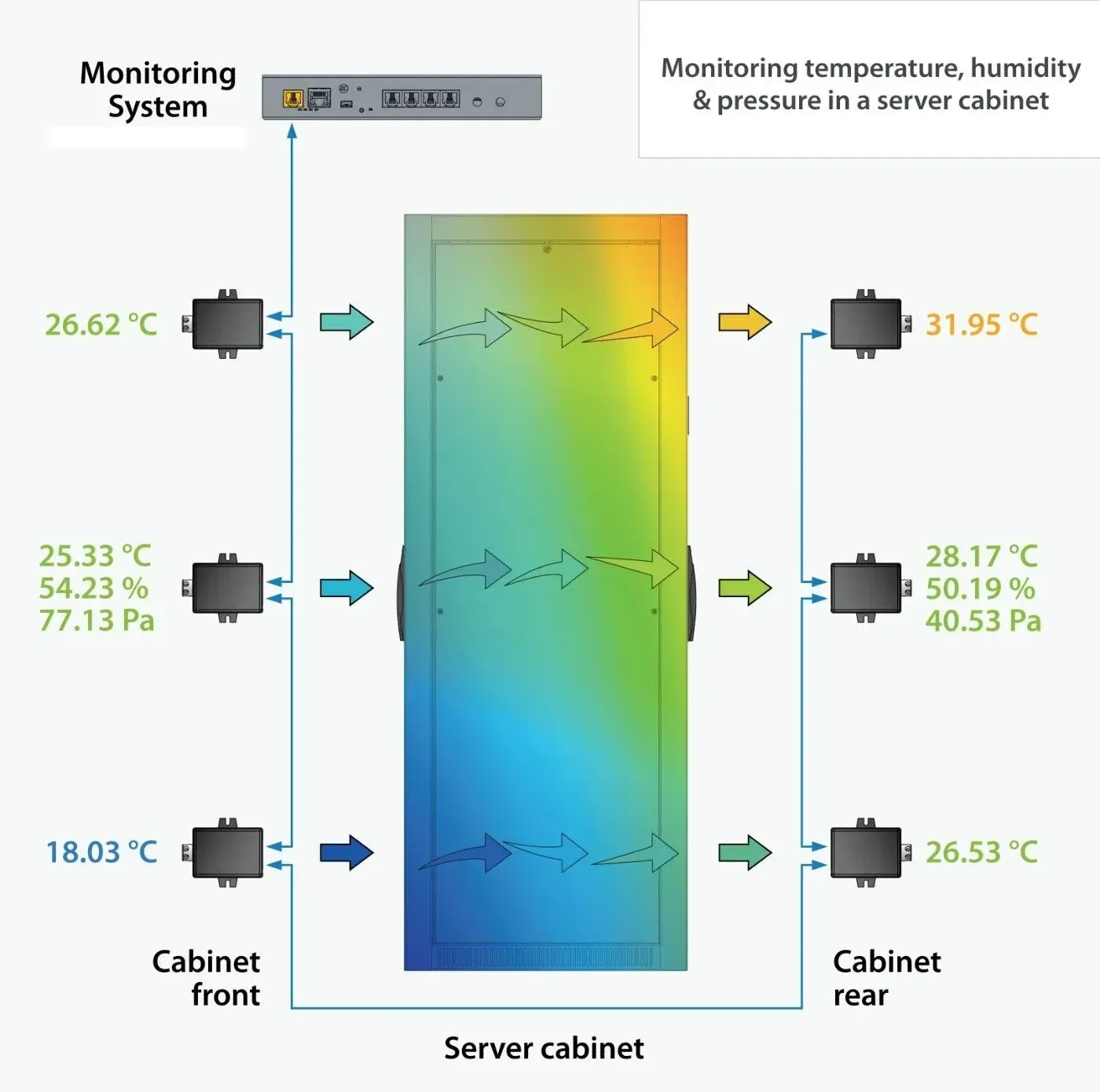

The Didactum humidity and temperature CAN sensor is a high-quality humidity and temperature sensor. By connecting multiple humidity and temperature sensors in a CAN daisy chain, temperature and humidity values can be measured at any location in a room or server cabinet.

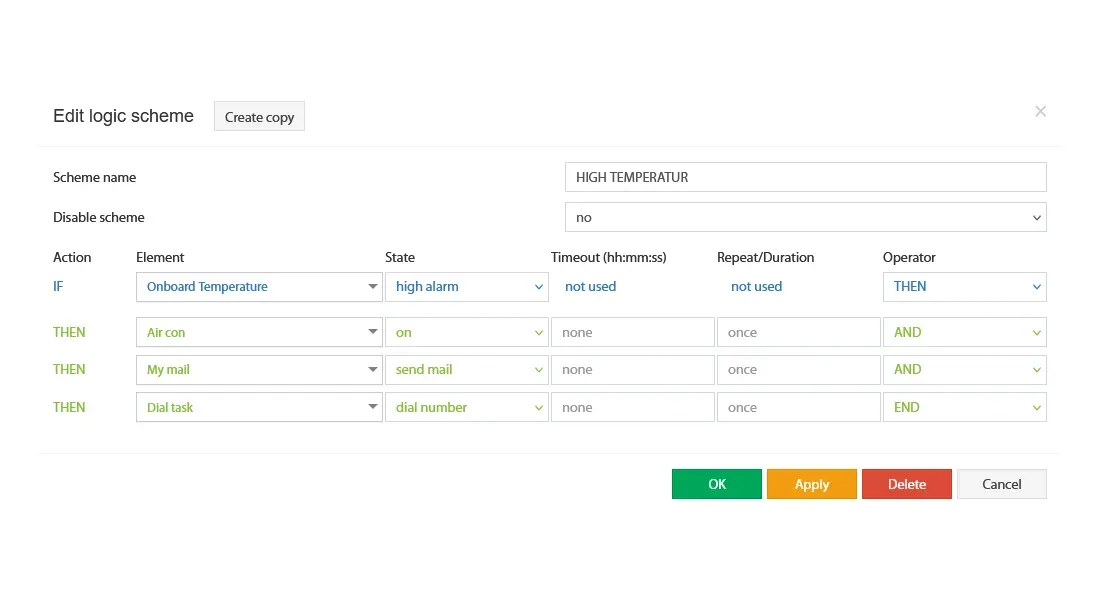

Each environmental parameter of the sensor is displayed as a separate element in the Didactum web interface. This makes it possible to define individual threshold values and trigger events such as notifications or other actions. A key feature is the automatic calculation of the dew point based on the captured temperature and humidity values - essential for avoiding condensation problems in sensitive areas such as data centers, production facilities, or warehouses.
As a robust CAN bus environmental sensor, the sensor supports daisy chaining with other CAN devices. Depending on the system configuration, 10 to 32 CAN units can be connected in a single CAN bus chain, which enables high scalability.
Specifications
| Function |
|
| Detects |
Humidity and temperature |
| Sensor type |
CAN bus sensor |
| Network Interface |
CAN open |
| Inputs/Outputs |
|
| Inputs/Outputs |
x2 RJ11 6P4C ports |
| Environmental conditions |
|
| Operating temperature |
-10° C to +80° C |
| Operating temperature |
Optimal temperature range: -10° C to +80° C |
| Operating humidity |
0 to 95 % |
| Accuracy |
|
| Temperature Accuracy |
±0.4 °C (max), –10 to 85 °C |
| RH accuracy |
± 3% RH (max), 0–80% RH |
| Connection |
|
| Daisy chain |
Multiple sensors can be connected in a chain along with other types of CAN sensors and extensions |
| Max. distance from the unit |
225 m |
| Electrical data |
|
| Power input |
12V DC, 1A |
| Current consumption |
1 Watt |
| Physical |
|
| Dimensions |
68 x 47 x 26 mm |
| Mounting possibilities |
Desktop, Indoor, Wall mount |
| Status indication |
|
| LED indicators |
Red (Error) / Green (Run) |
