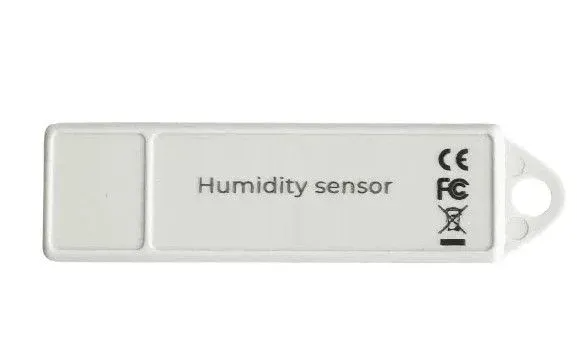

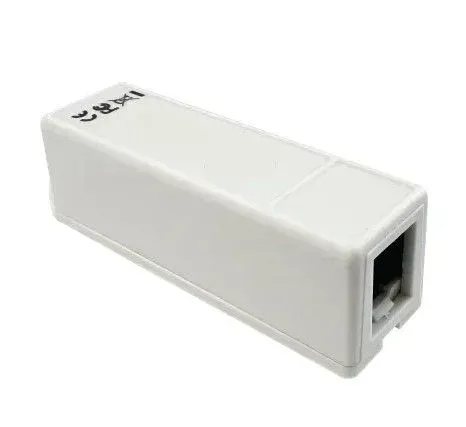

Didactum DI14005 Humidity Sensor

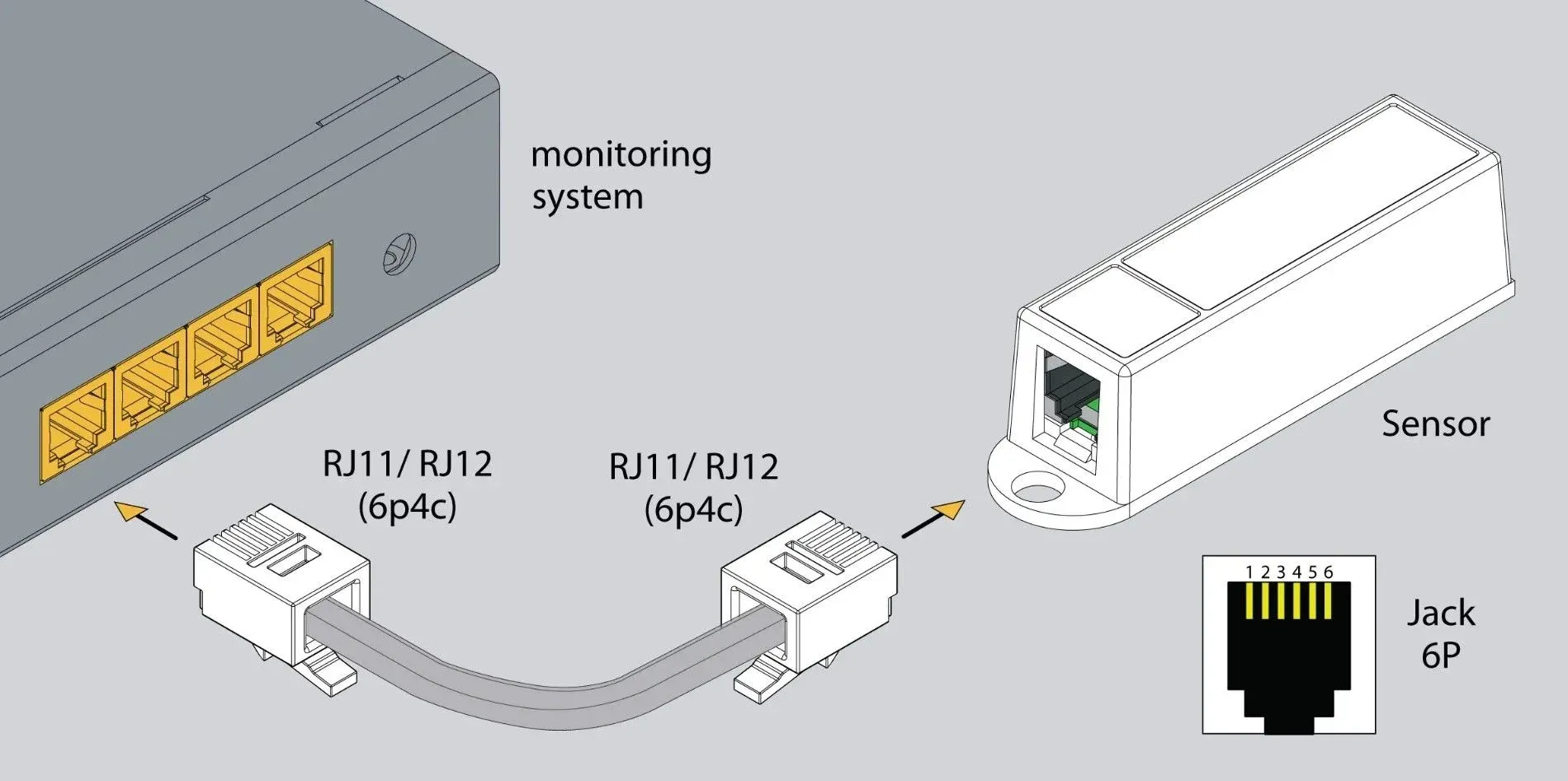

The relative humidity sensor is used for the precise measurement of relative humidity in indoor environments within a range of 10% to 95%. As an analog plug-and-play sensor, it integrates seamlessly into Didactum monitoring systems. The sensor can be connected to any analog port (A1…A8) of the Didactum monitoring system and provides humidity data in real time.
Use Cases
The following examples illustrate the sensor's versatility in various areas where monitoring and maintaining optimal humidity is crucial.
• Data centers and server rooms: The sensor is used to monitor humidity levels to prevent moisture buildup, which can damage sensitive electronic equipment and lead to downtime or hardware failure.
• Industrial automation: The sensor helps maintain optimal environmental conditions in factories, warehouses, and production facilities, where humidity control is critical for processes, equipment longevity, and product quality.
Specifications
| Function |
|
| Function |
Analog humidity sensor for indoor use |
| Connection |
Via standard Didactum analog sensor cable |
| Compatibility |
Compatible with Didactum monitoring systems |
| Measured parameters |
|
| Measured variable |
Relative humidity |
| Accuracy |
±3% RH |
| Connections & installation |
|
| Connection |
RJ-12 / RJ-11 |
| Maximum distance to unit |
50 m |
| Mounting |
Desktop or wall mounting |
| Electrical data |
|
| Power consumption |
60 mW |
| Environmental conditions |
|
| Operating temperature |
-10 °C to +80 °C |
| Humidity |
10% to 95% (indoor) |
| Mechanical data |
|
| Dimensions |
60 × 18 × 18 mm |
