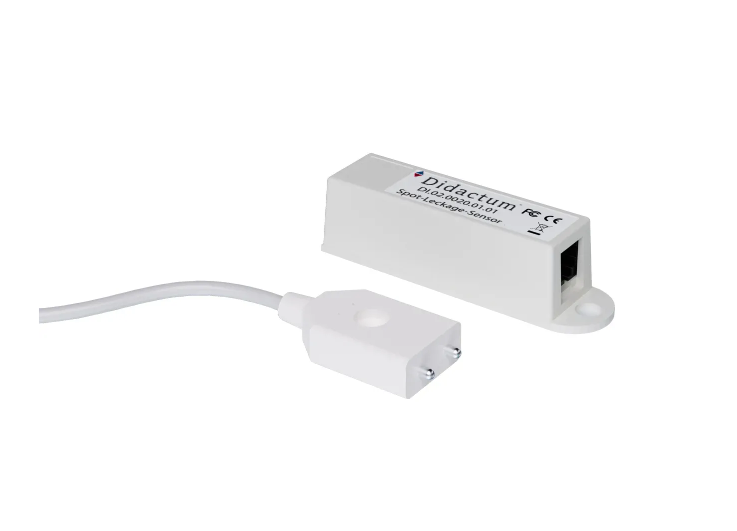

Didactum DI14006 Water Sensor
The water sensor detects water by measuring the increase in capacitance between two metal contacts at the point of contact. The robust plastic housing protects the sensor from corrosion. Unlike conventional metal-based sensors, it is permanently corrosion-resistant thanks to low operating voltages and a non-corrosive measurement method. This makes it ideal for long-term applications in leakage-prone environments. The sensor is compatible with all analog connections of the Didactum monitoring unit and is easy to integrate.
Applications
• Data centers: The sensor detects water leaks under raised floors or near critical equipment, thus preventing costly damage to IT infrastructure.
• Industrial plants: The sensor supports the monitoring of leakage-prone areas, e.g., around or under machines, boilers, heating systems, or piping systems.
• Residential and commercial spaces: For leak detection in kitchens, bathrooms, on boilers, and near household appliances such as washing machines and boilers.

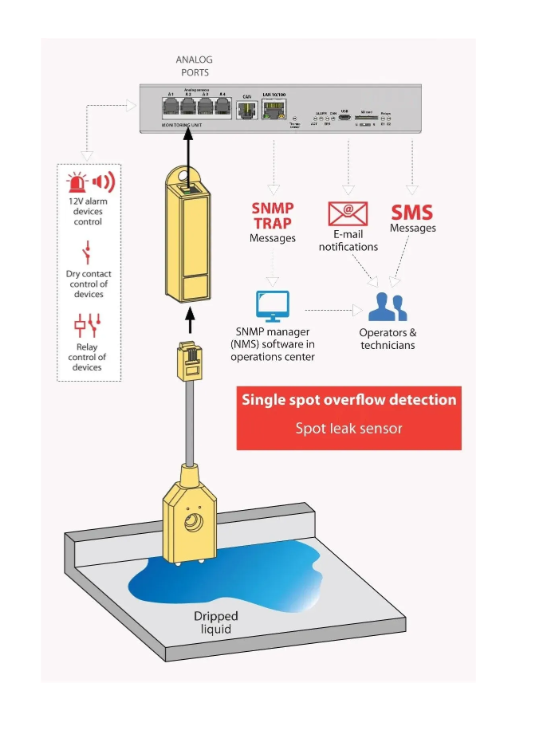

• Water level sensor: The sensor detects whether the water has reached a certain level, for example in a collection tray.
Specifications
| Function |
|
| Function |
Analog spot leak sensor for point detection of water |
| Detection |
Detection is carried out capacitively between two measurement points |
| Corrosion Resistance |
Corrosion-resistant due to low voltages and non-metallic measurement method |
| Connection |
Plug-and-play connection to analog ports of Didactum monitoring systems |
| Expandability |
Expandable via Sensor Extension Units |
| Measurement principle |
|
| Measurement Principle |
Capacitive measurement for detecting moisture between two poles |
| Connections |
|
| Input |
2-wire |
| Output |
RJ11 / RJ12 (6P4C) |
| RJ 6P4C |
Connection to the monitoring unit |

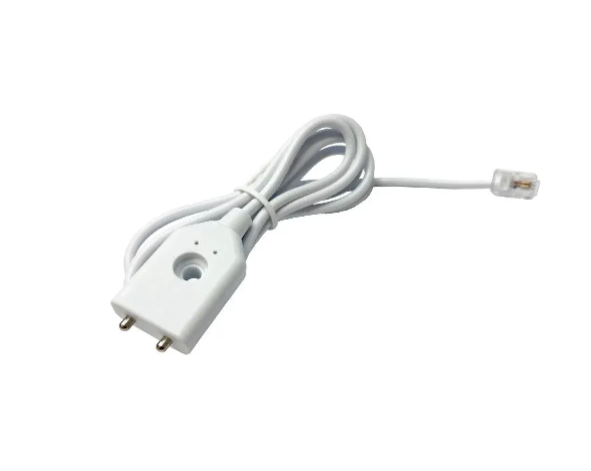

| RJ 4P2C |
Connection to the sensor element |
| Electrical data |
|
| Power consumption |
60 mW |
| Maximum distance |
100 m to the monitoring or extension unit |
| Environmental conditions |
|
| Operating temperature |
-10 °C to +80 °C |
| Humidity |
5% to 95% (non-condensing) |
| Mechanical data |
|
| Dimensions |
60 × 18 × 18 mm |
| Weight |
60 g |
| Mounting |
Bracket included |
| General |
|
| Sensor type |
Analog |
| Response time |
Approx. 15 seconds |
| Recovery time |
Depends on drying time |
