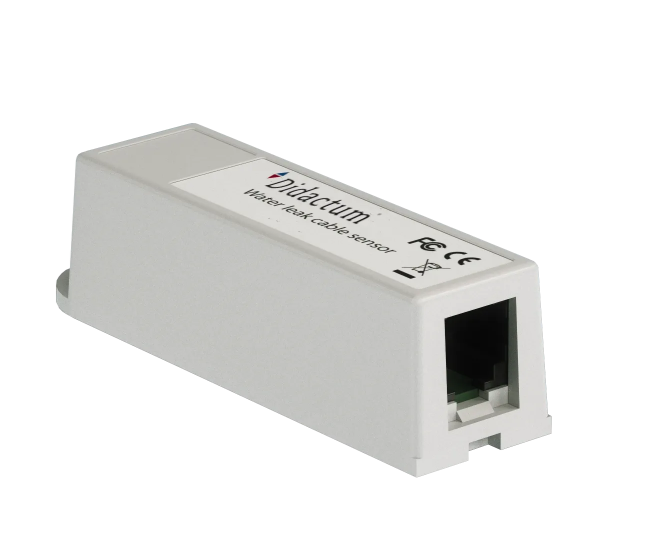

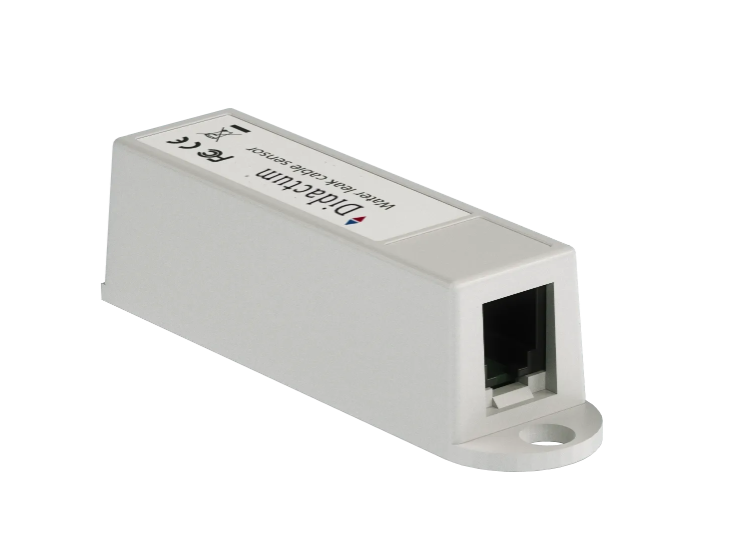

Didactum DI14007 Analog Sensor for Connecting Water Detection Cables
The connector for water leak detection cables is used to detect water leaks by measuring the resistance drop in a connected water detection chain.
This sensor requires a water detection chain, which must be ordered separately and is available in various lengths.
This plug-and-play sensor easily connects to any analog port on Didactum monitoring devices.
The maximum number of sensors can be increased with the sensor expansion unit.

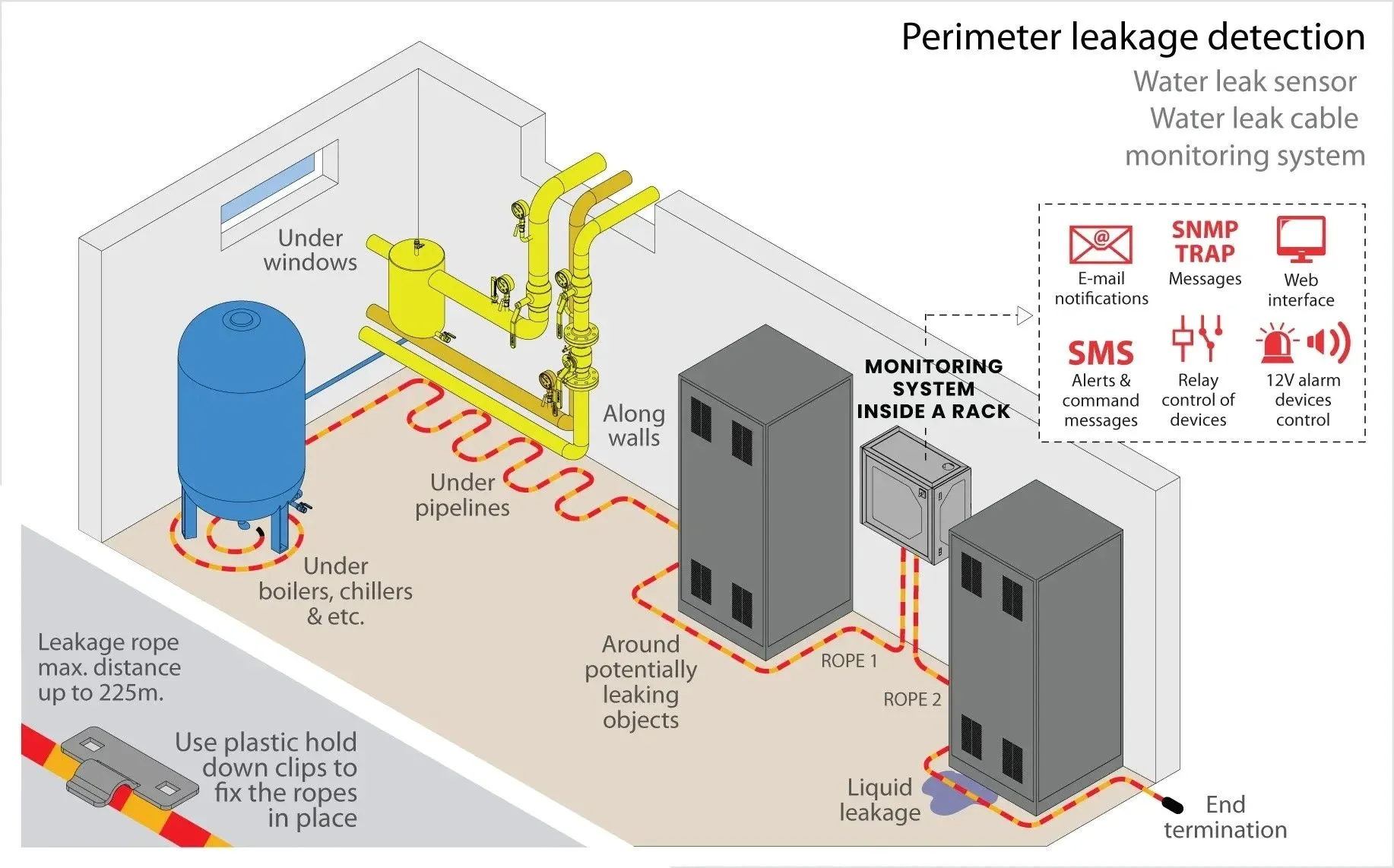

Applications: This sensor is essential for preventing water damage in critical environments.
Uses:
• Water leak detection: The sensor detects water by measuring the resistance drop in the connected water detection chain.

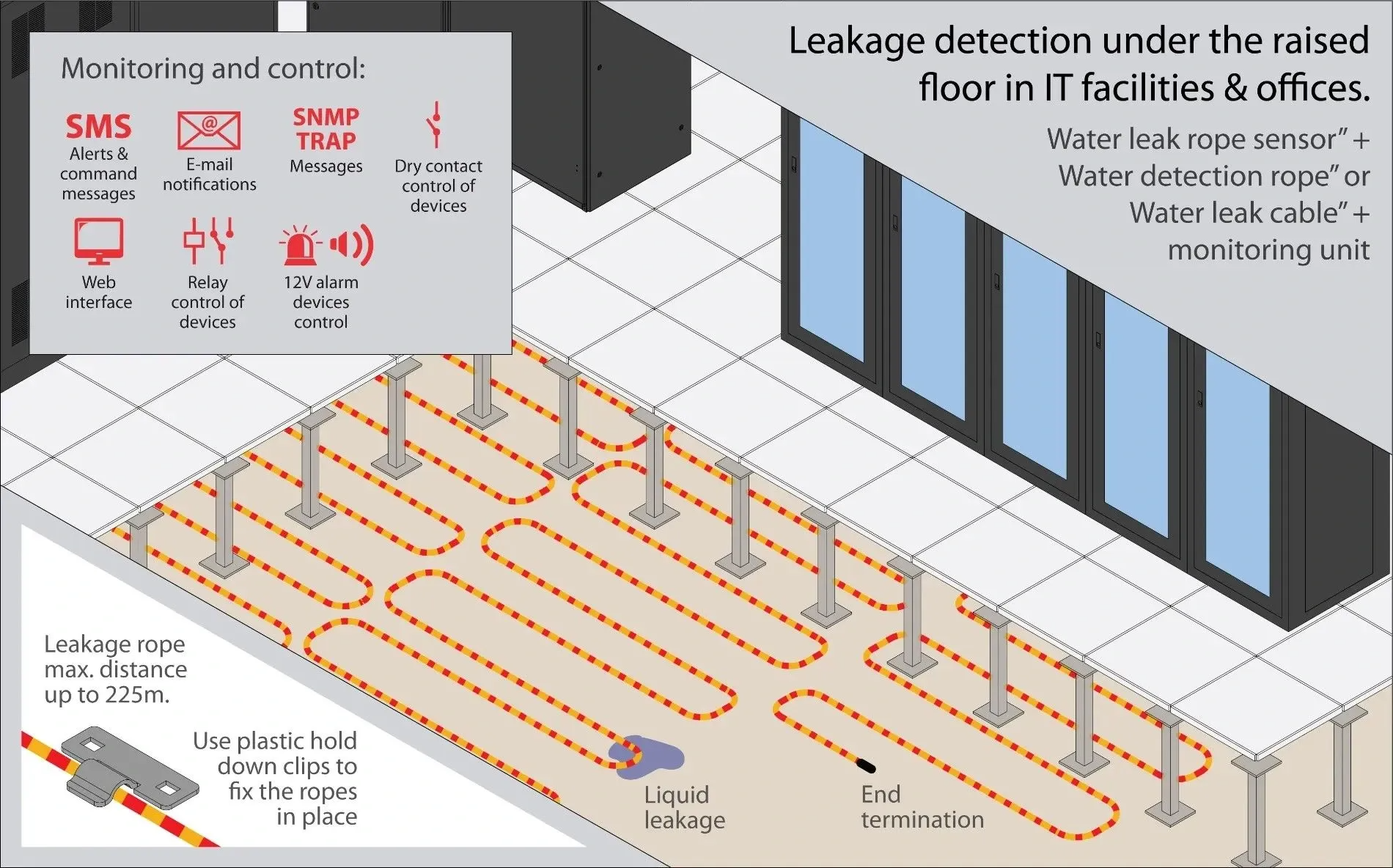

• Flexible installation: The cable can even be laid on a metal floor! Use on a grid floor is not possible, as short circuits may occur.
Specifications
| Function |
|
| Function |
Analog sensor for connecting water detection cables |
| Detection |
Detects moisture through a drop in resistance in the connected water detection cable |
| Connection |
Connection to analog ports (A1 to A8) of Didactum monitoring systems |
| Monitoring |
Enables real-time monitoring and alarm notification in case of water ingress |
| Expandability |
Expandable via Sensor Extension Units for larger installations |
| Measurement principle |
|
| Measurement Principle |
Detection of water through changes in electrical resistance in the sensor cable |
| Connections |
|
| Input |
2-wire (water detection cable required, sold separately) |
| Output |
RJ11 / RJ12 (6P4C) |
| Electrical data |
|
| Power consumption |
60 mW |
| Maximum distance |
100 m to the monitoring or extension unit |
| Environmental conditions |
|
| Operating temperature |
-10 °C to +80 °C |
| Humidity |
5% to 95% (non-condensing) |
| Mechanical data |
|
| Dimensions |
60 × 18 × 18 mm |
| Weight |
60 g |
| Mounting |
Screws and adhesive strips included |
| General |
|
| Sensor type |
Analog |
| Response time |
Approx. 15 seconds |
| Recovery time |
Depends on drying time |
| Daisy chain |
Not supported |
