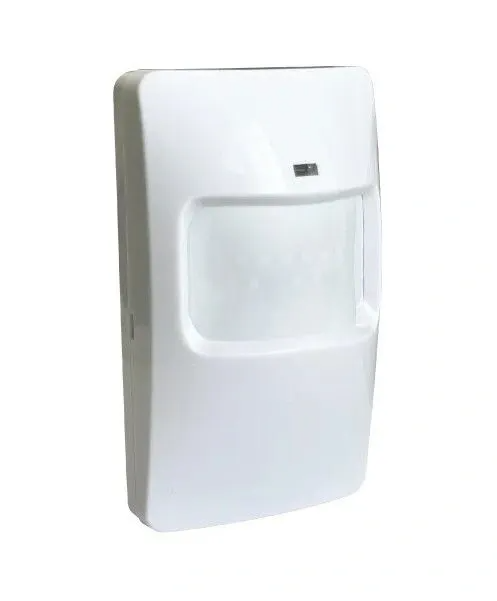

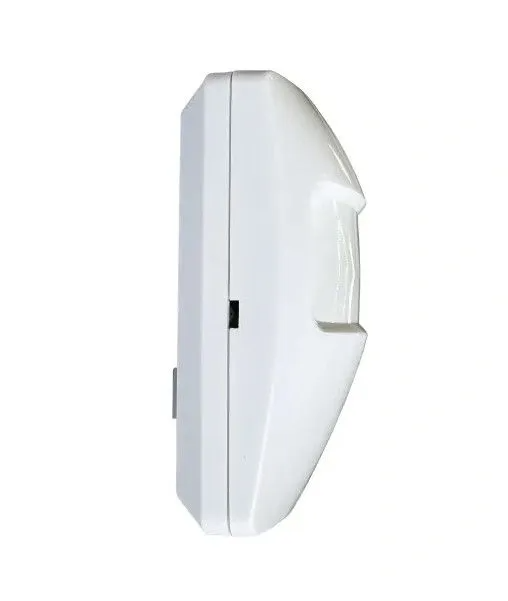

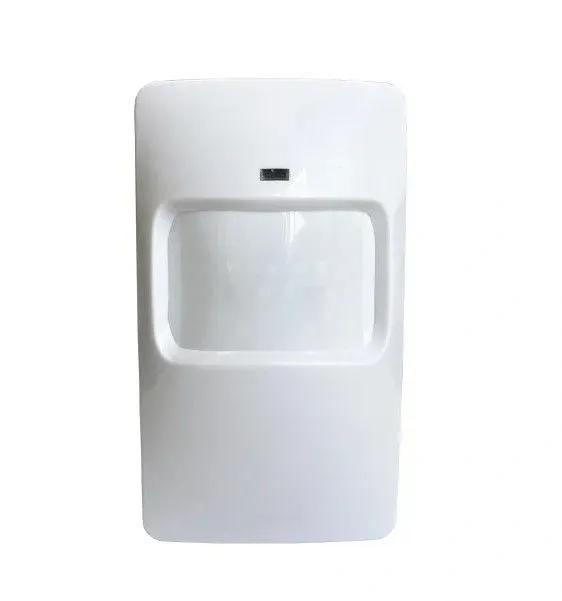

Didactum (DI14013_4m) Microwave Motion Detector
The radar motion detector is a high-performance sensor/detector that uses microwave radar technology as a control signal source to precisely detect object and person movement.
Designed as an energy-efficient, highly sensitive indoor detector, the sensor offers optimal performance in a variety of environments.
The microwave signal penetrates materials such as plastic, glass, ceilings, wooden doors, and thin walls, making it versatile for use even in concealed or hard-to-reach areas.

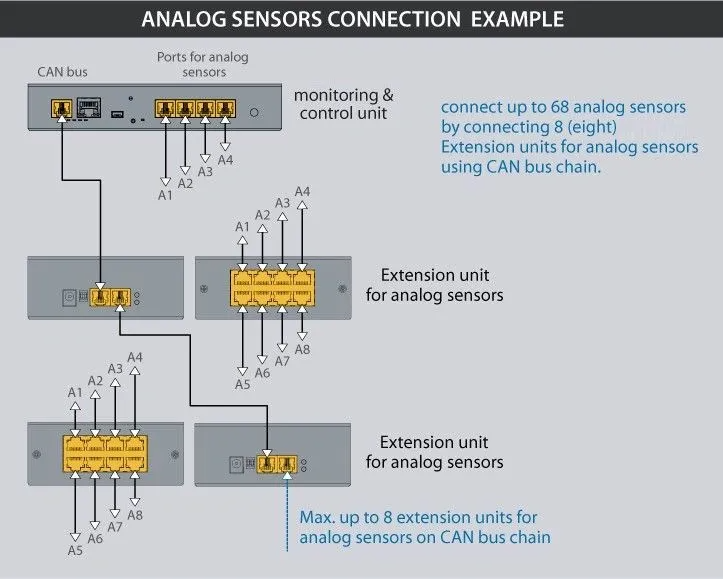

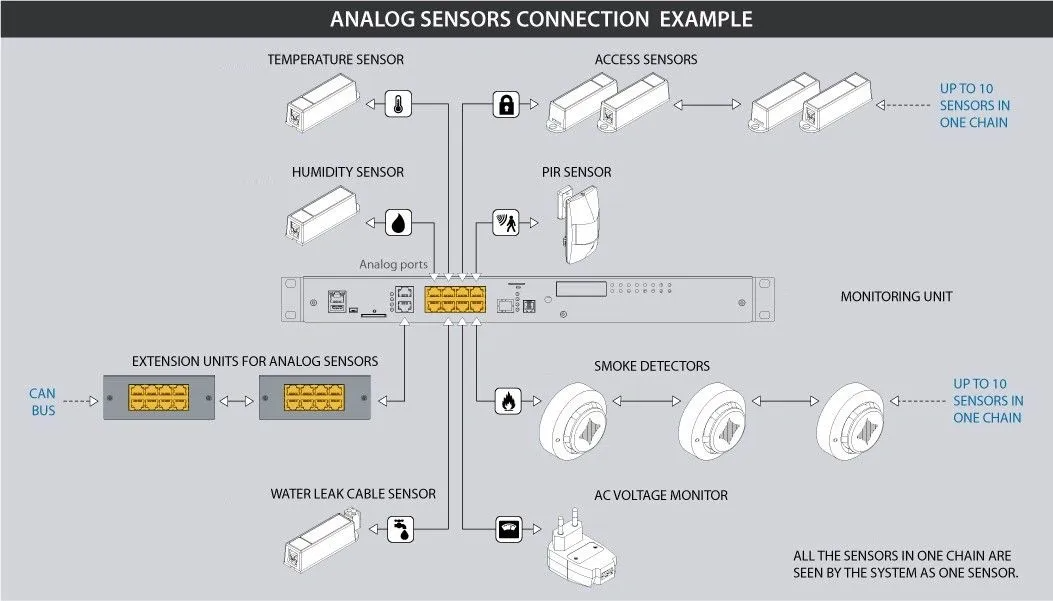

It connects seamlessly to any analog port of the Didactum monitoring unit and offers plug-and-play functionality with event-driven triggering via customizable logic schemes.
Applications
• Motion detection: Ideal for detecting people or movement indoors. This makes it suitable for security systems, lighting automation, and energy-saving applications.
• Object detection: It can detect objects even when the signal has to penetrate materials such as glass, plastic, or thin walls. Therefore, it is perfect for concealed installation in office buildings, residential buildings, or warehouses.
Specifications
| Function |
|
| Function |
Analog motion detector for detecting persons and objects |
| Detection |
Based on modern microwave radar technology (Doppler principle) |
| Sensitivity |
High sensitivity for indoor applications |
| Detection Through Materials |
Detection also through materials such as glass, plastic, wood or thin walls |
| Connection |
Plug-and-play connection to the Didactum Monitoring System |
| Event Control |
Event control via individually configurable logic |
| Expandability |
Expandable via expansion units |
| Sensor technology |
|
| Sensor type |
Analog |
| Technology |
Microwave radar (Doppler principle) |
| Frequency range |
5.725 GHz – 5.875 GHz |
| Transmit power |
-4 dBm |
| Antenna |
Integrated flat antenna |
| Detection parameters |
|
| Detection distance |
4 m |
| Detection angle |
120° |
| Recommended mounting height |
Approx. 3 m |
| Max. detection radius |
Approx. 6 m at a mounting height of 3 m |
| Status indication |
|
| Red LED |
Motion detected |
| Green LED |
No motion |
| Connections |
|
| Output |

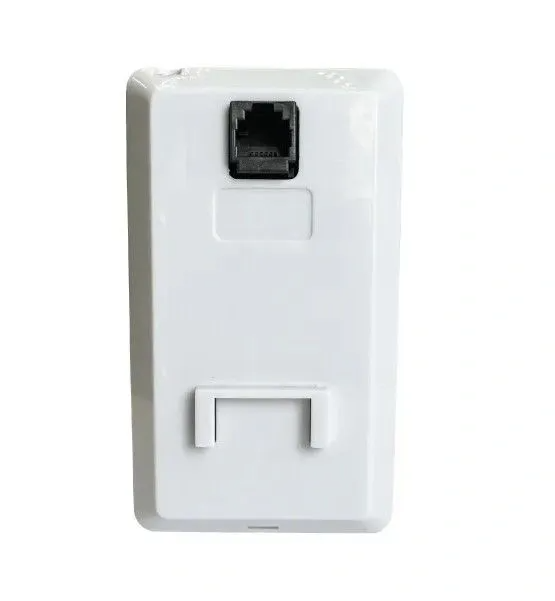

RJ11 (6P4C) |
| Cable length |
2 m |
| Maximum distance |
Up to 100 m to the central unit or expansion module |
| Environmental conditions |
|
| Operating temperature, sensor board |
-20 °C to +85 °C |
| Operating temperature, housing |
-20 °C to +80 °C |
| Operating temperature, cable |
-15 °C to +80 °C |
| Storage temperature |
-40 °C to +100 °C |
| Operating humidity |
0 % to 85 % |
| Storage humidity |
0 % to 95 % |
| Electrical data |
|
| Power consumption |
100 mW |
| Mounting |
|
| Mounting type |
Wall or ceiling mounting |
| General |
|
| Certifications |
FCC, CE, SRRC, RoHS |
| Manufacture |
EU |
