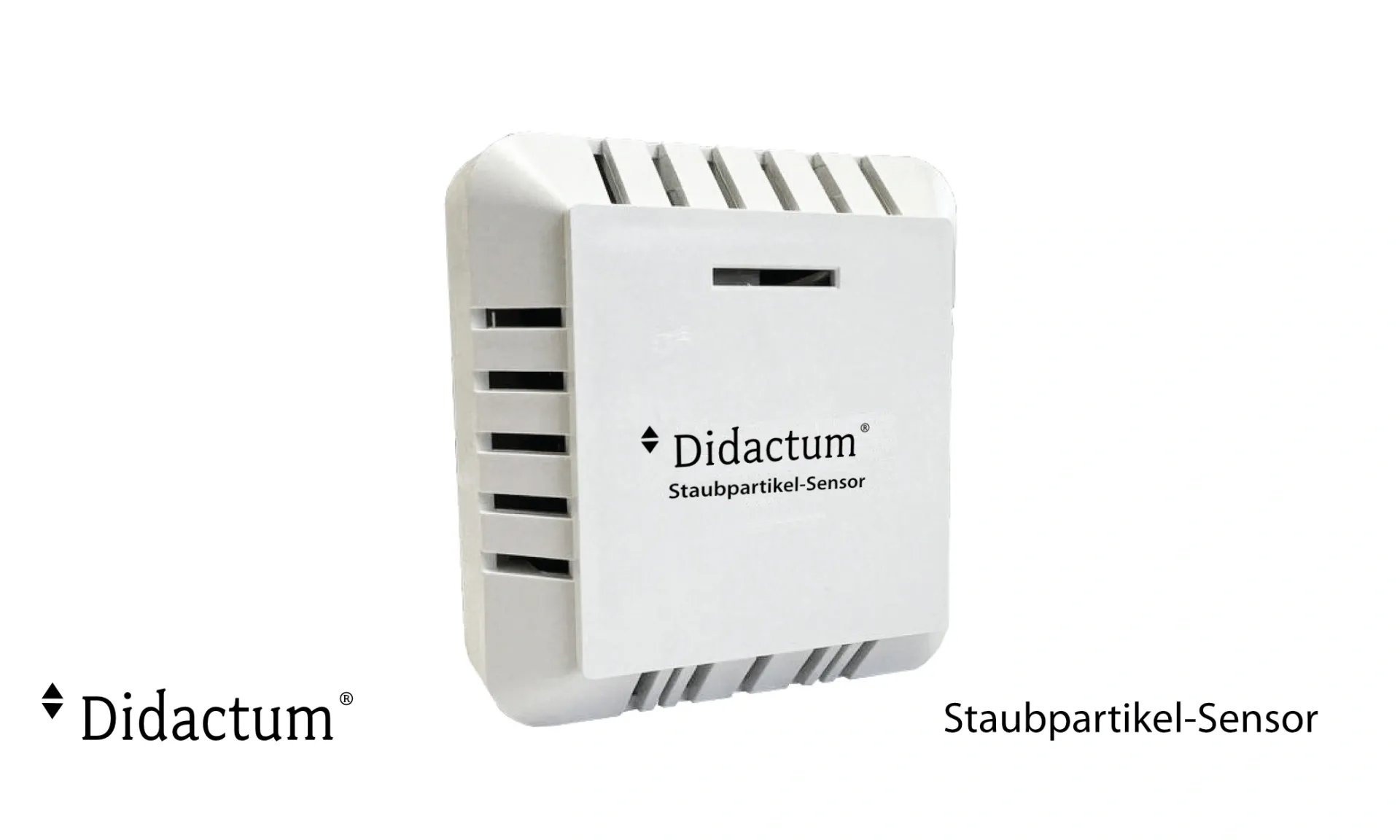

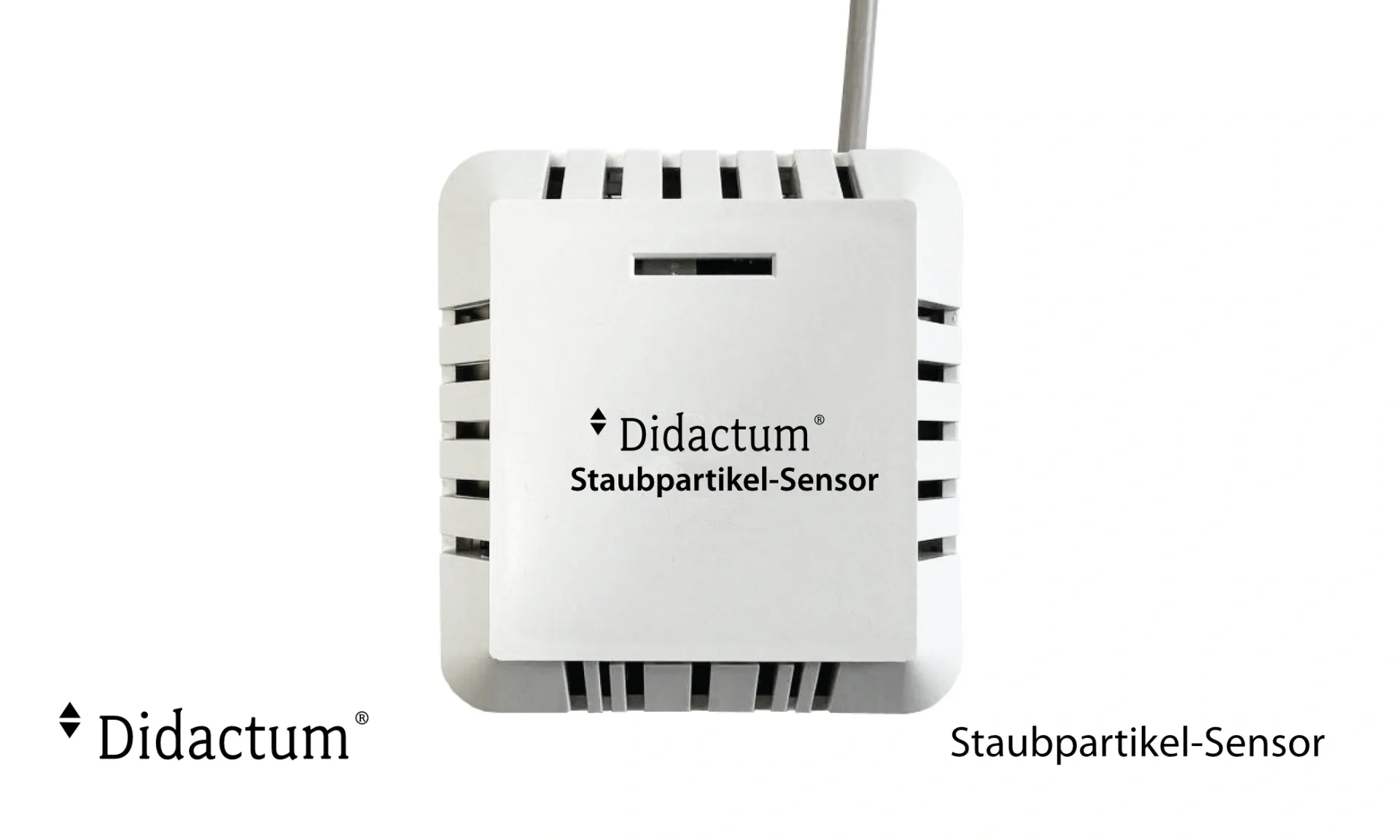

Didactum DI14029 Dust Particle Sensor
The dust particle sensor is used to monitor air quality and pollution levels. It represents a technological breakthrough in the field of particle sensors. Its measuring principle is based on laser scattering and innovative technology to prevent contamination.
The probe enables precise measurements from the very first use and throughout its entire lifespan of more than ten years.

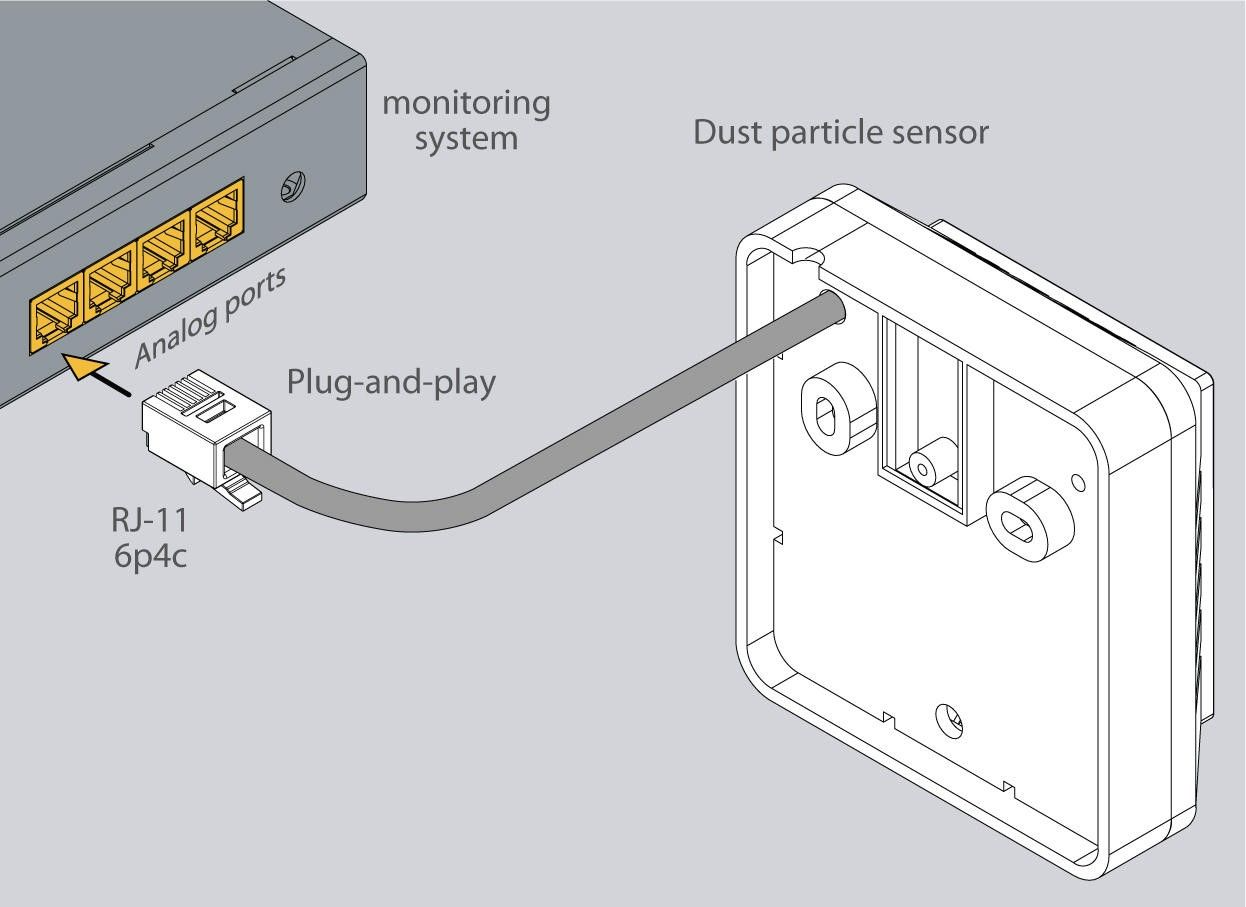

The sensor is an analog sensor and can be connected to any analog port (A1…A8) of the Didactum monitoring unit.
It is ready for immediate use (plug-and-play) and can be configured via logic circuits to trigger events.
Applications
• Data centers and IT facilities: The sensor monitors air quality and pollution levels to protect sensitive electronics from dust and fine particles. This helps prevent equipment failures and extends the lifespan of the devices.
• Industrial environments: In manufacturing or production areas where air quality is critical for processes or worker safety, the sensor can be used to monitor and regulate fine dust in the environment.
Specifications
| Function |
Analog plug-and-play sensor for monitoring air quality and air pollution |
| Application |
Ideal for use in sensitive environments such as data centers, technical rooms, and industrial facilities |
| Connection to Monitoring Systems |
Direct connection to analog ports (A1...A8) of Didactum monitoring systems |
| Event Control |
Configurable for event control via logic rules |

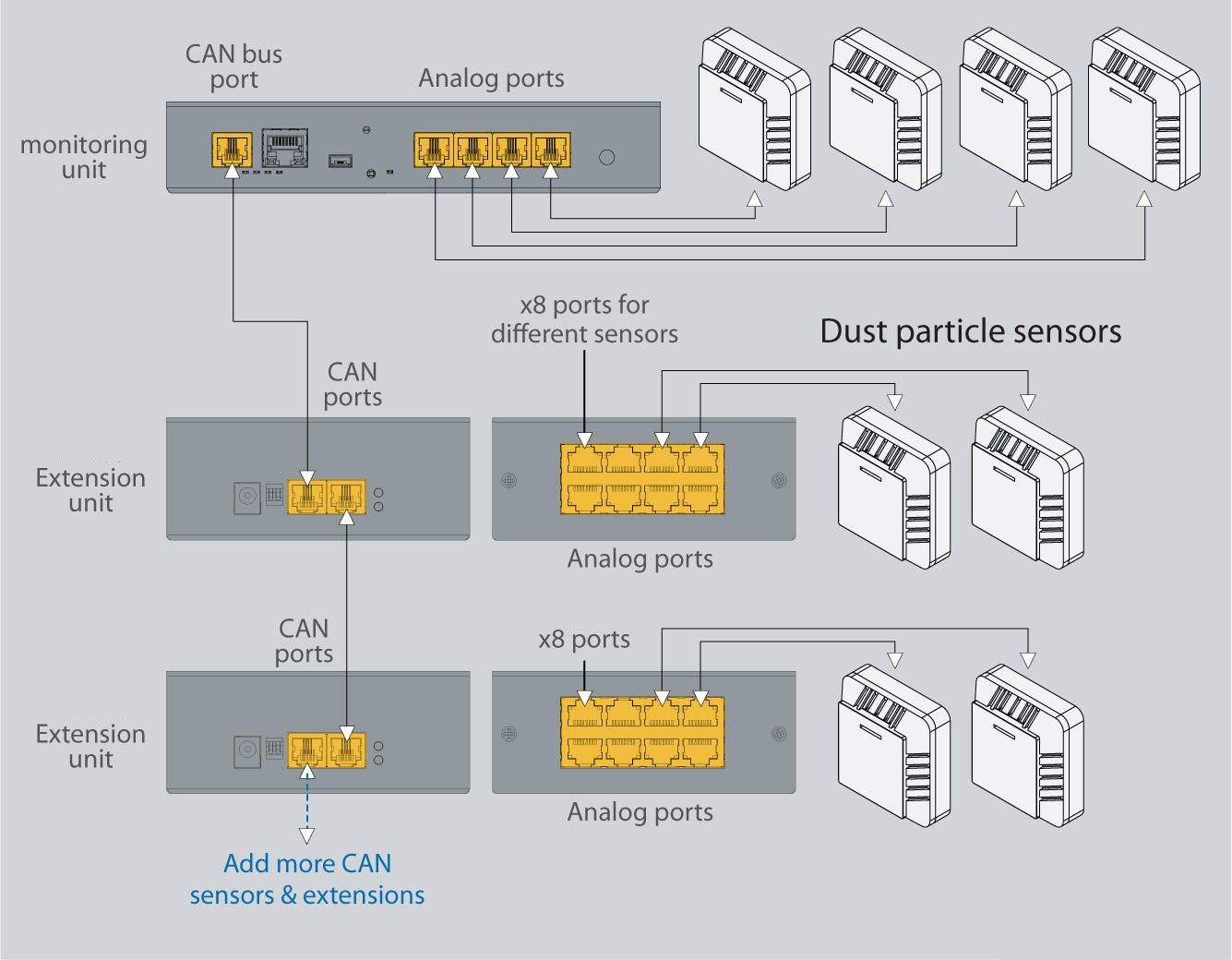

| Expandability |
Expandable via extension unit |
| Technology |
Laser scattering with optical particle counters (OPC) |
| Sensor Technology |
Contamination-resistant sensor technology |
| Measurement Stability |
Long-term stable measurements over more than 10 years |
| Measurement Range |
0 – 1000 µg/m³ |
| Particle Size |
0.3 to 10.5 µm |
| Accuracy |
±10 % |
| Update Interval |
20 minutes |
| Output |

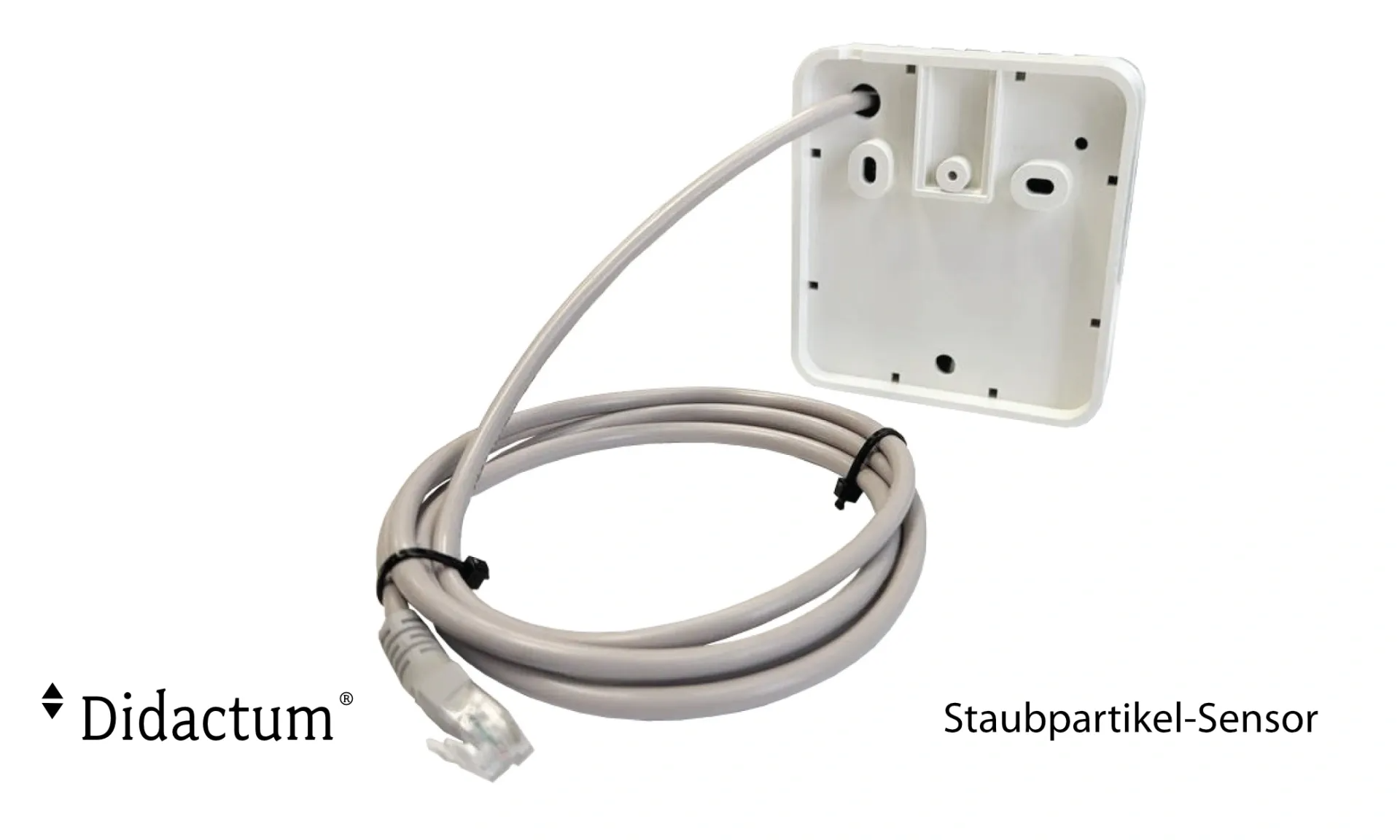

RJ11 (6P4C) |
| Cable Length |
2 m |
| Maximum Distance |
Up to 50 m to the central unit or expansion module |
| Power Consumption |
Max. 400 mW during operation |
| Optimal Operating Temperature |
+10 °C to +40 °C |
| Operating Temperature |
-10 °C to +60 °C |
| Storage Temperature |
-40 °C to +70 °C |
| Optimal Humidity |
20 % to 80 % RH |
| Operating Humidity |
0 % to 95 % RH |

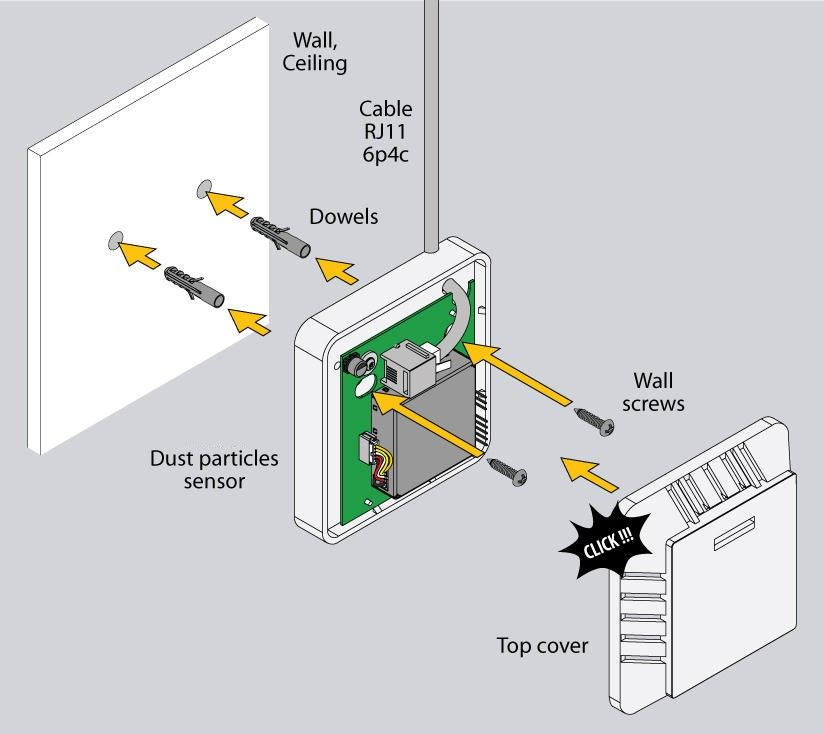

| Mounting |
Wall or ceiling mounting |
| Origin |
EU |
| Certification |
MCERTS |
