Digi Connect EZ 16 EZ16-A100, 16-Port RS-232 Serial Server

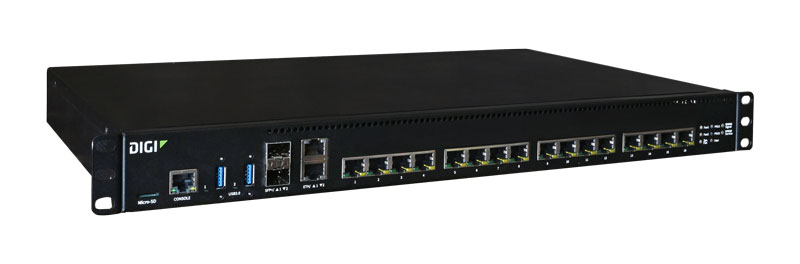

The Digi Connect EZ 16 EZ16-A100 is a 16-port RS-232 serial server designed to connect multiple serial devices to Ethernet networks. It provides 16 RJ45 10-pin RS-232 serial ports with support for essential serial signals and multiple flow control options.
The device features two 10Gb-capable SFP+ sockets and two 10/100/1000 Mbps auto-sensing Ethernet ports. Its RS-232 interface supports TXD, RXD, RTS, CTS, DTR, DSR, DCD, and RI signals, along with XON/OFF, CTS/RTS, and RTS-toggle flow control.

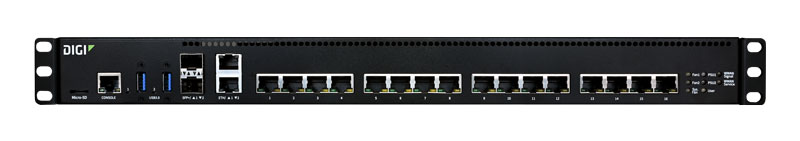

For additional connectivity, the Digi Connect EZ 16 includes a dedicated RJ45 10-pin RS-232 console port, two USB 3.1 Gen 1 Type-A ports, and a Micro XSD socket supporting SD, SDHC, and SDXC media. System and per-port LEDs provide status information for the device and connected interfaces.

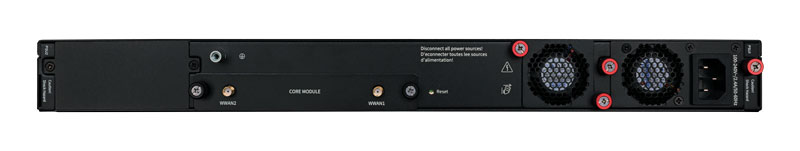

The unit supports single or dual AC input through C13 connectors and dual DC power when used with EZ-AD00 and the supplied Phoenix connectors. It also supports redundant field-replaceable power supplies for improved power availability.
With a compact 1U-style rack form factor and attachable 19-inch rack ears, the Digi Connect EZ 16 measures 25.5 x 44.5 x 4.445 cm. It operates from 0°C to 50°C and supports 5% to 95% non-condensing relative humidity.
Key Features
-
16 x RJ45 10-pin RS-232 serial ports
-
2 x 10Gb-capable SFP+ sockets
-
2 x 10/100/1000 Mbps auto-sensing Ethernet ports
-
Dedicated RJ45 RS-232 serial console port
-
2 x USB 3.1 Gen 1 Type-A ports
-
Micro XSD socket supporting SD, SDHC and SDXC
-
Supports redundant field-replaceable power supplies
-
Attachable 19-inch rack ears and 0°C to 50°C operating temperature
Specifications
| Connections |
|
| SFP+ |
2 x 10 Gb capable SFP+ sockets |
| Ethernet |
2 x 10/100/1000 Mbps (auto-sensing) |
| Serial Ports |
16 x RJ45 10-pin; RS-232 |
| RS-232 / EIA-232 Serial Modes |
Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI |
| Flow Control Options |
XON/OFF, CTS/RTS, RTS-toggle |
| Console |
RJ45 10-pin; RS-232 serial console port |
| USB |
2 x USB 3.1 Gen 1 (Type A) |
| Micro XSD |
SD/SDHC/SDXC socket |
| Physical |
|
| Dimensions (L x W x H) |
25.5 cm x 44.5 cm x 4.445 cm (10.4 in x 17.5 in x 1.75 in) |
| Package Dimensions |
37.5 cm x 57.5 cm x 15.24 cm (14.76 in x 22.64 in x 6 in) |
| Rack Mounting |
Ships with attachable 19” rack ears |
| Package Weight |
5.2 kg (11.5 lb) |
| Status LEDs |
|
| System LEDs |
Power 1, Power 2, Fan 1, Fan 2, Sys Fan, User, WWAN Signal, WWAN Service |
| Per-Port LEDs |
Ethernet, Serial, Console, USB |
| Power Requirements |
|
| AC Power Input |
Single or dual AC input (C13 connector), use with appropriate National Mains cords |
| DC Power Input |
Dual DC power with EZ-AD00, with supplied Phoenix connectors |
| AC Power Consumption |
Single or dual field replaceable, 100 – 240 VAC, ~50 – 60 Hz, 2.4 A max for each power supply |
| DC Power Consumption |
Dual field replaceable, 48 VDC, 2.9 A max for each power supply |
| Replaceable Power Supply |
Product supports redundant replaceable power supplies |
| Environmental |
|
| Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature |
0 °C to 70 °C (32 °F to 158 °F) |
| Relative Humidity |
5% to 95% (non-condensing) |
