| Cellular Connectivity |
|
| 5G NR |
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79 |
| 4G LTE-Advanced Pro |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30,
B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71
|
| 3G HSPA+ |
B1, B2, B4, B5, B6, B8, B9, B19 |

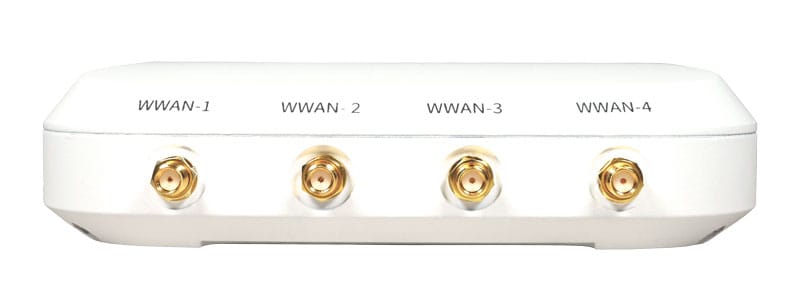

| Antenna Connectors |
(4) 50 Ω SMA (center pin: female) |
| SIM Slots |
(2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate |
| Software & Management |
|
| Software |
Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable |
| Remote Management |
Digi Remote Manager®, security, management, updates, alerts, scheduling and intelligence |
| Local Management |
Web Interface (HTTPS); Command Line Interface (SSH, serial port) |
| Performance |
|
| Ethernet Throughput |
2.5 Gbps |
| Cellular Throughput |
1.4 Gbps |
| IPsec VPN Throughput |
500 Mbps |
| VPN Tunnels |
10 tunnels |
| Client Count |
256 clients (typical) |
| Processor |
|
| Application Processor |
ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit |
| Memory |
|
| Memory |
512 MB RAM, 512 MB flash |
| Ethernet |
|
| Ethernet |
(2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing) |
| Wi-Fi |
|
| Radios |
Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO;
2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
|
| Antennas |
Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain |
| Security |
Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise |
| Modes |
(4) Wi-Fi access points; (2) Wi-Fi clients, (256) Wi-Fi users (typical) |
| Serial |
|
| Serial |
(1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network, software selectable |
| Environmental |
|
| Operating Temperature |
−30 °C to 60 °C (−22 °F to 140 °F) with Power over Ethernet or industrial-rated
power supply; 0 °C to 40 °C (32 °F to 104 °F) with included commercial-rated power supply
|
| Accessories |
|
| Included Accessories |
DC power supply, mounting hardware, Ethernet cable, serial cable and antennas |
