Product Code: RUEL-071
MPN #: IX40-05
Are you tired of dealing with slow and unreliable internet connections for your business or organization? Do you need a secure and fast way to connect your devices to the internet? Look no further than the Digi IX40-05, 5G IoT Router with LTE-Advanced Pro Cat 19 4x4 and 3G fallback. This powerful router is designed to provide you with a fast and reliable internet connection, no matter where you are. With its advanced technology and features, it is the perfect solution for anyone who needs a secure and fast internet connection. The Digi IX40-05 is a game-changer for businesses and organizations that require a reliable internet connection to function efficiently.
The Digi IX40-05 solves the problem of slow and unreliable internet connections by providing a fast and secure way to connect your devices to the internet. This problem matters to users because it can cause a significant decrease in productivity and efficiency. The Digi IX40-05 gives a clear solution by providing a reliable and fast internet connection, no matter where you are. With its advanced technology and features, it is the perfect solution for anyone who needs a secure and fast internet connection. The Digi IX40-05 is designed to provide a reliable and fast internet connection, making it the perfect solution for businesses and organizations that require a fast and secure internet connection to function efficiently.
| Product | Digi IX40 with Digi 360 |
| Solution | 5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0 |
| Cellular / WWAN Connectivity | 5G NSA, 5G SA*, 4G LTE-Advanced Pro Cat 19 |
| 5G NR Bands |
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48 CBRS, n66, n71, n75, n76, n77, n78, n79, C-band |
| 4G LTE-Advanced Pro Bands |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48 CBRS, B66, B71 |
| 3G Bands | B1, B2, B3, B4, B5, B6, B8, B19 |

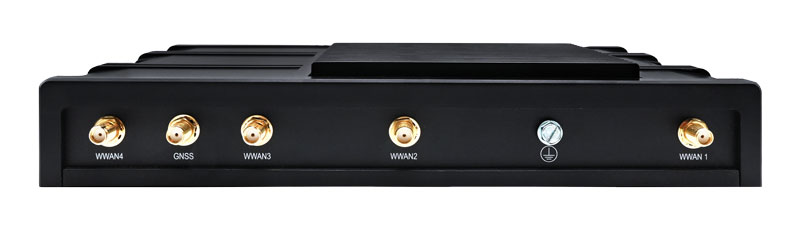

| Cellular Connectors | (2) or (4) 50 Ω SMA; center pin: female |
| SIM Slots | (2) nano-SIM (4FF) |
| eSIM Support | Digi eSIM optional 2FF accessory for remote carrier switching |

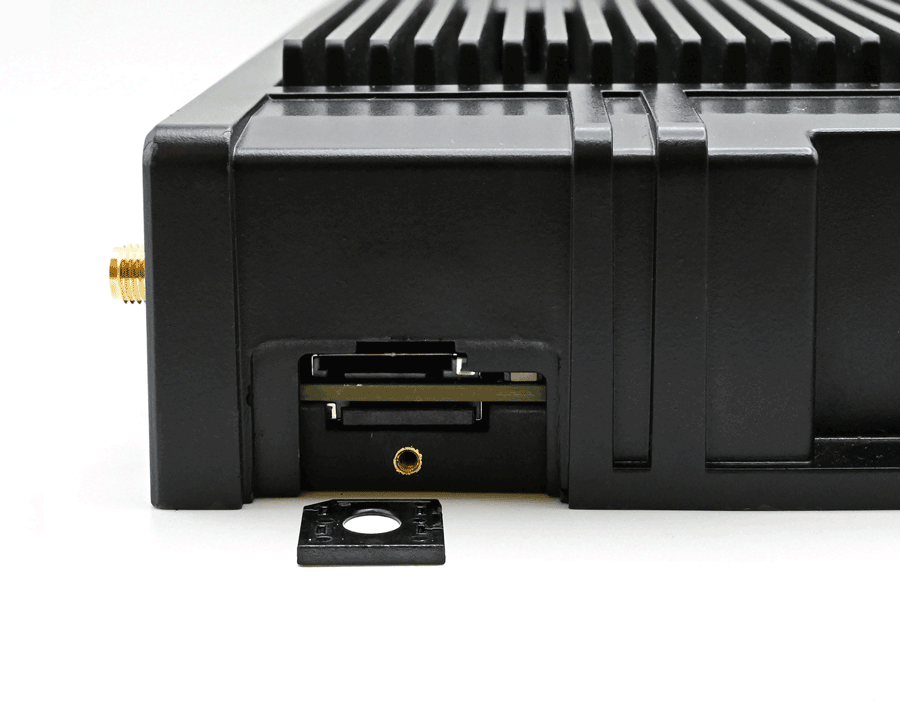

| SIM Security | SIM slot cover plate included |
| GNSS | GPS Gen 9 with band L1 LNA for passive antenna use |
| GNSS Bands | GPS L1; Glonass G1; Beidou B1; Galileo E1 |
| GNSS Antenna Support | Passive GNSS antennas rated at 1.5 to 3 dBi or active antennas with 7.5 to 26 dB gain |
| GNSS Protocols | NMEA 4.11 and TAIP |
| GNSS Connector | (1) 50 Ω SMA; center pin: female |

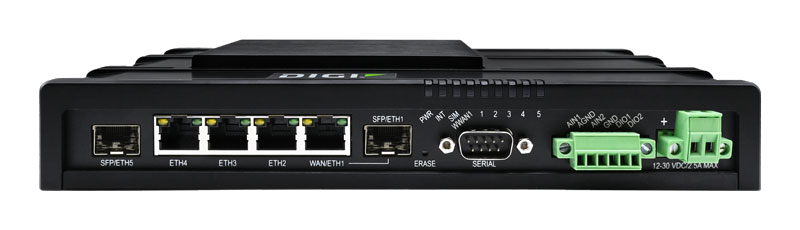

| Ethernet | (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN |
| I/O | (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution) |
| SFP | (2) 1 Gb capable SFP sockets |
| Serial | (1) RS-232/422/485; DB-9 male (DTE) |
| Remote Management | Digi Remote Manager®, SNMP v1/v2c/v3 (user installed/managed), SMS |
| Local Management | web UI (HTTPS); CLI (SSH, serial) |
| Management Tools | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| Processor | 1.6 GHz quad-core i.MX 8M Plus ARM® Cortex®-A53 processor |
| Memory | 1 GB RAM / 8 GB flash |
| Dimensions (L x W x H) | 234 mm x 154 mm x 41 mm (9.21 in x 6.06 in x 1.61 in) |
| Weight | 1.14 kg (2.51 lb) |
| Status LEDs | Power, WWAN, Ethernet (link, activity) |
| Enclosure / Rating | C1D2 rated glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F) |
| Power Input | 12 to 30 VDC |
| Power Connector | screw down removable terminal block |
| Power Consumption | 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic) |
| Hazardous (Class 1 Div 2) | complete |
| Operating Temperature | −40 °C to 75 °C (−40 °F to 167 °F); reduced cellular performance may occur above 70 °C (158 °F) |
| Storage Temperature | −45 °C to 85 °C (−49 °F to 185 °F) |
| Relative Humidity | 0% to 95% (non-condensing) at 25 °C (77 °F) |
