| Overview |
|
| Model |
TX64 |
| Manufacturer |
Digi International |
| Memory |
|
| Flash Memory Installed |
8 GB |
| RAM Installed |
2 GB |
| Network & Communication |
|
| Broadband Transmission Technology |
2.4 GHz / 5 GHz |
| Cellular Data Connectivity Technology |
LTE Advanced Pro |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3 |
| Connectivity Technology |
Wired, Wireless |
| Data Link Protocols |
Bluetooth 4.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, I
EEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
| Data Transfer Rate |
1.733 GBps |
| Form Factor (Hubs & Switches) |
Desktop |
| Integrated Switch |
4-port switch |
| Key Features |
Firewall, USB port, VPN support |
| Network Standard |
DDNS, DHCP, FTP, IPSec |
| Product Type |
Wireless router |
| Remote Management |
HTTP, HTTPS, NTP, SCP, SFTP, SMTP, SNMP 2, SNMP 3, SSH |
| Routing Protocol |
BGP, GRE, IPv4-to-IPv6 Multicast, OSPF, RIP-1, RIP-2, VRRP |
| Status Indicators |
LAN, Link/activity, Power, Service, Signal |
| WAN Ports Quantity |
1 |
| Wireless LAN |
802.11a/b/g/n/ac, 802.11a/b/g/n/ac Wave 2, Bluetooth 4.2 |
| Modem |
|
| Installed Quantity |
2 |
| Expansion Slots |
|
| Expansion Slots |
4 (total) / 4 (free) x Mini-SIM |
| Connectivity |
|
| Interface Provided |

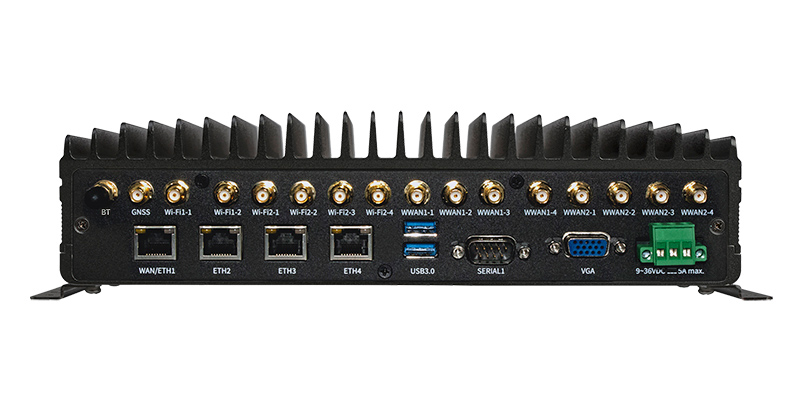

Antenna: 1 x - Bluetooth, Antenna: 1 x SMA - GPS, Antenna: 6 x RP-SMA - Wi-Fi,
Antenna: 8 x SMA - LTE, LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45,
Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 3.0: 3 x 9 pin USB Type A,
Video: 1 x VGA - 15 pin HD D-Sub (HD-15), WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
|
| Power |
|
| Power Consumption Operational |
28 watt |
| Power Provided |
60 watt |
| Required Voltage |
DC 9 - 36 volt |
| Technical Information |
|
| Antenna Form Factor |
External detachable |
| Antennas |
16 |
| Built-in Devices |
Beidou, Galileo, GLONASS, GPS |
| Max Operating Temperature |
158 degree Fahrenheit |
| Min Operating Temperature |
-22 degree Fahrenheit |
| Operating Humidity |
5 - 95% (non-condensing) |
| Product Information |
|
| Authentication Method |
RADIUS, TACACS+, X.509 certificates |
| Country |
Worldwide |
| Device Type |
External power adapter |
| Packaged Quantity |
1 |
| Product Type |
Wireless cellular modem |
| Service Activation |
No |
| Dimensions & Weight |
|
| Height |
2.6 inch |
| Width |
10.2 inch |
| Depth |
7.7 inch |
| Weight |
7.28 lbs |
| Physical Characteristics |
|
| Color Category |
Black |
