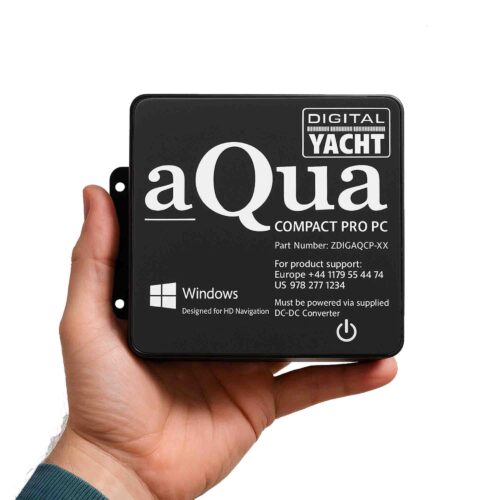

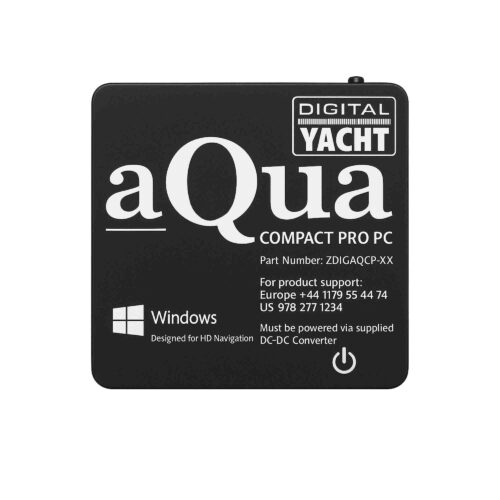

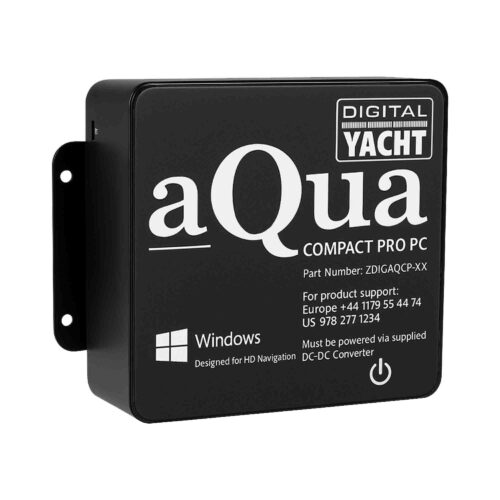

Digital Yacht Aqua Compact Pro+, Intel Core i7 8GB/480GB Marine PC
The Aqua Compact Pro + utilises the latest generation Intel Core i7 processor for modern 3D charting and radar overlay applications. Despite this, average power consumption is around 25W keeping battery drain to a minimum.
The new Aqua Compact Pro+ now has a larger rugged 480GB solid state hard drive too and its fitted with 8GB of RAM. In terms of connectivity, there are 4 x USB ports and an audio headset connector.
The new unit supports up to 3 displays via dedicated HDMI connector and also a Thunderbolt/USB C connector which can support displays with an appropriate cable. 7.1 multichannel digital audio is supported over these display connections too so it’s ideal as an on board media entertainment centre.
Network connectivity is provided by a wired Ethernet Gigabit port as well as the latest Intel wifi card which supports 802.11ax protocols (2.4 and 5GHz with up to 3x bandwidth) and has built in Bluetooth 5 for easy connectivity
The Aqua Pro+ has found markets in commercial fishing where users want charting, radar and bathmetry/sonar overlays which demand fast 3D graphics. The Aqua Compact Pro+ is optimised for Maxsea TimeZero systems. We are also seeing many ocean racing yachts opt for these systems for the best in class animated weather routing displays. The new Aqua Compact Pro+ is also supplied with an external voltage stabiliser to ensure 100% reliability on low voltage systems which are affected by volt drops.
Key Features
- The perfect solution for demanding navigation applications like MaxSea/Nobeltec TimeZero even with radar and 3D integration
- Direct 12v DC Operation (8-19v input), approx 25W power consumption
- Intel i7 processor (latest generation)
- 8GB RAM memory and super fast 480GB rugged solid state drive
- 3 x display outputs – full size HDMI and USB C
- Bluetooth 5 and Dual Band WiFi built in (plus wired gigabit network port)

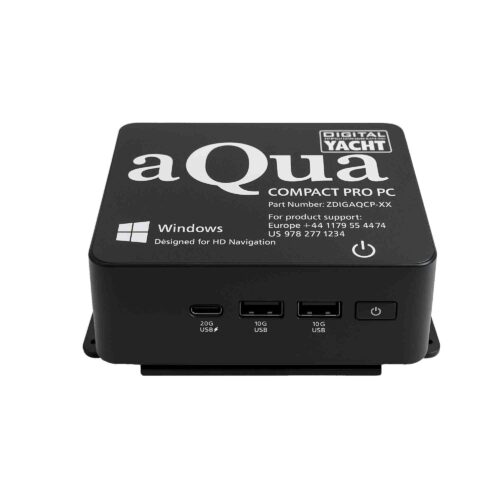

- 4 x USB Type-A ports with charging mode on front panel port
- 2 x Thunderbolt ports
Specifications
| Applications |
|
| Navigation Applications |
The perfect solution for demanding navigation applications like MaxSea/Nobeltec
TimeZero even with radar and 3D integration
|
| Processor & Memory |
|
| Processor |
Intel i7 processor (latest generation) |
| RAM |
8GB RAM memory |
| Storage |
|
| Solid State Drive |
480GB rugged solid state drive |
| Power |
|
| Operation |
Direct 12v DC Operation (8-19v input), approx 25W power consumption |
| Voltage Stabiliser |

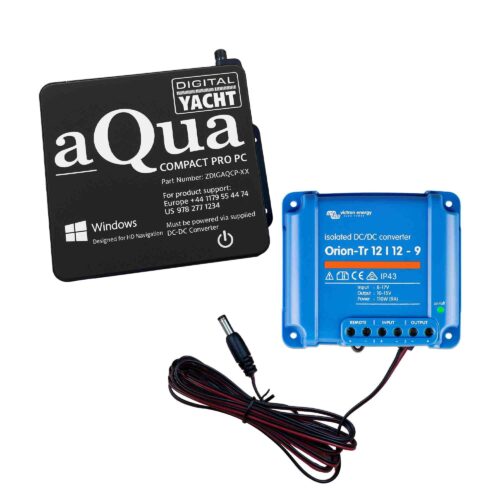

The new Aqua Compact Pro+ is also supplied with an external voltage stabiliser to
ensure 100% reliability on low voltage systems which are affected by volt drops.
|
| Display & Audio |
|
| Display Outputs |
3 x display outputs – full size HDMI and USB C |
| Digital Audio |
7.1 multichannel digital audio is supported over these display connections too so its ideal as an on board media entertainment centre. |
| Audio Jack |
Front panel mounted audio jack for audio in/out – ideal as media center |
| Networking |
|
| WiFi |
Bluetooth 5 and Dual Band WiFi built in (plus wired gigabit network port) |
| Ethernet |
1 x Ethernet port |
| Bluetooth |
Bluetooth 5 |
| USB & Expansion |
|
| USB Ports |
4 x USB Type-A ports with charging mode on front panel port |
| Thunderbolt |
2 x Thunderbolt ports |
| Operating System |
|
| Operating System |
Windows 11 operating system |
| Linux |
LINUX option at no extra charge |
| Additional Features |
|
| Microphone |
Built in mic for Cortana speech control and recognition |
| Mechanical |
|
| Dimensions |
Just 115mm x 110mm x 50mm |
| Mounting |
Easy installation with supplied mounting bracket |
