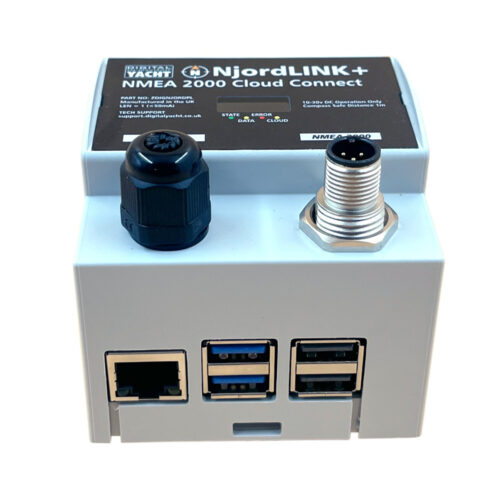

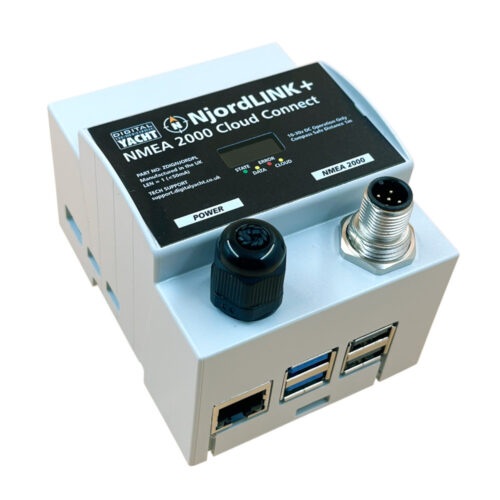

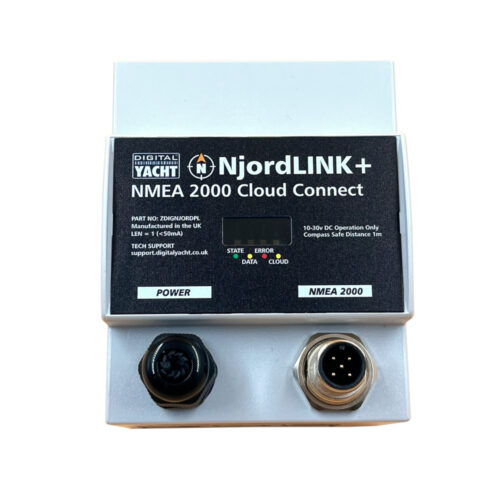

Name: Digital Yacht NjordLINK+, Secure NMEA 2000 to Cloud Gateway for Boat Monitoring
Brand: Digital Yacht
SKU: GTWY-136
Price: 679.99 USD
Availability: InStock

Description
Documents
Reviews

Digital Yacht NjordLINK+, Secure NMEA 2000 to Cloud Gateway for Boat Monitoring

In today’s connected world, your house, car and smart devices ping data to the cloud for monitoring, control and peace of mind – and even diagnostics such as service requirements or software updates. But how about your boat?

Now there’s a solution – NjordLINK+ takes an innovative, universal and low-cost approach – yet still delivers the best in encryption, privacy and a new generation of applications.

NjordLINK+ brings ALL your boat’s NMEA 2000 data to the secure Njord cloud and opens your boat to the world of Njord apps and connectivity. It also works with any format of internet connection, from WiFi hotspot, 4G/5G on board systems or Starlink.

It’s a new concept in marine technology so you’ll see the platform quickly evolve – but start thinking about boating in a different way from smart anchoring, historical analysis and predictive maintenance for engines and advanced AI. Literally, if you think it, the Njord cloud can do it!

It doesn’t need expensive, custom sensors as it connects to industry standard NMEA 2000 systems and utilises that data to give you granular information with regular updates as you decide.

Plus! NjordLINK+ is bi-directional so cloud apps can send data back to the boat. For instance – electrical switching, messaging or alerting.

Connect your NMEA 2000 devices and network to the cloud and take advantage of remote monitoring, historical analysis, new applications and AI thanks to Njord cloud.

APPLICATIONS

Universal – Fits to any NMEA 2000 system and brings ALL your boat data to the Njord platform. NjordLINK+ will connect to any internet solution you have on board – hotspot, 4G/5G system or Starlink/satellite
Simple Install – Use the NjordLINK+ app to set up your cloud service and account
Secure – Encrypted end to end data ensures your privacy
Applications – Rethink boating with apps such as AnchorSafe and 100’s more to come
Boat Owners – Peace of mind 24×7 monitoring of your boat and next generation navigation and utility applications
Developers – App development made easy with open-source library and easy coding
Boat Builders – Fit to every boat and create your dedicated platform of connected boats for exceptional service capability
Equipment Manufacturers – Bring your systems to the cloud for remote diagnostics, updates and applications

NJORDLINK APPS & CLOUD

The NjordLINK+ app is free on your app store and gets your account created and your NjordLINK+ device connected in seconds.

The app provides a simple chart and data display page showing the boat’s current position, course, speed and depth information from your boat’s NMEA 2000 network so you can always get reassurance of your boat’s current status.

The data display provides additional information showing which NMEA 2000 device is providing data.

As apps develop, you’ll be able to access them via this platform or via the web.

Unlike many systems, your boat data is end to end encrypted and you can decide who has access from friends and family, fellow boaters or technicians and service agents.

You can download the Njordlink+ app on the iOS store.

INSTALLATION

NjordLINK+ is very simple to install

Fits in seconds – wire its integral power cable to a fused (5A) 12v or 24v DC supply and plug in a standard NMEA 2000 cable (not supplied) between the backbone and the NjordLink+
The NjordLINK+ app can be used to connect the NjordLink+ to your boat’s wireless network or for ultimate reliability connect NjordLink+ to your boat’s local area network using a standard RJ45 network cable
Any internet connection is fine from a simple phone or mifi hotspot, to a dedicated 4G/5G router or Starlink/satellite system – there’s no need for an additional or proprietary data plan
NjordLINK+ reliably gets a connection to the cloud whenever available and reconnects seamlessly if a connection is lost, forwarding the data it saved whilst the connection to the internet was lost

Key Features:

NMEA 2000 to Cloud Connectivity
The gateway to connect your boat to the cloud for remote monitoring, security, tracking, exciting apps and diagnostics
Edge device with local processing, storage and cloud connectivity
Bi-directional enabled for vessel to cloud and cloud to vessel capability
Industry leading secure, encrypted and private connection
DC 12/24v operation or optional AC power
Certified NMEA 2000 interface
LAN (wired) port for additional connectivity
Integrated Wireless and Bluetooth
Connects to any internet source – wifi, 4G LTE or satellite service – via LAN or wifi
App available for iOS and Android to get NjordLINK+ connected to any wireless or wired network
DIN rail mountable

Specifications:

Product Type	NMEA 2000 to Cloud Gateway
Model	NjordLINK+
Application	Boat Monitoring, Remote Monitoring, Security, Tracking, Diagnostics and Cloud Applications
NMEA 2000 Connectivity	Certified NMEA 2000 interface
NMEA 2000 Network	Compatible with NMEA 2000 systems
NMEA 2000 Connector	Male NMEA 2000 connector
NMEA 2000 Cable	Standard Micro NMEA 2000 cable, not supplied
NMEA 2000 Drop Cable Length	<6 m
NMEA 2000 Load Equivalency	LEN = 1
Cloud Connectivity	NMEA 2000 to Cloud
Cloud Communication	Bi-directional vessel-to-cloud and cloud-to-vessel
Cloud Platform	Njord Cloud
Internet Connectivity	WiFi, 4G LTE, 4G/5G and satellite
Satellite Connectivity	Starlink/satellite systems supported
Wireless Connectivity	Integrated Wireless and Bluetooth
WiFi	Connects to vessel wireless network
Wired Network	LAN / Ethernet
Ethernet Connector	RJ45
Data Processing	Local edge processing
Internal Storage	30GB
Data Storage During Internet Loss	Stores NMEA 2000 data locally and uploads it when connection is restored
Data Security	End-to-end encrypted connection
Privacy	User-controlled data access
Mobile App	NjordLINK+ app
Mobile Platforms	iOS and Android
App Functions	Cloud service setup, network connection and boat data monitoring
Displayed Boat Data	Position, course, speed and depth
Power Input	12/24V DC
Optional Power	AC power
Power Supply	Integral power cable
Fuse Requirement	5A fuse/circuit breaker
Maximum Current Handling	5A
Mounting	DIN rail mountable
Installation Location	Below deck, dry and protected area
Compass Safe Distance	0.5 m
Operating Principle	Automatically reconnects when internet connection is restored
Internet Data Plan	No additional proprietary data plan required
Dimensions	105 × 72 × 32 mm
Weight	200 g
Antenna	Integrated WiFi antenna
Installation	Simple installation using NMEA 2000 connection and 12/24V DC power
Applications	Remote Monitoring, Security, Tracking, Historical Analysis, Predictive Maintenance, Diagnostics and Cloud Applications
