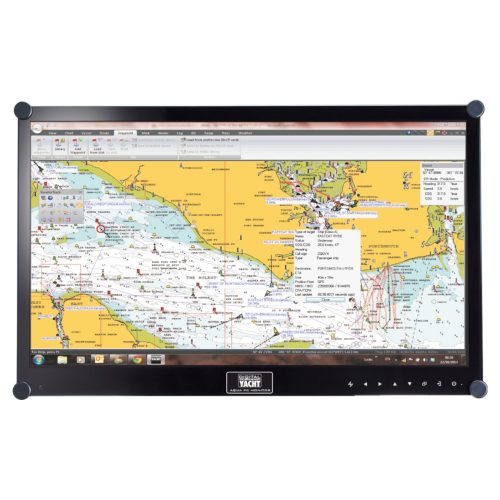

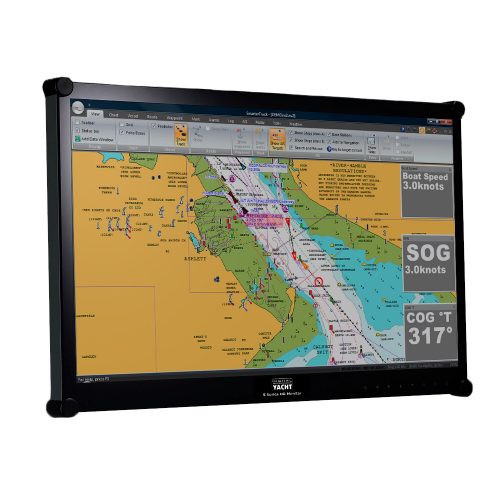

Digital Yacht S124, 1920 x 1080 pixel 23.5” HD LCD Marine Monitor

When a boat needs a larger screen for navigation, radar, charting, or PC-based marine applications, a standard desktop monitor may not be practical for a vessel environment. The Digital Yacht S124 provides a large Full HD display with multiple video inputs, dimmable brightness, flexible mounting, and DC power operation for onboard use.

Digital Yacht S124, 1920 x 1080 pixel 23.5” HD LCD Marine Monitor

The Digital Yacht S124 is an HD LCD marine monitor designed for use onboard vessels where a clear and spacious display is needed. Its 23.5-inch screen provides a 1920 x 1080 pixel resolution, making it suitable for displaying navigation software, charts, radar interfaces, vessel monitoring screens, and other PC-based marine applications. It is specifically suited for use with the Aqua Compact Pro PC range.

The monitor provides a 170H/160V viewing angle, allowing the screen to remain visible from different positions around the helm or workstation. The 2M:1 contrast ratio and 300CD brightness help produce a clear image, while the dimmable display allows brightness to be adjusted for different onboard lighting conditions, including darker bridge or cabin environments.

For connecting different marine computers and video sources, the S124 includes HDMI, VGA, Display Port, and DVI inputs. It also supports a picture-in-picture display option, which can be useful when viewing information from multiple compatible sources. A 3.5mm audio input is provided, with audio also available through HDMI when supported by the connected source.

The monitor is designed with flexible installation in mind. It measures 56 x 35 x 6cm and can be flush mounted using the supplied studs or installed on a standard VESA mount using either 75mm or 100mm mounting points. This gives installers flexibility when integrating the display into a helm console, navigation station, workstation, or other onboard mounting location.

Power requirements are suited to marine DC systems, with 8-17V DC operation and 25-50W power consumption, while a 24V option is also available. Built-in 2W speakers provide onboard audio without requiring a separate speaker system, making the S124 a practical display solution for marine PCs and other compatible video equipment.

Key features

• 23.5” HD LCD marine monitor
• 1920 x 1080 pixel display
• 170H/160V viewing angle
• 2M:1 contrast ratio
• 300CD brightness with dimmable display
• HDMI, VGA, Display Port and DVI inputs
• Picture in picture display option
• Flush mount or 75mm/100mm VESA mounting
