Digital Yacht ZDIG4GNXX-US, NeXuX Connect Marine LTE/4G Router

Digital Yacht ZDIG4GNXX-US, NeXuX Connect Marine LTE/4G Router

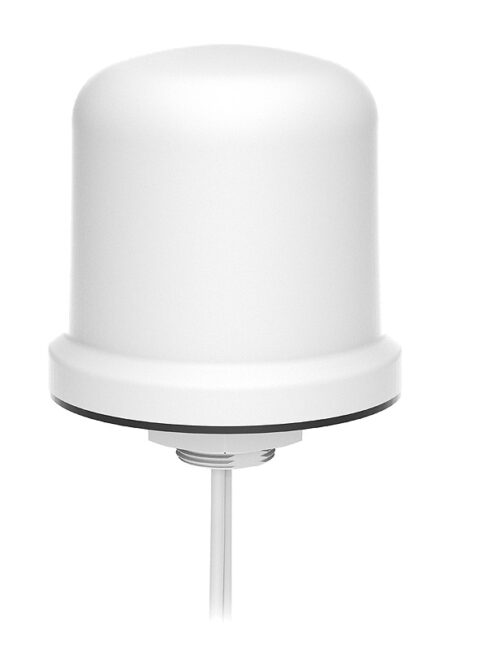

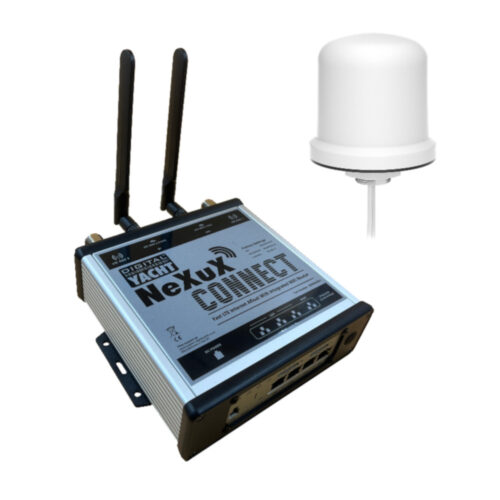

NeXuX Connect brings internet access on board with LTE/4G MIMO technology for range and speed. For easy installation, it ships as a complete package with a compact dome antenna and 7m cables.

Using MIMO technology and the external wide band LTE antenna, NeXuX Connect offers fast connectivity at up to 300 MBs (network dependent).  It has a built in dual band wifi router supporting multiple connections, dual SIM slots (with auto fail over if required) and built in GPS (for anchor alarm & tracking applications).

The external antenna makes coastal internet readily achievable and internet sharing on board for everyone.  Typical ranges are up to 12-15nm from the coast so it doesn’t have the range of the dual antenna 4G Xtream solution but is attractively priced, easy to install and may suit many small boats looking for on board connectivity or work from boat solutions.

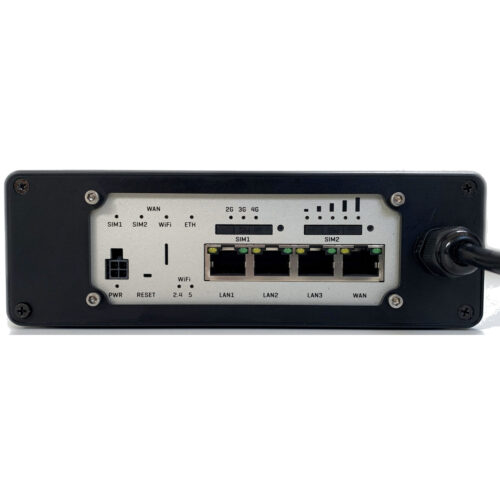

The NeXuX Connect features dual band (2.4 & 5GHz) wireless connections so users on board simply search for the secure WiFi point and connect.  There’s also 3 LAN ports (10/100MBs) for wired devices like Smart TVs and a WAN port which is optimised for Starlink satellite connectivity allowing the NeXuX Connect to act as a sophisticated and fast router for all on board internet communications.

CONFIGURATION:

Configuration is very simple. Just insert the SIM cards. The NeXuX Connect has two standard SIM slots and it is possible to fit two SIMs from two different network operators. By default, the NeXuX Connect will query the SIM that is installed and automatically select the APN settings from its internal database.

However, it is very important that you “lock down” your wireless network, with your own network name (SSID) and wireless password. This task only takes a couple of minutes.

FEATURES:

• Hi speed, affordable internet with latest Cat 6 modem technology and MIMO dual element antenna for up to 300MBs connectivity
• Easy installation with single (dual element) external antenna that fits standard 1” mounts
• 23 ft (7m) low loss LMR 200 cable kit included (one antenna, two cables)
• Dual band Wi-Fi with external Wi-Fi bridge (2.4/5GHz) for marina hotspots
• Dual SIM
• SIM unlocked for any network provider
• 3 x LAN and 1 x WAN for Starlink compatibility
• Ideal Starlink and general-purpose on-board router
• Integrated GPS tracking and SMS alerting
