Tired of missing data from remote sites because your sensor dies or loses signal? The Dragino SN50v3-LB-EU868 Waterproof Long Range Wireless LoRa Sensor Node is built to survive harsh weather and send reliable readings over many kilometres. It solves the common problem of unreliable outdoor monitoring, giving you continuous information without frequent battery changes.

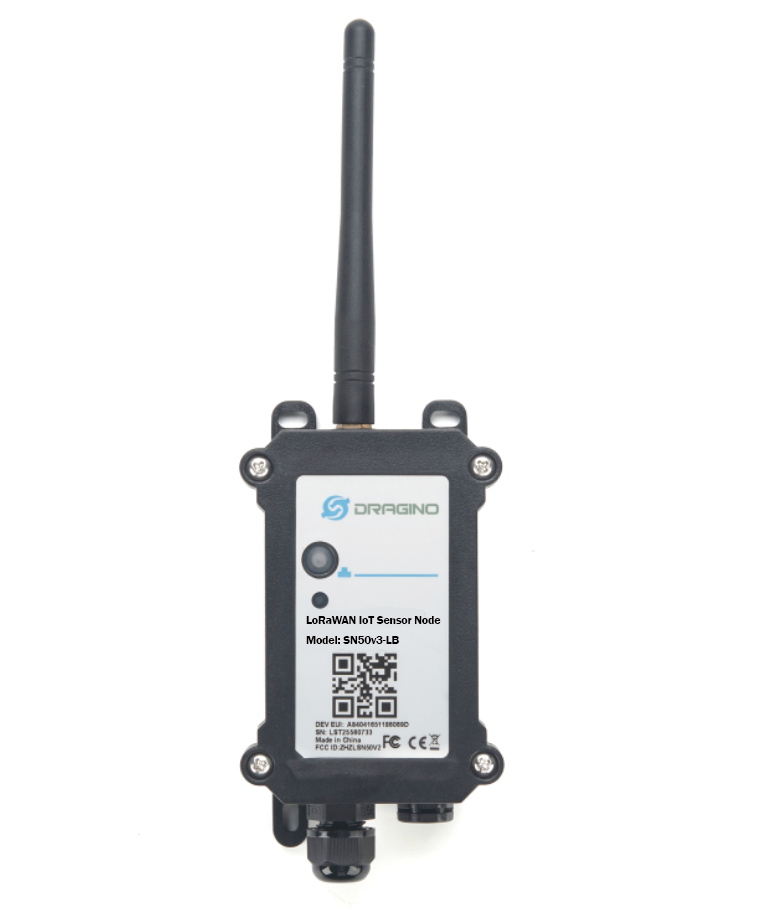

Dragino SN50v3-LB-EU868 Waterproof Long Range Wireless LoRa Sensor Node
Many farms, water utilities and smart city projects need a sensor that can stay online for years in rain, snow or dust. When a node fails, the whole data set becomes incomplete and decisions suffer. This Dragino node offers IP66 protection, a long-life 8500 mAh battery and LoRaWAN range that reaches dozens of kilometres, so you keep every data point alive. The node also includes a controllable 5 V output, allowing you to drive small pumps or alarms directly from the sensor. Its compact design fits into tight mounting spots, making installation quick and painless.
Key Features
- Frequency band EU868 MHz for European LoRa networks.
- LA66 module provides +22 dBm constant RF output.
- RX sensitivity down to -139 dBm for reliable reception.
- Supply voltage 2.5 V-3.6 V from built-in battery.
- Operating temperature range -40 C to 85 C.
- Three digital I/O pins with interrupt capability.
- Three one-wire interfaces for DS18B20 style sensors.
- One UART and one I2C port for flexible expansion.
- 5 V controllable output for powering small actuators.
- Sleep mode consumption only 5 A at 3.3 V.
- Maximum continuous current 130 mA and boost current 2 A for short bursts.
- LoRaWAN support for OTAA and ABP activation methods.
Note: This product is compatible with UK, Europe, and other EU868-supported countries. Not compatible with USA/Canada (US915), Australia (AU915), or other LoRaWAN frequency regions.
Specifications
| Common DC Characteristics |
|
| Supply Voltage |
Built-in battery, 2.5V ~ 3.6V |
| Operating Temperature |
-40 ~ 85°C |
| Module |
LA66 |
| Uplink Method |
LoRaWAN, OTAA, ABP |
| Frequency band |
EU868 MHz |
| Enclosure |
LoRaWAN, OTAA, ABP |
| IP Rate |
IP66 |
| I/O Interface |
|
| Battery Output |
2.6V ~ 3.6V (depends on battery) |
| +5V Output |
Controllable output |
| Digital I/O |
3 × Interrupt or Digital IN/OUT pins |
| One-Wire Interface |
3 × one-wire interfaces |
| UART Interface |
1 × UART interface |
| I2C Interface |
1 × I2C interface |
| LoRa Specification |
|
| Frequency Range |
Band 1 (HF): 862 ~ 1020 MHz |
| Max RF Output |
+22 dBm constant RF output |
| RX Sensitivity |
Down to -139 dBm |
| Performance |
Excellent blocking immunity |
| Battery |
|
| Type |
Li/SOCl₂ non-rechargeable battery |
| Capacity |
8500 mAh |
| Self-Discharge |
<1% / year @ 25°C |
| Max Continuous Current |
130 mA |
| Max Boost Current |
2 A (1 second) |
| Power Consumption |
|
| Sleep Mode |
5 µA @ 3.3V |
| LoRa Transmit Mode |
125 mA @ 20 dBm, 82 mA @ 14 dBm |
