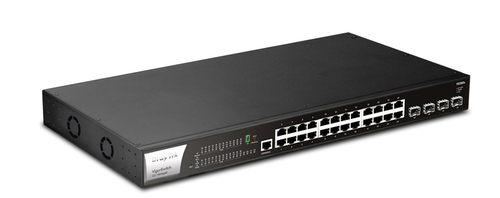

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.
Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.
The PoE VigorSwitch P2282x comes with 24 Power over Ethernet (PoE) ports, allowing you to easily power and connect multiple devices such as IP cameras, wireless access points, and VoIP phones.
With a total power output of 400 watts, it ensures stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.
Specifications
| Management features |
| System event log |
Yes |
| Traffic classification |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC/DC |
| Console port |
RJ-45 |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Data transmission |
| Forwarding rate |
95.2 Mpps |
| Switching capacity |
128 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| IGMP snooping |
Yes |
| Access Control List (ACL) rules |
512 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Market segment |
Business |
| LED indicators |
LAN |
| Reset button |
Yes |
| Performance |
| Firmware upgradeable |
Yes |
| Power |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
400 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Warranty period |
2 year(s) |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
4.26 kg |
| Height |
44 mm |
| Depth |
281 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Packaging data |
| Package type |
Box |
| Certificates |
| PSTI certified |
Yes |
