Imagine a power outage that hits your office while critical data is being saved. Your servers shut down, you lose hours of work, and the cost piles up. The Eaton 9PX 6kVA 208V 3U Rack/Tower Online/Double-conversion UPS is built to stop that nightmare. It supplies clean, uninterrupted power to servers, networking gear, and sensitive equipment, keeping your business running when the grid fails.

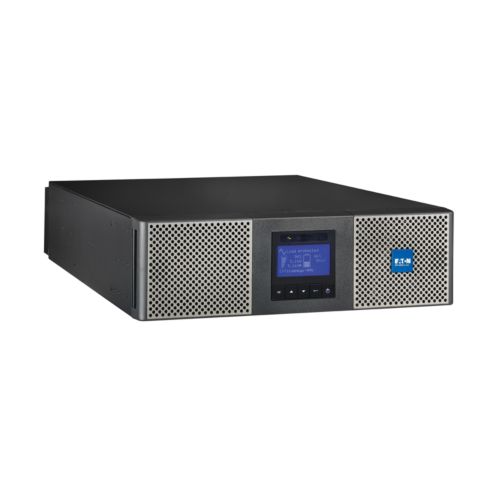

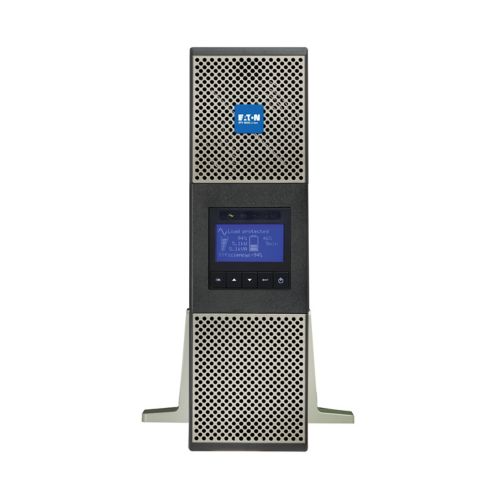

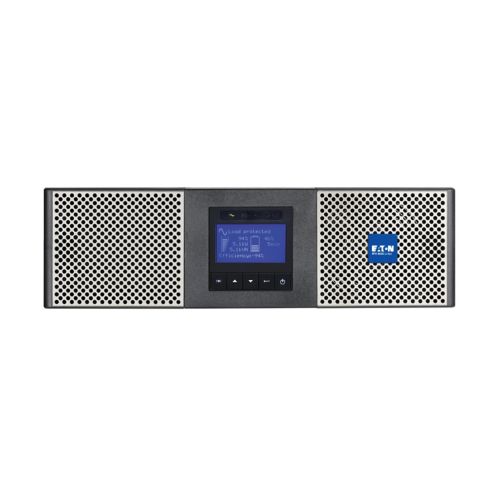

Eaton 9PX 6kVA 208V 3U Rack/Tower Online/Double-conversion UPS
You need protection from voltage spikes, brownouts, and total loss of power. Those problems can corrupt data, damage hardware, and cause costly downtime. This UPS solves the issue with true online double-conversion technology, delivering a steady 208 V output no matter what the input does. It gives you reliable power, real-time monitoring, and hot-swappable batteries so you never have to stop working.
Key Features
- 6 kVA / 5.4 kW capacity at 208 V.
- Online double-conversion topology for zero transfer time.
- Lithium-ion battery management system with hot-swap capability.
- Runtime of 8.7 min at full load, 17.4 min at half load.
- True sine-wave output with ±1 % voltage regulation.
- Five-button graphical display and programmable menu.
- Gigabit Ethernet interface and included network card.
- Compatible with Eaton Intelligent Power Software Suite.
- Noise level below 45 dB at 1 m, suitable for office environments.
- Compliance with FCC Part 15 Class A, CE, and cULus.
- Rack-mount kit and tower support stands included.
- Internal bypass and surge protection for added safety.
Specifications
| Product Name |
Eaton 9PX UPS |
| Catalog Number |
9PX6K-L |
| Product Length/Depth |
28.43 in |
| Product Height |
5.12 in |
| Product Width |
17.32 in |
| Product Weight |
80.25 lb |
| Compliances |
FCC part 15 class A
CE
cULus Listed
|
| Certifications |
RoHS
EN 62040-2:2006
IEC 62040-2
NOM
ICC-ES AC156 OSHPD Seismic certified
|
| Global Catalog |
9PX6K-L |
| Product Type |
UPS |
| Battery |
|
| Battery management |
Lithium-ion Battery Management System (BMS) |
| Battery replacement |
Hot-swappable internal batteries and extended battery modules (EBMs). Replacement battery part # EBP-1801-L (qty 1 per UPS). |
| Battery type |
Lithium-ion |
| Battery Chemistry |
Lithium Iron Phosphate (LiFePo4) |
| Runtime at full load |
8.7 minutes |
| Runtime at half load |
17.4 min |
| Electrical output |
|
| Receptacle |

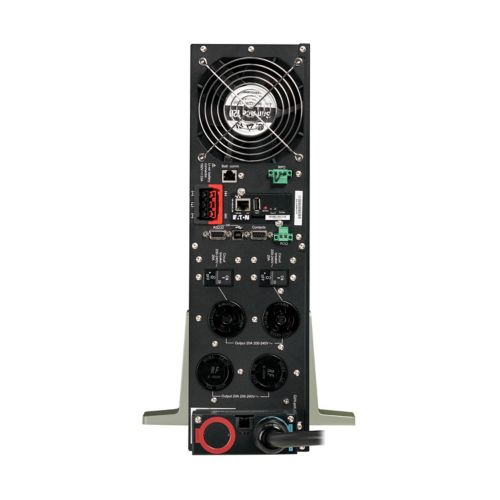

Hardwire, (2) L6-30R, (2) L6-20R |
| Topology |
Online/Double-conversion |
| Wattage |
5400 W |
| VA rating |
6000 VA |
| Output waveform |
True sine wave |
| Voltage |
208 V |
| Output power factor |
0.9 |
| Output nominal voltage |
208V default (200/208/220/230/240V) |
| Nominal Output Voltage |
200V
208V
220V
230V
240V
|
| Output voltage range |
±1% normal mode |
| Output frequency |
50/60 Hz |
| Output Capacity Details |
5200VA / 4600W at 200V Output
5400VA / 4800W at 208V Output
5700VA / 5100W at 220V Output
6000VA / 5300W at 230V Output
6000VA / 5400W at 240V Output |
| Electrical input |
|
| Input connection |
L6-30P |
| Input cord length |
10 ft |
| Input Nominal Voltage |
200 VAC
208 VAC
220 VAC
230 VAC
240 VAC |
| Input Nominal Voltage |
208V default (200/208/220/230/240V) |
| Input voltage range |
200-240V |
| Nominal frequency |
50-60 Hz |
| Input frequency range |
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input power factor |
.99 |
| Communications |
|
| Ethernet interface |
Yes |
| Includes network card |
Yes |
| Software compatibility |
Intelligent Power Software Suite |
| User interface |
Graphical display, 5-button programmable menu |
| Environmental |
|
| Altitude |
<1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| BTU Rating |
Online: 1233 BTU/hr, Battery: 1699 BTU/hr (100% load) |
| Noise level |
<45 dB at 1 meter |
| Relative humidity |
0-95% non-condensing |
| Temperature range |
0° to 40°C (32° to 104°F) |
| Additional specifications |
|
| Rack size |
3U |
| Rack mounting kit |
Yes |
| Efficiency at max. load |
93% |
| Package contents |
6000VA 5400W 208V 9PX Online Double-Conversion UPS
NETWORK-M3 Gigabit network card
USB cable
RS-232 cable
Tower support stands
Cable gland for hardwire connection
Rack-mounting hardware
Quick start guide
|
| Surge protection |
Yes |
| Internal bypass |
Yes |
