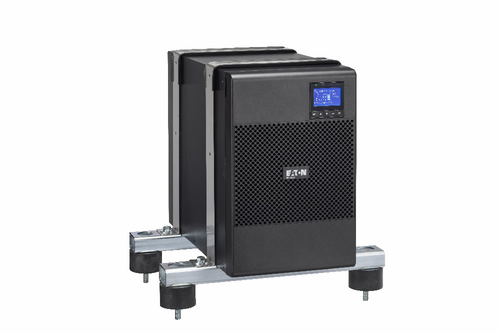

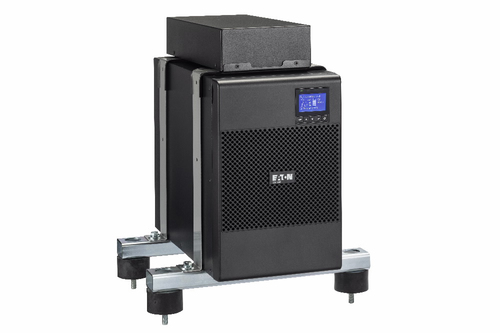

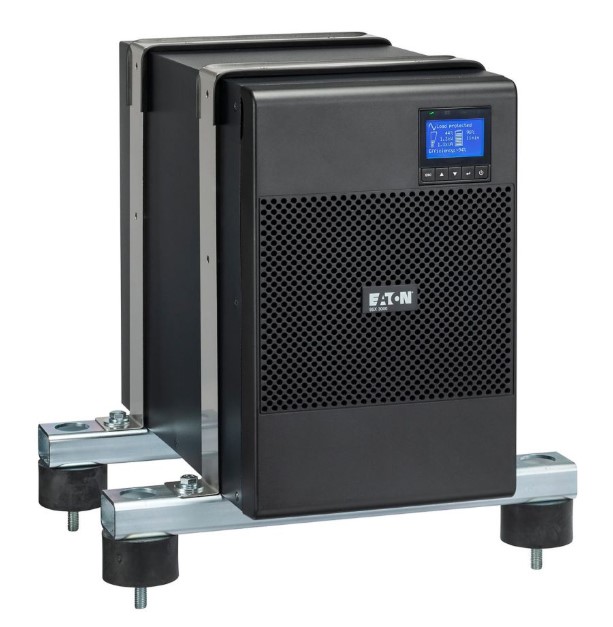

Eaton 9SX Marine 9SX3000IMBS, 230V 3kVA, 2700 W, Tower, Sine Wave Online UPS
The Eaton 9SX3000IMBS is a 3000 VA / 2700 W online double-conversion marine UPS designed to provide continuous power protection. It features a 230 V output, 0.9 output power factor, sine wave output, internal bypass, and extended battery capability. The UPS has 8 C13 and 1 C19 outlets, USB and RS232 connectivity, and a multilingual graphical LCD display.
Key features:
• 3000 VA / 2700 W power capacity
• Online double-conversion topology
• 230 V output
• 0.9 output power factor
• Sine wave output
• (8) C13, (1) C19 receptacles
• Internal bypass
• USB and RS232 communication
Specifications
| SKU |
9SX3000IMBS |
| General specifications |
|
| Product Name |
Eaton 9SX Marine UPS |
| Catalog Number |
9SX3000IMBS |
| Product Length/Depth |
41.2 mm |
| Product Height |
34.6 mm |
| Product Width |
21.4 mm |
| Compliances |
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15Class B
CISPR22 Class B |
| Certifications |
IEC/EN 62040-1
UL 1778 IEC/EN 62040-2
CE
EAC
DNV GL Certified |
| Additional information |
|
| Auto shutdown function |
Yes |
| Color |
Black |
| Construction type |
Free standing model |
| Efficiency at max. load |
92.4 |
| Hot swap power |
No |
| Internal bypass |
Yes |
| Phase (input) |
1 |
| Phase (output) |
1 |
| Rack mounting kit |
No |
| Package contents |
- UPS
- Quickstart guide
- (2) IEC-IEC output cables
- Serial cable
- USB cable
- BS input cord
|
| Battery specifications |
|
| Battery management |
- ABM & Temperature compensated charging method (user selectable)
- Automatic battery test
- Deep discharge protection
- Automatic recognition of external battery units
|
| Battery quantity |
8 |
| Battery rating |
12 V / 9 Ah |
| Battery replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type |
Sealed, lead-acid |
| Extended battery capability |
Yes |
| Runtime graph |
View runtime graph |
| Communication |
|
| Communication |
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote power off
- Mini-terminal block for output relay
- Dry contacts (2 outputs, 1 input, optocoupler, DB9)
|
| Ethernet interface |
No |
| Expansion slots |
One slot for optional communication card |
| Includes network card |
No |
| Potential free switch contact |
Yes |
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface |
Multilingual graphical LCD display |
| Electrical input |
|
| Input connection |
C20 |
| Input cord length |
1.8m |
| Input frequency range |
40-70 Hz |
| Input Nominal Voltage |
230V default |
| Input power factor |
>.99 |
| Input voltage range |
200-276 V (140 V-276 V with derating) |
| Nominal frequency |
50/60 Hz |
| Electrical output |
|
| Feed type |
1 |
| Output nominal voltage |
230V default (200/208/220/230/240V) |
| Output power factor |
0.9 |
| Output voltage range |
200/208/220/230/240 V +/- 2%
|
| Output waveform |
Sine wave |
| Topology |
Online/Double-conversion |
| Receptacle |
(8) C13, (1) C19
|
| VA rating |
3000 VA |
| Voltage |
230V |
| Voltage distortion output (linear load) - max |
3 |
| Wattage |
2700 W |
| Environmental |
|
| Altitude |
3000 m |
| Noise level |
<45 dB at 1 meter |
| Relative humidity |
0-96% non-condensing |
| Temperature range |
0° to 40°C (32° to 104°F) |
