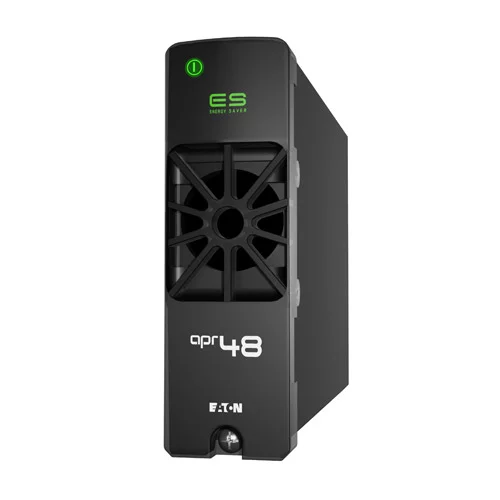

Eaton APR48-ES, 120 V/208-240 V, 2000W Energy Saver Rectifier
Eaton APR48-ES Energy Saver Rectifier is designed for communications network operators who are striving to cut energy costs across the network through greater operating efficiency, and/or to meet aggressive carbon footprint reduction targets. Energy saving efficiency exceeding 96 %, high power density and a standardized design assisting scalability, flexible mounting and universal AC input - all contribute to system solutions to suit your requirements.
Energy saving efficiency
Operating with over 96 % efficiency, Eaton APR48-ES Energy Saver Rectifier puts Eaton DC power systems at the forefront of high efficiency and produces at least 50 % less waste energy than most other modern rectifiers.
More powerful and flexible
Industry leading power density, short depth and flexible mounting options makes Eaton APR48-ES Energy Saver Rectifier well suited to limited space applications such as ETSI and road side cabinets. The rectifier is fully compatible with existing Eaton 3G systems and it is one of the easiest rectifiers to use, with a simple plug-and-go insertion and fast on-line expansion of rectifiers (hot-swap). It operates under a wide range of AC power conditions and in temperatures at up to 70°C (158°F).
Specifications
| Input |
|
| AC Supply |
120 V/208-240 V, 50/60Hz (nominal)
185 – 275 V full output power up to 50°C [122°F]
90 – 185 V reduced output power
|
| Power Factor |
>0.99 (50 – 100 % Output Current) |
| Efficiency |
>96 % peak
>95 % (20 – 100 % output power)
|
| Output |
|
| DC Output Voltage Range |
43 – 57.5 V |
| DC Output (maximum) |
2000 W @ 48 V |
| Environmental |
|
| Operating Temperature Range |
-40°C – +70°C [-40°F – +158°F]
Output power derates above 50°C [122°F] |
| Cooling |
Temperature controlled, variable speed, high reliability fan
fan <50dBA ambient temperature 25°C |
| Certifications |
|
| North America |
UL, FCC Verification, CSA, IC |
| Australia / New Zealand |
C-tick, Telepermit |
