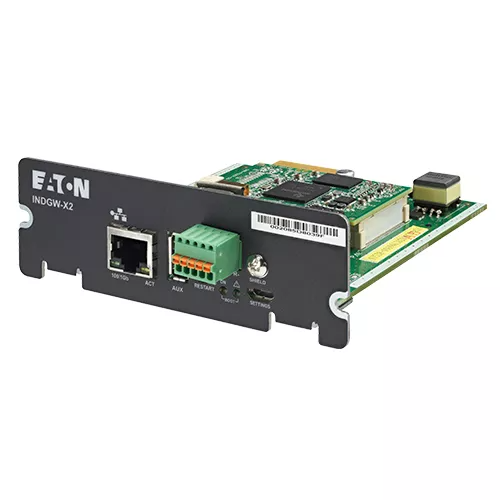

Eaton Gigabit Industrial Gateway X2 Card
Industrial gateway card The Eaton Gigabit Industrial Gateway X2 Card (INDGW-X2) is Eaton’s latest UPS connectivity device that delivers industrial professionals with new and exciting capabilities and features. The first UPS network card to meet both UL 2900-1 and IEC 62443-4-2 cybersecurity standards, the Gigabit Industrial Gateway X2 Card improves power system reliability by providing warnings of pending issues to administrators and helping to perform orderly graceful shutdown of servers and storage. The new network card works with Intelligent Power Manager (IPM) v1.61 (and higher) to improve business continuity by triggering policies configured to keep mission critical applications running in the event of power or environmental anomalies, including virtual machine relocation or automated disaster recovery action.
Details
• Gigabit speed: compatible with better performing, cost effective and widely deployed gigabit network switches
• Compliance with Gigabit only data center networks
• Cybersecurity enhancements for UL 2900-1 and IEC 62443-4-2 certifications, including stronger encryption, configurable password policy and X.509 Public Key Infrastructure
• Real-time clock with battery backup and linkage to NTP (Network Time Protocol) server
• Increased memory for improved operation and larger data storage
• Advanced Management with RESTful API over HTTPS
• Secure SMTP for email alerts
Specifications
| Function |
Web/industrial communications |
| Hardware Compatibility |
BladeUPS, 9155, 9155 Marine, 9355, 9390, 9395, 9395P, 9395C |
| Compatible With |
IPv4/IPv6 TLS 1.2 |
| Catalog Number |
INDGW-X2 |
| Protocol Support |
HTTPS, TLS 1.2, SNMPv1, SNMPv3, NTP, TFTP, SMTP, SMTPS, BOOTP, DHCP, SLAAC, SSH, MQTTS, ModbusTCP, Modbus RTU, BACnet IP, BACnet BBMD |
| UPS Slot Type |
X-Slot |
| Network Support |
Ethernet 10/100/1000BaseT |
| Temperature and Humidity Monitoring |
Yes, with Environmental Monitoring Probe Gen 2 |
| Software Support |
Intelligent Power Manager 1.61 and higher, Intelligent Power Protector 1.61 and higher, any SNMP compliant Network Management System (NMS) |
| Supported MIB |
MIB II, Standard IETF UPS MIB (RFC 1628), Eaton xUPS MIB |
| Supported Browsers |
Chrome and Firefox |
| Local Language Support |
English, French, German, Italian, Spanish, Chinese Simplified, Chinese Traditional, Japanese, Russian |
| Operating Temperature |
32 to 104° F (0 to 40° C) |
| Operating Humidity |
90% RH max. without condensation |
| Power Input |
5 to 12V |
| Current Consumption |
500/1000mA max. depending on UPS |
| Dimensions (H x W x D) |
112 x 38 x 115 mm, 4.4 x 1.5 x 4.5 in. |
