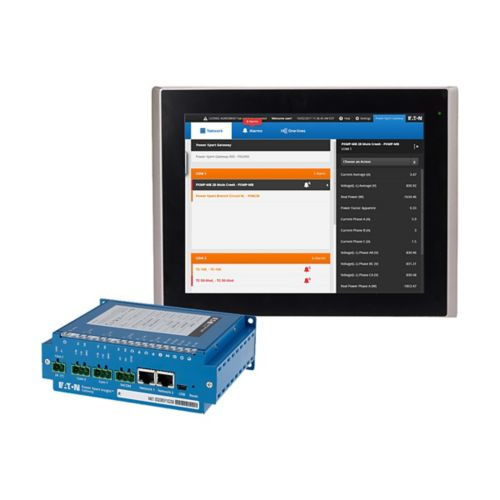

Eaton PXG900-2B Power Xpert Gateway 900 Data Acquisition Gateway

Imagine you could see every voltage change in your plant before a problem becomes a costly shutdown. The Eaton PXG900-2B Power Xpert 900 Data Acquisition Gateway does exactly that. It captures high-accuracy power data from 480 V systems and sends it to your monitoring software. If you have ever missed a subtle drift that later caused equipment failure, this gateway gives you the eyes you need to act early and keep production running.

Eaton PXG900-2B Power Xpert 900 Data Acquisition Gateway

The biggest headache for plant managers is not knowing the health of their power network until a fault occurs. Unnoticed voltage sags, swells, or harmonic distortion can damage motors, reduce efficiency, and lead to unexpected downtime. This gateway solves the problem by delivering real-time, 0.2 % accurate measurements that meet ANSI/IEEE and IEC standards. With the data streamed to your SCADA or cloud platform, you can set alerts, run trends, and make informed decisions that protect assets and lower operating costs.

Benefits

• Early fault detection helps you avoid expensive equipment repairs.
• Accurate data supports compliance reporting and energy audits.
• Remote monitoring reduces the need for on-site visits.
• Easy integration with existing Power Xpert software saves time.
• Robust NEMA 12 enclosure protects the device in harsh industrial environments.

Key Features

• 480 V input rating matches most industrial power systems.
• 0.2 % accuracy certified by ANSI/IEEE C12.20 and IEC 687.
• CE marked and ANSI/IEEE C62.41 compliant for safety.
• PXG900 communication protocol for seamless data transfer.
• NEMA 12 protection guards against dust and water.
• No built-in display, reducing cost and focusing on data export.
• Power supplied directly from 480 Vac, no extra transformer needed.
• Ready for integration with Eaton Power Xpert 900 software suite.
