| Product Name |

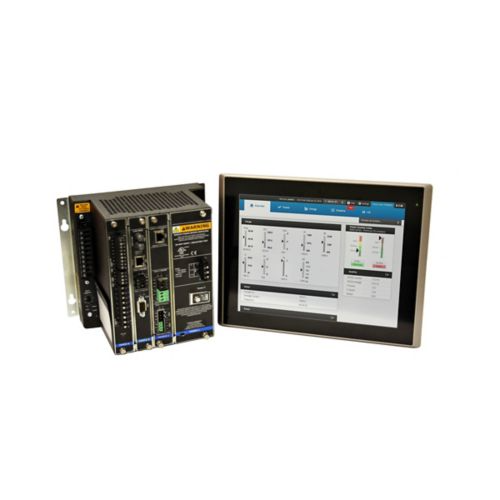

Eaton Power Xpert meter 6000 |
| Compliances |
CFR 47 FCC Part 15, CE Marked |
| Certifications |
EN 61010-1, EN 60687, ANSI/IEEE Std C12.20, UL Listed file 61010-1, IEC 60687, IEC 61326 |
| Product Type |
Power Xpert meter 6000 |
| Special Features |
Includes Com. Exp., I/O Cards |
| Type |
Enhanced power quality |
| Memory |
4 GB |
| Power Supply Voltage |
100-240 V, 110-250 Vdc |
| %Thd - Current and Voltage |
To 127th |
| Individual Harmonics Magnitude |
To 85th |
| Waveform Capture Sampling Rate |
4096 Oversampling/cycle |
| ANSI % Revenue Accuracy |
C12.20 (0.2) |
| Current Sensor Input |
5A |
| Instrumentation |
Current & Voltage - 3 Phase Average, Neutral Current, Wh --Net, Wh --Positive & Negative, Watt Demand, Vah, Vars, Current & Voltage - % Phase Unbalance - EVENT SETTING ONLY, Current Demand, Apparent Power Factor, View current & voltage phasors on display, Demand Metering, Displacement Power Factor, Varh, Frequency, Current & Voltage - Per Phase, Per Phase Power Factor, Watts, Va, Voltage Neutral-Ground, 4 Quadrant Energy, Current & Voltage - 3 Phase Min, Max, Va demand, Time Of Use Energy, Ground Current |
| Power Quality Analysis |
Number Of 9'S Availability, SEMI F47, ITIC Performance Curve, K-Factor, View Harmonic Spectrum At Device, PQ Index Graph -Enhanced, Crest Factor, Flicker |
| Waveform Analysis |
Comtrade - Standard IEEE File Format, Waveform Captured On Threshold / Input, Captured Waveforms Displayed on Meter/GUI, Excess Dv/Dt Or Interruption Capture Trigger, Voltage Disturbance Wave Capture Trigger, Waveform recording duration - 60 cycles |
| Logging |
Audible Alarm, Data Logging, Min/Max Log, Time / date stamp, Event Log, Email on alarm, LED alarm indicator |
| I/O Capability |
KYZ output, Prog. Pulse Output --Wh, Varh, Vah, Programmable Discrete Inputs - 8, Synchronize Demand Window Pulse Input, Voltage Disturbance Trip, Programmable Relay Outputs -5, Load Shedding |
| Communications |
1 x Local Ethernet Port for configuration, Fiber-optic Ethernet Port, 1xRS-485, Internet/HTTP Server built-in, Email (SMTP), BACnet/IP, File Transfer Protocol (FTP) built-in, 10/100 RJ-45 Ethernet Port, Simple Network Management Protocol (SNMP), Modbus RTU (RS-485) :2nd, Network Time Protocol (NTP), Modbus TCP |
| Modification 1 |
Standard communications module with RS-485 |
| Modification 2 |
Communications expansion card with 10/100 Base-T, 100F, RS-485, RS-232 ports |
| Modification 3 |
I/O option card (8 digital inputs, 2 solid state outputs, 3 relay outputs) |
