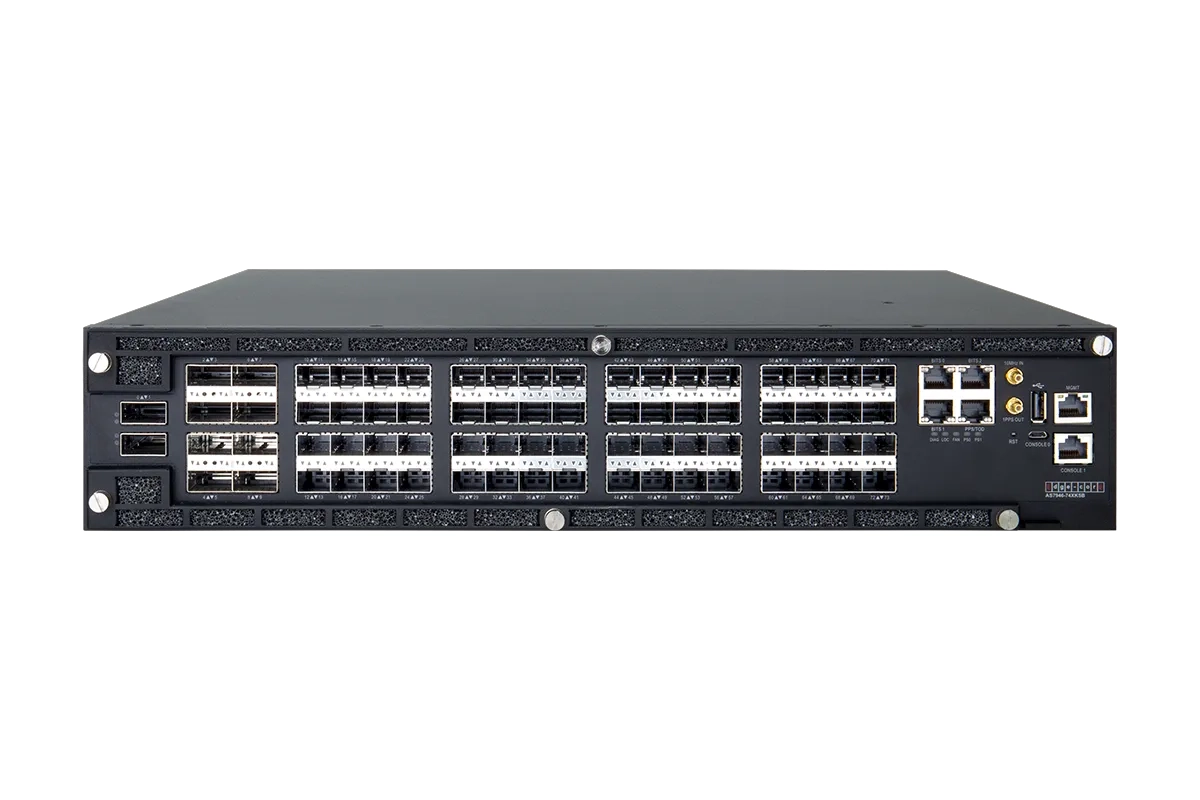

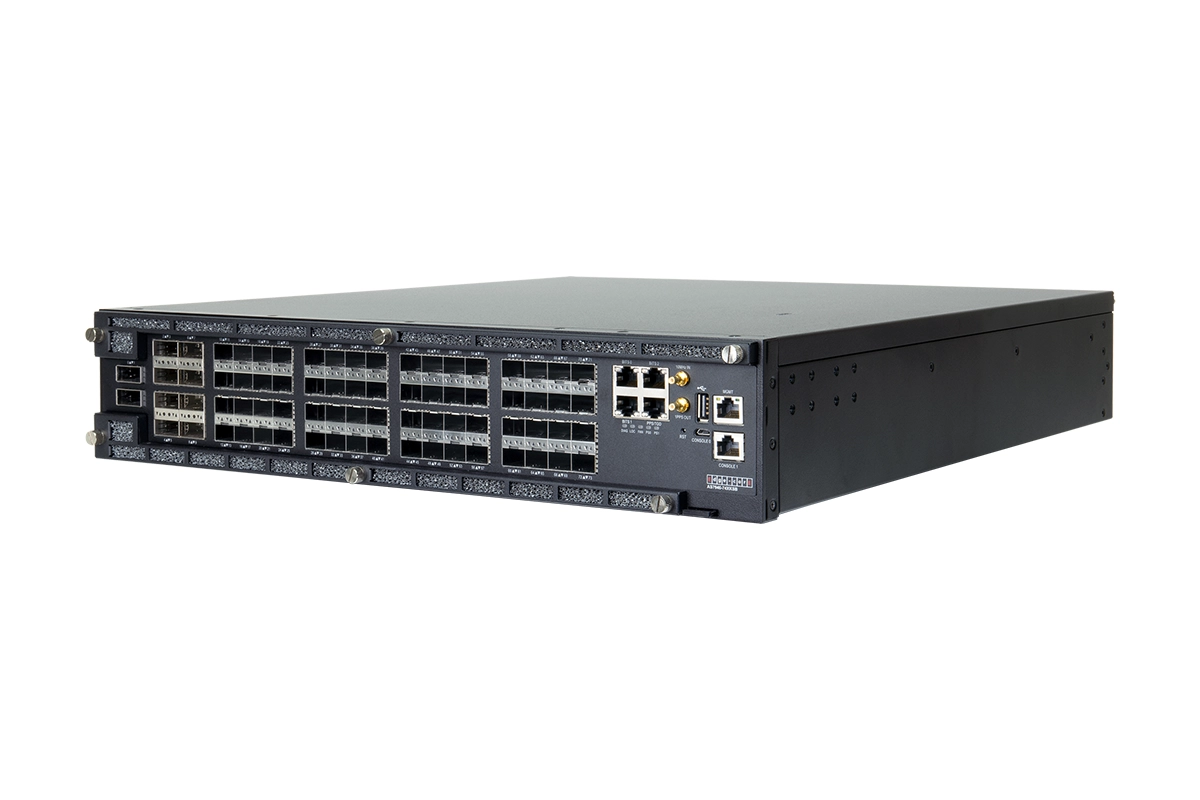

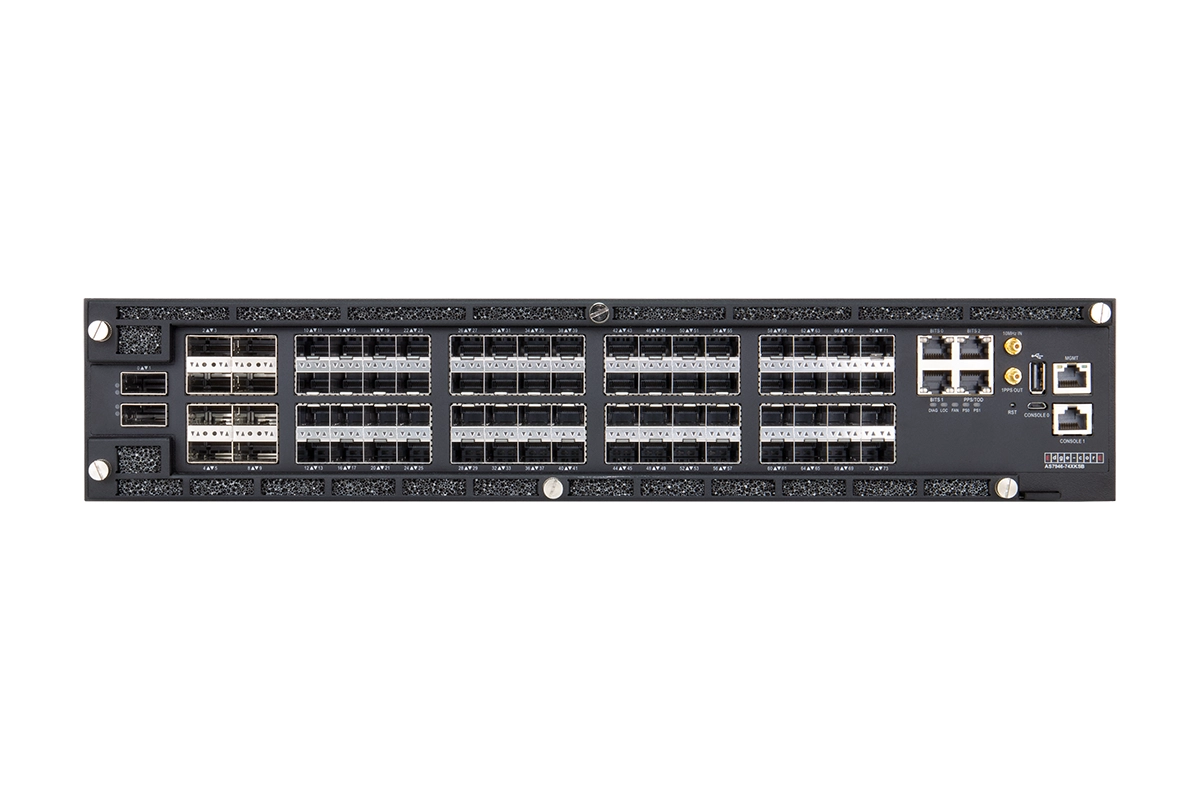

Edgecore AGR420 AS7946-74XKSB 10G/25G 2.4T Aggregation Router
The Edgecore AGR420 AS7946-74XKSB is a high-capacity 10G/25G aggregation router designed for demanding network aggregation and high-speed connectivity environments. It provides 64 x 10G/25G SFP28 ports, 8 x 100G QSFP28 ports, and 2 x 100G QSFP-DD ports, delivering a flexible platform for enterprise, data center, telecom, and service provider networks.
The router supports 1GE, 10G, 40GE, and 100GE modes and provides standard 1GE, 10GE, 25GE, and 50GE configurations through DAC breakout cables. This allows network operators to adapt port configurations to different connectivity requirements while maintaining high-density aggregation in a compact 2RU chassis.
The AGR420 uses Broadcom BCM88820 Qumran-2C switch silicon with Broadcom BCM16K external TCAM and an Intel Xeon D-1548 8-Core processor. It includes 32GB DDR4 SO-DIMM memory, redundant SPI boot flash, a 128GB M.2 SSD, and an ASPEED AST2600 BMC for system management and monitoring.
Timing connectivity is provided through three RJ45 T12 or E12 input/output ports, an RJ45 ToD/PPS port, an SMB 1PPS output, and an SMB 10MHz input. These timing interfaces make the router suitable for network deployments where accurate synchronization and timing distribution are required.

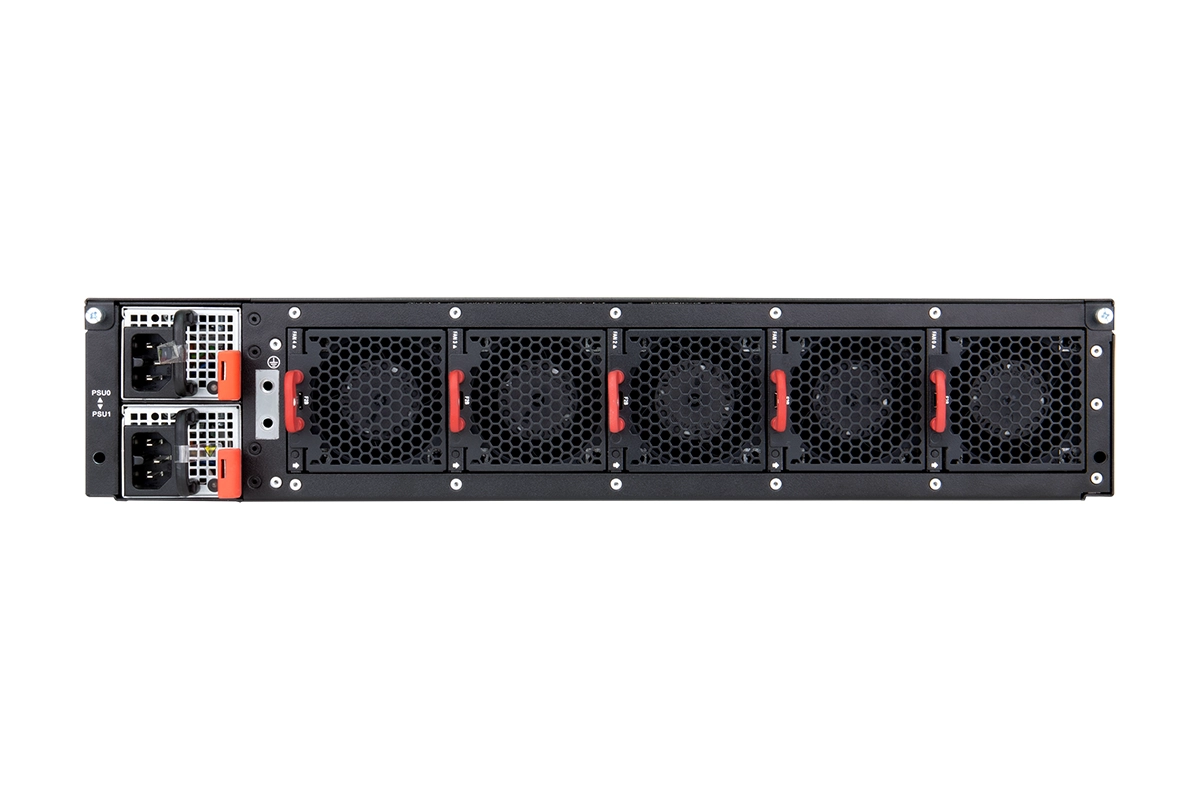

With 2.4 Tb/s capacity, hot-swappable 4+1 redundant fans, and AC or DC power input options, the AGR420 is designed for high-throughput aggregation environments. Its 2RU form factor, 16 kg weight with PSUs and fans, and operating range of 0°C to 45°C support installation in standard rack-based network infrastructure.
Key Features
-
64 x 10G/25G SFP28 ports for high-density aggregation
-
8 x 100G QSFP28 ports and 2 x 100G QSFP-DD ports
-
Supports 1GE, 10G, 40GE and 100GE modes
-
2.4 Tb/s switching capacity
-
Supports DAC breakout configurations for 1GE, 10GE, 25GE and 50GE
-
Intel Xeon D-1548 8-Core processor with 32GB DDR4 memory
-
Broadcom BCM88820 Qumran-2C with external BCM16K TCAM
-
Hot-swappable 4+1 redundant fans with AC/DC power options
SPECIFICATION
| PORTS |
|
| Switch Ports |
64 x 10G/25G SFP28 |
| Switch Ports |
8 x 100G QSFP28 |
| Switch Ports |
2 x 100G QSFP-DD (support high power 100G optics only) |
| Supported Modes |
Support 1GE, 10G, 40GE and 100GE modes |
| DAC Breakout |
Support standard 1GE, 10GE, 25GE, 50GE configurations by using DAC breakout
cables into 2x50GE, 4x25GE, or 4x10GE
|
| MANAGEMENT PORTS |
|
| Management Ports |
1 x RJ-45 Console Port |
| Management Ports |
1 x RJ-45 10/100/1000BASE-T Management Port |
| Management Ports |
1 x USB (storage) |
| Management Ports |
1 x Micro USB Console Port |
| SUPPORTED TRANSCEIVERS AND CABLES |
|
| Supported Transceivers and Cables |
1000BASE-EX/ZX |
| Supported Transceivers and Cables |
10GBASE-SR/LR/ER/ZR |
| Supported Transceivers and Cables |
100GBASE-SR4/LR4/ER4/ZR4/PSM4-2 |
| TIMING |
|
| Timing |
3 x RJ45 (T12 or E12 input/output) |
| Timing |
1 x RJ45 ToD/PPS |
| Timing |
1 x SMB (1PPS out) |
| Timing |
1 x SMB (10MHz input) |
| KEY COMPONENTS |
|
| Switch Silicon |
Broadcom BCM88820 Qumran-2C |
| External TCAM |
Broadcom BCM16K |
| Processor |
Intel® Xeon® D-1548 8-Core |
| SDRAM |
DDR4 SO-DIMM 32GB (16 GB x 2) |
| SPI Boot Flash |
Redundant (2 x 16 MB) |
| SSD |
M.2 128GB |
| BMC |
ASPEED AST2600 |
| PERFORMANCE |
|
| Capacity |
2.4 Tb/s |
| PHYSICAL AND ENVIRONMENTAL |
|
| Dimensions (WxDxH) |
440 mm x 480 mm x 87 mm (2RU) |
| Weight |
16 Kg with PSUs and Fans |
| Fans |
Hot-swappable 4+1 redundant fans |
| Operating Temperature/Humidity |
0°C to 45°C (32°F ~ 113°F)/5% to 85% |
| PSU |
|
| AC Input |
100V-120V, 12 A, per PS |
| AC Input |
200V-240V, 7.5 A, per PS |
| POWER CONSUMPTION |
|
| Max |
692 W |
| Typical |
201 W |
