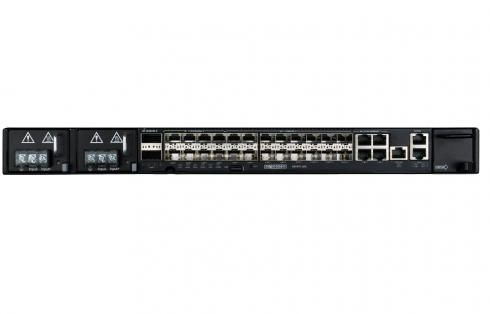

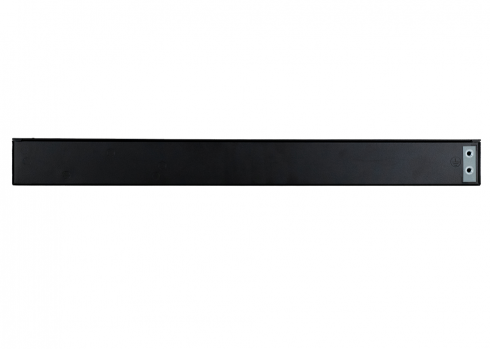

EdgeCore CSR300 AS7315-30X Intel Atom C3508 Open Cell Site Gateway Router
The EdgeCore CSR300 AS7315-30X is an open cell site gateway router designed for high-capacity telecom, mobile backhaul, and network aggregation deployments. It combines 1G, 10G, 25G, 40G, and 100G connectivity in a high-density platform, providing flexible interfaces for demanding service provider and cellular network environments.
Powered by an Intel Atom C3508 4-Core processor with 16GB DDR4-2400 memory, the CSR300 uses the Broadcom BCM88470 Qumran-AX switch silicon for high-throughput packet forwarding. It delivers 300 Gbps bidirectional switching capacity and a 300 Mpps packet processing rate, supporting large volumes of network traffic across multiple interfaces.
The router provides four 1G RJ45 ports, 16 SFP+ ports, eight SFP28 ports, and two QSFP28 ports. The QSFP28 interfaces can support 40/100GbE, breakout configurations for 10/25GbE, or 50GbE, allowing the platform to serve both access and high-speed aggregation requirements.
Dedicated management and timing interfaces include an RJ45 serial console, 1000BASE-T management Ethernet, USB storage, PPS input/output, and TOD input. A Stratum 3E compliant OCXO provides timing support, while the M.2 32GB SSD provides onboard storage for the system platform.
The CSR300 is built for telecom environments with an operating temperature range of -40°C to +65°C and 5% to 95% relative humidity. Its 440 × 300 × 44 mm chassis supports standard 19”, 21”, 23”, and ETSI 600 mm racks or cabinets as well as OCP 21-inch open racks, making it suitable for cell site gateways, mobile aggregation, carrier networks, and high-density edge deployments.
Key features
-
Intel Atom C3508 4-Core processor with 16GB DDR4-2400 memory
-
300 Gbps bidirectional switching capacity
-
300 Mpps packet processing rate
-
16 × SFP+ ports supporting 1GbE or 10GbE
-
8 × SFP28 ports supporting 1GbE, 10GbE or 25GbE
-
2 × QSFP28 ports supporting up to 100GbE
-
Broadcom BCM88470 Qumran-AX switch silicon
-
Stratum 3E compliant OCXO for timing applications
SPECIFICATION
| PORTS |
|
| Switch Ports |
4 x 1G RJ45
16 x SFP+ (each supporting 10 GbE or 1 GbE)
8 x SFP28 (each supporting 1GbE, 10 GbE or 25 GbE)
2 x 100G QSFP28 (each supporting 1 x 40/100 GbE or 4 x 10/25 GbE or 2 x 50 GbE) |
| Management Ports on Front Panel |
1 x RJ-45 serial console
1 x RJ-45 1000BASE-T management Ethernet port (MGMT)
1 x USB (storage) |
| Clocking and Timing ports |
Pulse-per-Second (PPS) input and output
Time-of-Day (TOD) input |
| KEY COMPONENTS |
|
| Switch Silicon |
Broadcom BCM88470 Qumran-AX |
| CPU module |
Processor: Intel® Atom C3508 4-Core
Memory: 16G RAM DDR4-2400 |
| Oscillator |
Stratum 3E compliant oscillator (OCXO) |
| Storage |
SSD M.2, 32 Gbytes |
| PERFORMANCE |
|
| Switching Capacity |
300 Gbps bidirectional switching capacity |
| Processing Rate |
300 Mpps packet processing rate |
| PHYSICAL AND ENVIRONMENTAL |
|
| Dimensions (WxDxH) |
440 x 300 x 44 mm (17.32 x 11.81 x 1.73 in) |
| Weight |
5.35 kg (11.79 lb), with two installed PSUs |
| Rack Installation |
Installations to standard 19”, 21”, 23”, and ETSI 600 mm racks or cabinets as well as OCP
21 inch open racks
|
| PSU |
|
| DC Input |
36V -72V, 10 A |
| AC Input |
100V-240V, 5 A |
| Power Capacity |
223 W( Maximum) |
| ENVIRONMENTAL |
|
| Usage Altitude |
60 m below sea level (106 kPa air pressure) to 3000 m (70 kPa) |
| Storage |
IEC60068-2-14
Temperature: -40°C to 70°C (-40°F to 158°F) |
| Transportation |
ETSI EN 300 019-1-2 Class 2.3
Temperature: -40°C to +70°C (-40°F to +158°F) |
| Operating Conditions |
[ETSI EN 300 019-1-3] Class 3.2
Temperature range: -40°C to +65°C (-40°F to 149°F)
Relative humidity: 5% to 95% |
| EU Directives |
The product complies with the current version of the following EU directives:
RoHS
WEEE
REACH |
