Tired of blurry video calls and missing details when you teach or present online? The EDIS V800 Full HD PTZ Video Conference Camera gives you crystal-clear images, smooth motion, and automatic tracking so every word is seen and heard. If you have struggled with static cameras that cannot follow a speaker, this camera solves that problem and makes remote communication feel natural.

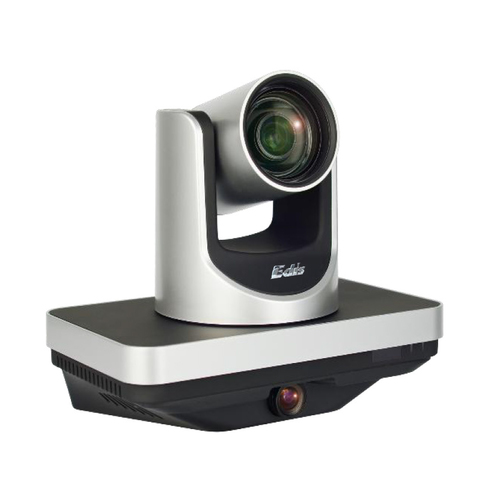

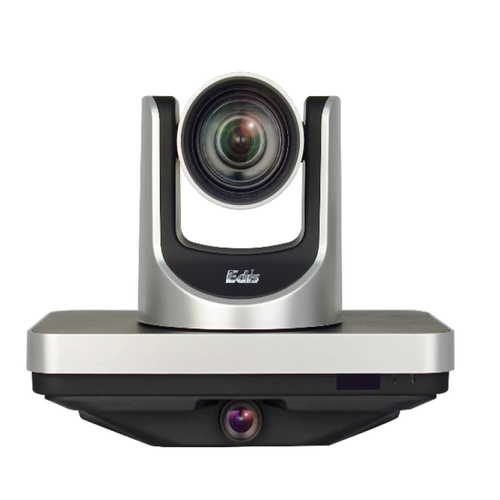

EDIS V800 Full HD PTZ Video Conference Camera 1920x1080 60fps 12x 16x Zoom
Many classrooms and meeting rooms use fixed webcams that capture only a narrow view. The result is a disengaged audience and a teacher who has to stay in one spot. This matters because poor video quality reduces learning and weakens collaboration. The V800 solves it with a 72.5 wide-angle lens, 12 optical zoom, and smart tracking that follows the speaker wherever they move, delivering smooth, high-definition video for every participant.
Benefits
- Full HD 1080p at 60 fps makes text and faces look sharp.
- 12 optical and 16 digital zoom lets you focus on details without losing quality.
- Automatic teacher tracking keeps the speaker centered, freeing them to move.
- Multiple output options (HDMI, 3G-SDI, USB) fit any existing system.
- Low light performance (0.5 lx) works in dim rooms without extra lights.
Usages
The V800 is perfect for modern classrooms where teachers need to show boards, demos, and themselves at the same time. It also works in corporate boardrooms for presentations that require close-up detail of documents or product samples. Large meeting halls and places of worship benefit from the wide field of view and smooth pan-tilt-zoom, allowing a single camera to capture the whole audience and the speaker. Anywhere you need reliable, high-quality video, the V800 delivers.
Key Features
- 72.5 horizontal field of view for broad coverage.
- 12 optical zoom and 16 digital zoom for flexible framing.
- 55 dB signal-to-noise ratio ensures clean audio-visual output.
- CMOS 2.07 MP sensor captures detailed images.
- Supports H.264 and M-JPEG video formats.
- Two Ethernet (RJ-45) ports enable stable network streaming.
- Built-in microphone input for synchronized sound.
- RS-232, RS-485, and USB 2.0 ports for easy integration.
- Power supply 12 V DC, 0.5 A for low energy use.
- Compact size (200 mm 144 mm 240 mm) and 2 kg weight for simple mounting.
Specifications
| Camera |
| Aperture range (F-F) |
1.8 - 2.8 |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Minimum illumination |
0.5 lx |
| Horizontal field of view |
72.5° |
| Focal length range |
3.5 - 42.3 mm |
| Digital zoom |
16x |
| Optical zoom |
12x |
| Effective sensor resolution |
2.07 MP |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Video |
| Video formats supported |
H.264, M-JPEG |
| Supported video modes |
240p, 360p, 480p, 540p, 720p, 1080p |
| HD type |
Full HD |
| Maximum frame rate |
60 fps |
| Maximum video resolution |
1920 x 1080 pixels |
| Design |
| Product colour |
Black, Grey |
| Ports & interfaces |
| Microphone in |
Yes |
| 3G-SDI output |
Yes |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-485 ports |
1 |
| RS-232 output ports |
2 |
| RS-232 input ports |
1 |
| RS-232 ports |
3 |
| USB 2.0 ports quantity |
1 |
| HDMI version |
1.3 |
| HDMI ports quantity |
1 |
| Power |
| Input current |
0.5 A |
| DC input voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
-10 - 40 °C |
| Weight & dimensions |
| Weight |
2 kg |
| Height |
200 mm |
| Depth |
144 mm |
| Width |
240 mm |
