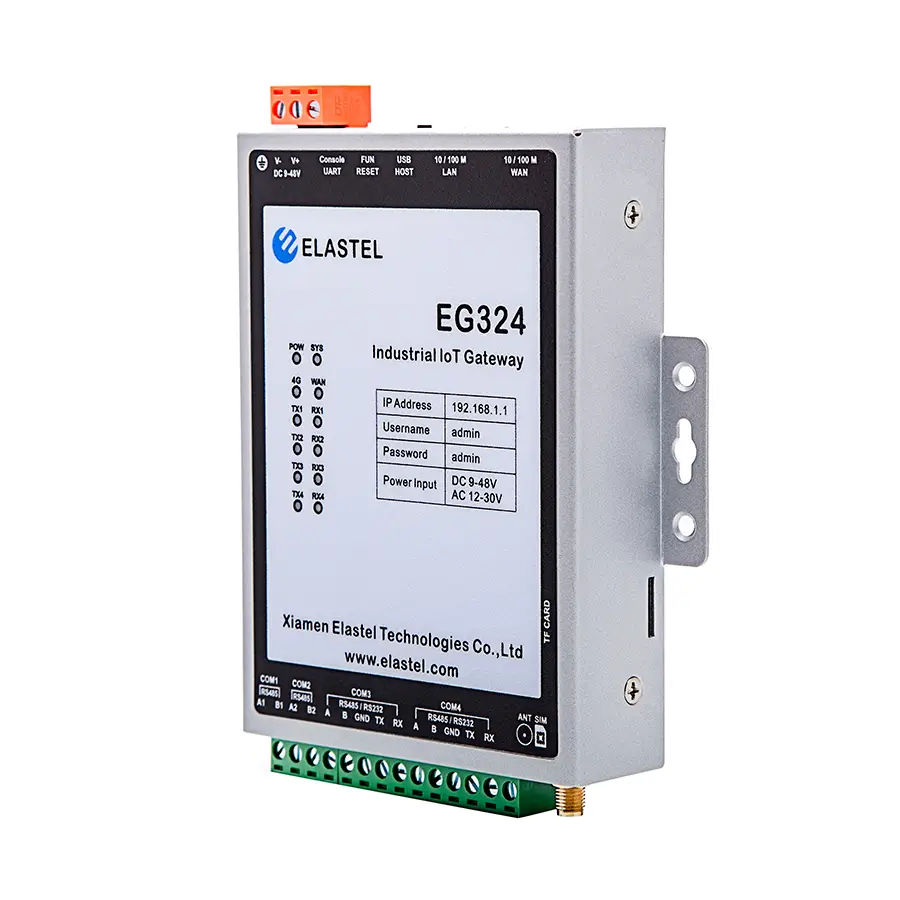

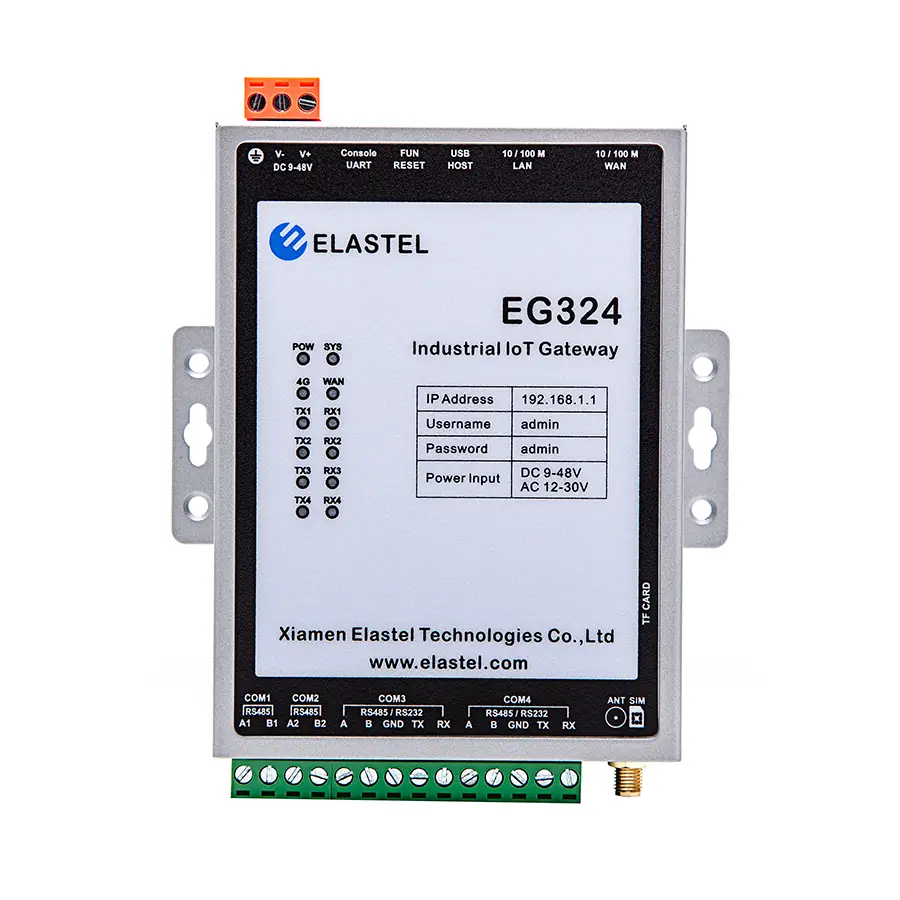

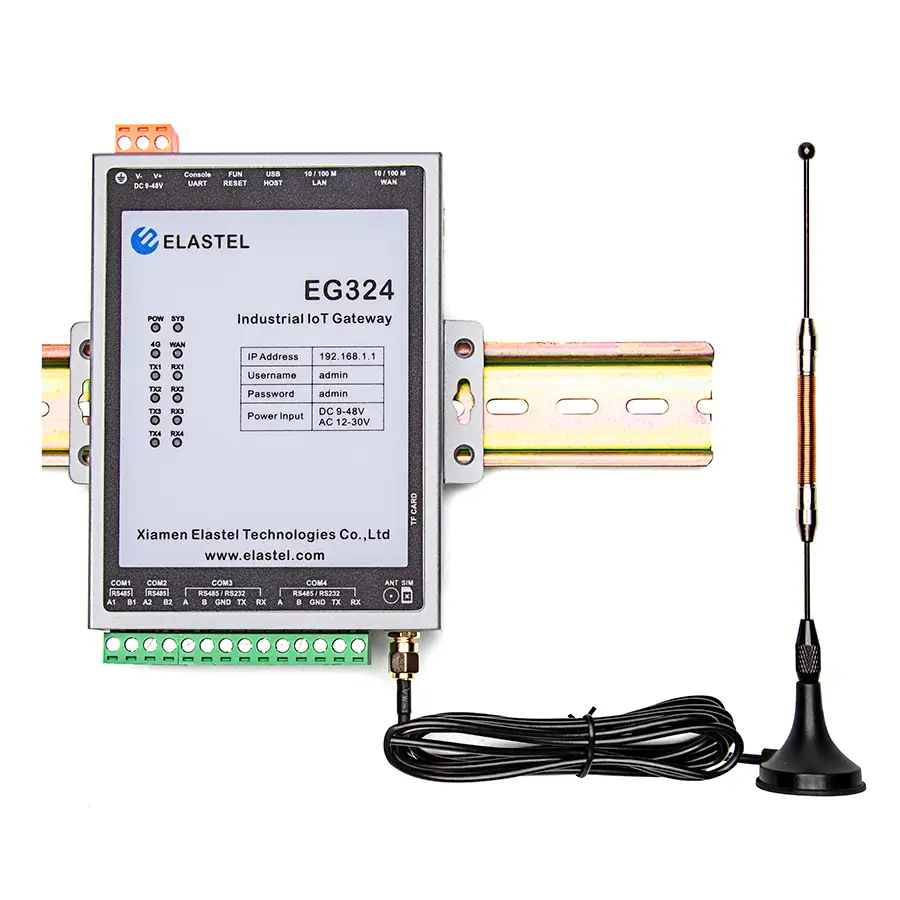

Elastel EG324 IoT Gateway, Armv7 Cortex-A9 quad-core, 512MB RAM 8GB eMMC
Elastel EG324 IoT Gateway, Armv7 Cortex-A9 quad-core, 512MB RAM 8GB eMMC
Elastel EG324 IoT Gateway, Armv7 Cortex-A9 quad-core, 512MB RAM 8GB eMMC
Elastel EG324 IoT Gateway, Armv7 Cortex-A9 quad-core, 512MB RAM 8GB eMMC

Elastel EG324 IoT Gateway, Armv7 Cortex-A9 quad-core, 512MB RAM 8GB eMMC

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: GTWY-035

MPN #: EG324

Elastel EG324 is an ARM-based embedded computer engineered as an Industrial IoT gateway.

  •  Armv7 Cortex-A9 quad-core @1.4 GHz CPU, 512MB RAM + 8GB eMMC
  •  Rich industrial interfaces for flexible connectivity
  •  Truly Open and Programmable OS. Prebuilt ElastPro for OT-to-IT
  •  Industrial-grade design for Reliability, CE FCC… certified



Description


Elastel EG324 is a high-performance industrial computer powered by ARM Cortex-A9, typically used as an industrial IoT gateway.

It features 4x RS485/232 COM ports, 2xEthernet ports, and integrated a miniPCIe socket for 4G LTE/3G/2G/NBIoT and Wi-Fi connectivity.

With full Industrial-grade design, ensures this compact embedded computer reliable operation in harsh environments, including wide temperature (-40°C to +85°C), resistant to EMI, surge. It complies with CE, FCC, RoHS... certifications.



Preloaded with Ubuntu OS and ElastPro software, it provides an open and programmable platform for rapid develop your IIoT applications such as data acquisition, remote monitoring, and edge computing.




 Designed for Industrial Applications



  • High-performance Arm Cortex-A9 quad-core @1.4 GHz, 512MB (1GB optional) RAM, 8GB eMMC
  • Equipped with 4× RS485/RS232 COM ports, 2× ETH ports, USB, TF slot for industrial connectivity
  • Integrated miniPCIe socket supporting 4G LTE / 3G / 2G / NB-IoT and Wi-Fi network
  • Industrial-grade design: -40°C to +85°C, resistant to EMI, surge, durable, compact, DIN-rail enclosure
  • Fully compliant with CE, FCC, RoHS... certifications




💻 Open Linux OS for Flexible Development



  • Preloaded with Ubuntu 20.04 OS, truly open, configurable and programmable
  • Support Node-Red, Docker, MQTT, and other open source software.
  • Easily integrate with 3rd-party platforms like Azure, AWS, Ignition, CodeSys, etc.
  • Programmable in Python, C/C++, C#, Go, Java, JavaScript.



⚙️ ElastPro: Built-in IIoT Gateway Applications



  • Free to use, with OTA updates, backed by Elastel 10+ years of OT-to-IT experience
  • Web-based tools for easy device management and network configuration
  • Zero-code visible configuration for edge data collect and protocol conversion
  • Enables secure remote access via ThingsWing Zero-Trust-Networking system.





Specifications:
CPU Armv7 Quad-core Cortex-A9 @1.4 GHz
RAM 512MB DDR3 (1GB optional)
Storage 8 GB eMMC
Storage Expansion 1x TF Slot
Serial Port (Isolated) 2 x RS485 + 2 x RS-232/485
Ethernet Port 2 x 10/100 Mbps ports (RJ45 connector)
Wireless Module Slot 1 x mPCle slot for Cellular or Wi-Fi module
Antenna Connector 1x SMA Female connector for Cellular or Wi-Fi antenna
SIM Solt 1x Micro SIM (12mm*15mm)
USB Port 1x USB 2.0, support USB peripherals (like WiFi adaptor)
Console Port 1 x UART type-C connector
Button 1x button for Reboot and Reset
Power Supply 9 ~ 48 VDC, 12 ~ 30 VAC
LED Indicator Power x 1, System x 1, Cellular WAN x 1, WAN x 1, COM trans x 8 (TX + RX)
Dimension (LxWxH) 128.8mm x 117mm x 28mm (LxWxH)
Weight 470 g (1.04 lb)
Operating Temperature Industrial-grade -40 to 85°C (-40 to 185°F)
Pre-installed OS Ubuntu core 20.04, easy Configurable and Programmable
OT-to-IT Data Collect and Convert Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP
  IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols,
  MQTT, Sparkplug B... Powered by ElastPro
Secondary Development Docker, Node-Red, Python, C, C++, C#, Go,
  Java, JavaScript.
