| Hardware platform |
|
| CPU |
Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
| Memory |
2GB (1GB/4GB/8GB optional) LPDDR4 |
| FLASH |
8GB (16GB/32GB optional) eMMC |
| Network & Interfaces |
|
| Ethernet |
Gigabit Ethernet x 1, (1-WAN or 1-LAN Configurable) |
| Cellular |
4G LTE / 3G / 2G / NB-IoT / CAT-M1 |
| Wi-Fi |
Dual-band 2.4GHz/5GHz 802.11b/g/n |
| Bluetooth |
Supported |
| GPS |
Cellular Module built-in supported (Optional) |
| SIM |
1.8 V/3 V; drawer-type Nano card holder × 1 |
| 15KV ESD Protection |
|

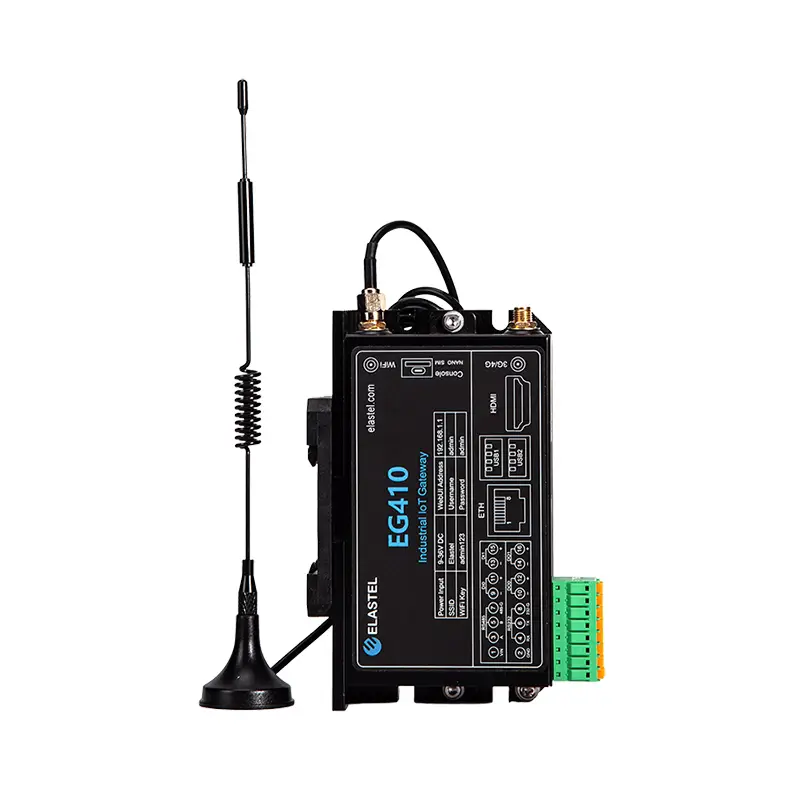

| Antenna |
4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1 |
| Industrial Serial Port |
RS-232 x 1，RS-485 x 1; |
| Industrial Serial Port |
RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND; ESD protection: 15KV |
| I/O |
2-channel digital input DI |
| I/O |
2-channel digital/pulse output DO |
| USB |
USB 2.0 x 2 for peripherals, |
| USB |
USB-C x 1 for Power supply and Console |
| HDMI |
HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
| Additional drive |
1 x M.2 socket with 2242 NVME SSD support |
| Standalone Watchdog timer |
|
| Power |
|
| Power supply |
Wide Range Voltages 9~36V DC/1A |
| Power Terminal |
Unpluggable industrial terminal connection |
| Power consumption |
Less than 10 W (system) |
| (Optional) Real-time clock (RTC) |
Embedded RTC, power supply with a supercapacitor |
| Mechanical features |
|
| Protection |
IP30 |
| Housing |
Aluminum Heatsink |
| Cooling |
Fanless cooling |
| Dimensions (cm) |
124mm x 76mm x 35mm |
| Installation |
DIN-rail, wall mounting |
| Ambient temperature and humidity |
|
| Storage temperature |
-30 ~ 75°C |
| Ambient humidity |
5 ~ 95% (non-condensing) |
| Operating temperature |
-25 ~ 70°C (industrial grade) |
| EMC index |
|
| Static electricity |
level 3 |
| Radiated electric field |
level 3 |
| Surge |
level 3 |
| Others |
|
| Certification |
CE |
| Warranty |
Standard 12 Months |
| Software Features |
|
| OS |
Raspbian with SDK /OpenWRT V21 |
| Configuration |
WebUI, Local CLI, Remote configuration |
| Upgrade operate |
Local USB upgrade and remote upgrade (optional) |
| Timed startup and shutdown |
Supported |
| Application features |
Data Acquisition, Modbus RTU, VPN, Router, Firewall, Media Player… |
| Application features |
Python, Node-RED, Docker…, Support Secondary Development. |
| Application features |
OpenVPN, L2TP, PPTP, IPSec, WireGuard VPN, ZeroTier… |
| Network Features |
WWAN and WAN Failover, Load Balance, |
| Network Features |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, |
| Network Features |
DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, |
| Network Features |
Modbus RTU/TCP, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH |
